V-SFT

Fuji Electric’s Monitouch V-SFT Configuration Software offers enhanced operability and convenient screen configuration tools to allow for easy viewing of HMI displays, graphic indication of system configuration and enhanced search functionality.  This software is compatible with all Fuji Electric HMIs, featuring new capabilities such as scheduled HMI activities, customized splash screen, PDF document viewer, video player, scrolling alarm messages, 10 pop-up windows with transparency, and the ability to create screens larger than the current 1:1 format.


Request Info   Find Local Sales   Subscribe to Mailing List

*To Download the Latest Version of V-SFT Configuration Software Click HERE
NOTE: You must first register as a Member prior to downloading the V-SFT software. Registration is free and simple.

Configuration of Easy-to-view Screens

The number of picture icons has been increased, and the icons with plain design have been added. Pick from the wide range of ready-made icons for sophisticated representation.

 img01_01

Simple icons added
Popular simple icons that are used widely on smartphones have been introduced.

img01_02

Increased picture icons
The number of the picture icons has been increased.

img01_03


Requirements

PC PC⁄AT compatible machine with Windows
OS Windows XP/XP64 Edition/ Windows Vista (32bit,64bit)/
Windows 7 (32bit,64bit)/ Windows 8 (32bit,64bit)/
Windows 8.1 (32bit,64bit)/ Windows 10 (32bit,64bit)
CPU Pentium4 2.0GHz or higher is recommended.
Memory 1GB or more
Hard disk For installation:2.0GB or more availlable space
Disk drive DVD-ROM drive
Display Resolution 1024×768(XGA) or higher
Color indication High Color (16bit) or higher
Others Microsoft .NET Framework 4.0 or 4.5
(If a PC does not have .NET Framework 4.0 or 4.5, Framework 4.0 will automatically be installed on the PC.)

Upgraded Operability

Ribbon Menu
The ribbon-shaped menu bar is available. Enlarged icons are easily visible also improves the operability remarkably.

img02_01


Ladder Diagram for Interlock
Interlocking operations can be set on the ladder diagram, which makes it easy to grasp the settings and set multiple conditions.

img02_02
Graphic Indication of System Configuration
The improved hardware setting screen makes it easy to grasp exactly how devices are connected together in the system.

img02_03

Docking Windows
The project view windows and item view windows can be docked or floated easily.

img02_04

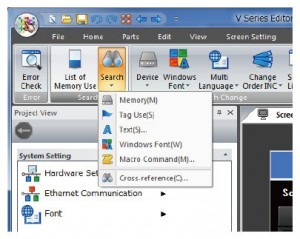

Integration of Search menu
The search menu, which used to be displayed separately, have now been integrated for easy operation.

img02_05
