VFZ Series Ring Compressors

The VFZ Series are single-stage ring compressors with a maximum pressure of 139 in. H2O, a maximum vacuum of 110 in. H2O and a maximum capacity of 570 SCFM. Motors are direct drive from 1 HP to 15 HP. Voltages are available in 115 single phase, 230 single phase, 230/460 3-phase dependent upon motor size. All units are provided with threaded flanges.


Request Info   Find Local Sales   Subscribe to Mailing List

fe_products-dri-sq-bannerBrochures & Catalogs:



Spanish Language Download Brochure:

VFZ401A-5W
  • Maximum Pressure: 58
  • Maximum Vacuum: 52
  • Maximum Airflow Pressure: 89
  • Download Brochure
VFZ401A-7W
  • Maximum Pressure: 58
  • Maximum Vacuum: 52
  • Maximum Airflow Pressure: 89
  • Download Brochure
VFZ501A-5W
  • Maximum Pressure: 80
  • Maximum Vacuum: 80
  • Maximum Airflow Pressure: 135
  • Download Brochure
VFZ501A-7W
  • Maximum Pressure: 80
  • Maximum Vacuum: 78
  • Maximum Airflow Pressure: 135
  • Download Brochure
VFZ601A-5W
  • Maximum Pressure: 53
  • Maximum Vacuum: 134
  • Maximum Airflow Pressure: 95
  • Download Brochure
VFZ601A-7W
  • Maximum Pressure: 134
  • Maximum Vacuum: 95
  • Maximum Airflow Pressure: 173
  • Download Brochure

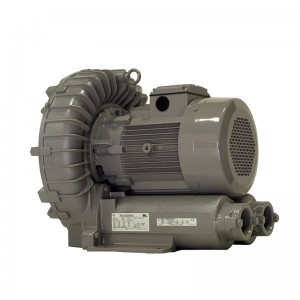

VFZ701A-5W
  • Maximum Pressure: 105
  • Maximum Vacuum: 99
  • Maximum Airflow Pressure: 217
  • Download Brochure
VFZ701A-7W
  • Maximum Pressure: 105
  • Maximum Vacuum: 99
  • Maximum Airflow Pressure: 217
  • Download Brochure

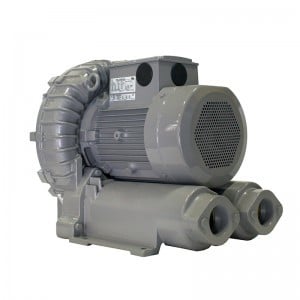

VFZ801A-5W
  • Maximum Pressure: 115
  • Maximum Vacuum: 108
  • Maximum Airflow Pressure: 379
  • Download Brochure
VFZ801A-7W
  • Maximum Pressure: 115
  • Maximum Vacuum: 108
  • Maximum Airflow Pressure: 379
  • Download Brochure
VFZ901A-5W
  • Maximum Pressure: 100
  • Maximum Vacuum: 85
  • Maximum Airflow Pressure: 574
  • Download Brochure
VFZ901A-7W
  • Maximum Pressure: 100
  • Maximum Vacuum: 85
  • Maximum Airflow Pressure: 574
  • Download Brochure
