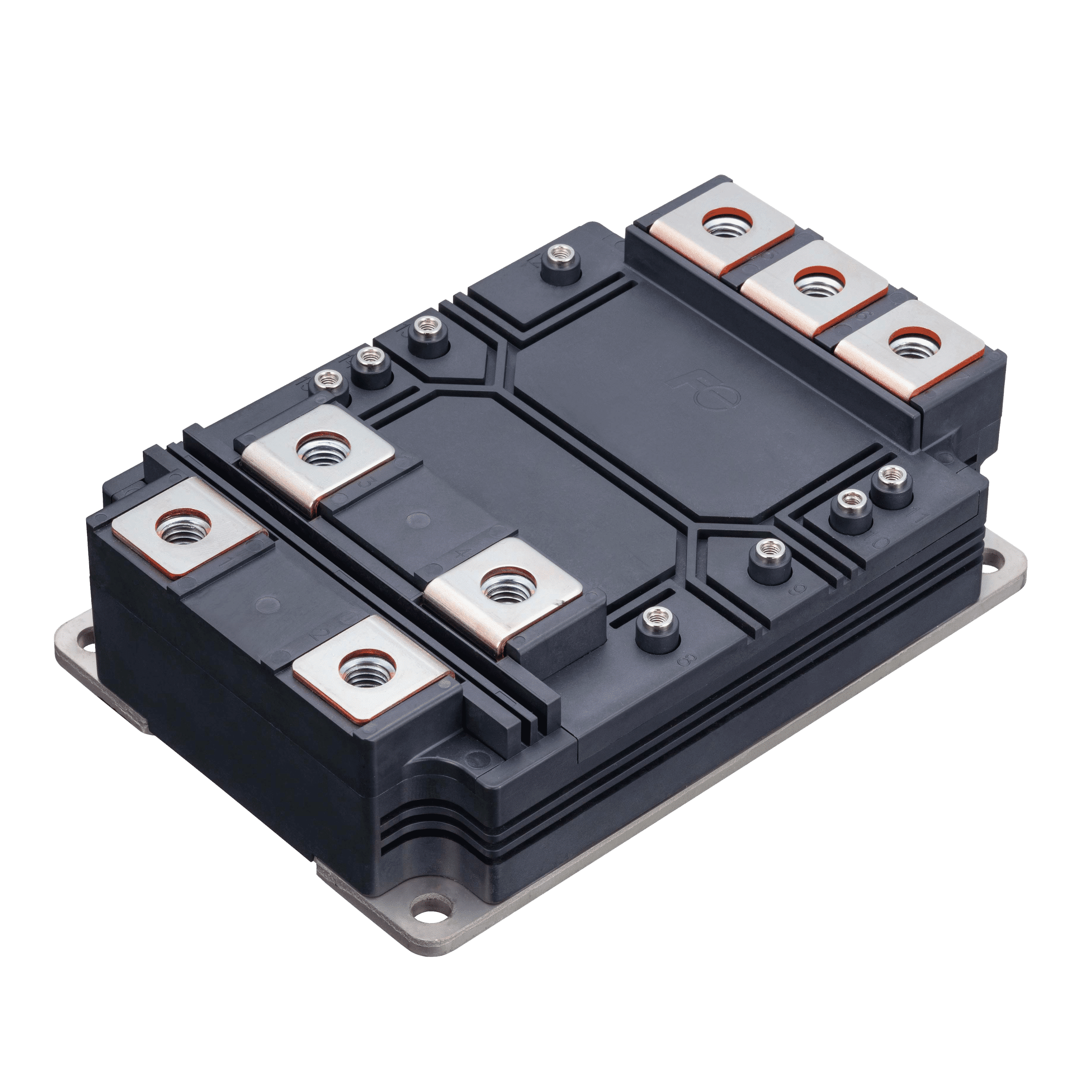

IGBT Modules IPM

IGBT IPM

RoHS: If the last two figures after hyphen of product name are from 50 through 99, the product is compatible with EU RoHS Directive.
For example “7MBR50VP060-50”
Small Capacity IPM (Intelligent Power Module) 600V Class

Package IC Amps. 600V
P633A

43.0 x 26.0
15 6MBP15XSD060-50 V(temp) OUT
15 6MBP15XSF060-50 V(temp) OUT & Self shutdown TOH
20 6MBP20XSD060-50 V(temp) OUT
20 6MBP20XSF060-50 V(temp) OUT & Self shutdown TOH
30 6MBP30XSD060-50 V(temp) OUT
30 6MBP30XSF060-50 V(temp) OUT & Self shutdown TOH
35 6MBP35XSD060-50 V(temp) OUT
35 6MBP35XSF060-50 V(temp) OUT & Self shutdown TOH



IPM (Intelligent Power Module) 600V, 1200V Class

Package IC Amps. 600V 1200V
V Series (Gen.6) Trench-FS V Series (Gen.6) Trench-FS
With Brake Without Blake With Brake Without Blake
P629

70.0 x 49.5
10 6MBP10VAA120-50
15 6MBP15VAA120-50
20 6MBP20VAA060-50
25 6MBP25VAA120-50
30 6MBP30VAA060-50
50 6MBP50VAA060-50
P626

87.0 x 50.2
25 6MBP25VBA120-50
35 6MBP35VBA120-50
50 6MBP50VBA060-50 6MBP50VBA120-50
75 6MBP75VBA060-50
P636

90.0 x 55.0
25 7MBP25VFN120-50 6MBP25VFN120-50
35 7MBP35VFN120-50 6MBP35VFN120-50
50 7MBP50VFN060-50 6MBP50VFN060-50 7MBP50VFN120-50 6MBP50VFN120-50
75 7MBP75VFN060-50 6MBP75VFN060-50
100 7MBP100VFN060-50 6MBP100VFN060-50
P630

128.5 x 84.0
25 7MBP25VDA120-50 6MBP25VDA120-50
35 7MBP35VDA120-50 6MBP35VDA120-50
50 7MBP50VDA060-50 6MBP50VDA060-50 7MBP50VDA120-50
7MBP50VDN120-50
6MBP50VDA120-50
6MBP50VDN120-50
75 7MBP75VDA060-50 6MBP75VDA060-50 7MBP75VDA120-50
7MBP75VDN120-50
6MBP75VDA120-50
6MBP75VDN120-50
100 7MBP100VDA060-50
7MBP100VDN060-50
6MBP100VDA060-50
6MBP100VDN060-50
7MBP100VDA120-50
7MBP100VDN120-50
6MBP100VDA120-50
6MBP100VDN120-50
150 7MBP150VDA060-50
7MBP150VDN060-50
6MBP150VDA060-50
6MBP150VDN060-50
200 7MBP200VDA060-50
7MBP200VDN060-50
6MBP200VDA060-50
6MBP200VDN060-50
P631

142.0 x 110.0
100 7MBP100VEA120-50 6MBP100VEA120-50
150 7MBP150VEA120-50 6MBP150VEA120-50
200 7MBP200VEA060-50 6MBP200VEA060-50 7MBP200VEA120-50 6MBP200VEA120-50
300 7MBP300VEA060-50 6MBP300VEA060-50
400 7MBP400VEA060-50 6MBP400VEA060-50
