Artificial intelligence is changing the electrical profile of the data center. High-density GPU clusters can concentrate large amounts of computing power into relatively small spaces, while workload scheduling can create rapid changes in facility demand.

The uninterruptible power supply, or UPS, must protect these loads without becoming a constraint on capacity, efficiency or future growth. A solution sized only from today’s nameplate values may be difficult to expand. A system designed only for peak efficiency may not provide the resilience, dynamic performance or maintainability required by the facility.

Selecting the right UPS requires a complete evaluation of the load, power architecture, redundancy strategy, runtime, cooling system and operating plan.

Begin with the critical load

The UPS should be sized from the load it must support, not from the building’s total electrical service.

Identify which systems require uninterrupted power:

Some cooling equipment may be supported by the UPS, while large chillers and pumps may transfer directly to standby generation. That decision affects both UPS capacity and the thermal response of the data hall.

Separate the following values:

This prevents growth allowance from being confused with operational redundancy.

Size in both kilowatts and kilovolt-amperes

UPS capacity is commonly expressed in both kW and kVA.

Kilowatts represent real power. Kilovolt-amperes represent apparent power, which includes the effect of power factor.

The relationship is:

[
\text{kW} = \text{kVA} \times \text{Power Factor}
]

Modern server power supplies often operate with a power factor close to unity, but the complete load should still be evaluated. Cooling equipment, legacy devices and lightly loaded power supplies can change the system power factor.

The UPS must have enough kW capacity for real power and enough kVA capacity for total current.

Review:

Do not assume that every AI rack presents an identical electrical profile.

Understand the dynamic behavior of AI loads

AI computing loads can change quickly as accelerators begin or complete computational work. Workload orchestration may also shift jobs among clusters or data halls.

Potential effects include:

The UPS should maintain stable output voltage during these changes without unnecessary battery operation or bypass transfer.

Ask the server and rack-system suppliers for:

Use measured data from representative equipment whenever possible. Nameplate ratings often describe maximum input capability rather than typical operation.

Fuji Electric’s UPS7400WX-T3U is designed to limit output-voltage variation to less than 3% during a 100% load step under its specified conditions, without using the battery. Dynamic specifications such as this should be compared with the actual load profile.

Select the appropriate topology

Online double-conversion UPS

An online double-conversion UPS converts incoming AC power to DC and then converts it back to regulated AC.

This architecture provides:

It is commonly used for critical AI computing because the inverter continuously supplies the load.

High-efficiency operating mode

Some UPS systems offer an economy or high-efficiency mode that supplies the load through a bypass path when utility conditions are acceptable.

This can reduce conversion loss, but the designer must evaluate:

High-efficiency mode should not be treated as equivalent to online double-conversion operation. The two modes provide different levels of power conditioning.

Fuji Electric’s UPS7400WX-T3U provides online double-conversion operation and a selectable high-efficiency mode. Published performance reaches approximately 97% in normal operation at common load levels and up to 99% in high-efficiency mode under specified conditions.

Evaluate efficiency across the real load profile

Peak efficiency is only one data point.

AI facilities may initially operate below design capacity because:

Request efficiency at:

A flat efficiency curve can be more valuable than a slightly higher peak.

UPS loss can be estimated as:

Ploss = Pout (1/ η – 1)

where:

Every kilowatt lost by the UPS becomes heat that must be removed from the electrical space. Include both direct electrical loss and cooling energy in the lifecycle analysis.

Fuji Electric uses advanced three-level conversion, reverse-blocking IGBT technology and SiC components in applicable UPS systems to reduce conversion loss.

Choose the redundancy architecture

The appropriate redundancy level depends on the business impact of a power interruption.

Common architectures include:

N

The system has enough capacity to support the design load but no redundant capacity.

N+1

One additional module or unit is available beyond the capacity required for the load.

N+2

Two additional modules or units are available.

2N

Two independent systems can each support the full load.

2N+1

Each side includes additional redundant capacity.

Distributed redundancy

Multiple systems share the load through a design intended to tolerate selected failures without duplicating every component.

The notation alone does not prove resilience. Review the entire power path, including:

A nominally redundant UPS system can still contain common points of failure.

Distinguish module redundancy from system redundancy

A modular UPS can include multiple power modules within one cabinet or system.

Module redundancy can allow the UPS to continue operating after one module is unavailable. It can also simplify capacity expansion.

System redundancy uses separate UPS systems and power paths.

These approaches address different risks.

When evaluating modular architecture, ask:

Fuji Electric’s UPS7400WX-T3U uses 330 kVA power modules and supports configurable capacity and module redundancy within the product family. Parallel systems can provide additional capacity and architectural flexibility.

Plan for phased growth

AI infrastructure can expand rapidly, but building the entire final UPS capacity on day one may reduce part-load efficiency and increase capital cost.

A scalable design can align UPS deployment with actual compute growth.

Evaluate:

Reserve the infrastructure needed for expansion, even if the initial UPS installation is smaller.

This may include:

Expansion should not require exposing the existing critical load to unnecessary risk.

Avoid chronic oversizing

Oversizing may appear conservative, but it can create disadvantages:

Separate four concepts:

They should not be combined into one arbitrary oversizing factor.

Modular architecture can reduce the need to install unused conversion capacity years before it is required.

Verify overload capability

The UPS must support credible temporary overloads without transferring unexpectedly to bypass or dropping the load.

Review performance at:

The time allowed at each overload level matters.

Fuji Electric’s UPS7400WX-T3U lists overload capability of 125% for 10 minutes and 150% for 1 minute under specified conditions.

Overload capacity should not be used as permanent design capacity. It provides operating margin for temporary conditions and fault coordination.

Evaluate short-circuit performance

A UPS inverter cannot usually supply the same fault current as a utility transformer.

This affects downstream protection.

Verify:

A downstream breaker selected for a utility-fed system may not trip promptly when supplied only by the UPS inverter.

Coordinate the complete system under:

Do not assume that a high bypass fault rating describes the inverter’s output capability.

Select the battery or energy-storage technology

The UPS energy-storage system must bridge the interval between utility loss and the restoration of a stable source.

Common options include:

Valve-regulated lead-acid batteries

Potential advantages include:

Considerations include:

Lithium-ion batteries

Potential advantages include:

Considerations include:

Flywheels

Potential advantages include:

Considerations include:

The UPS7400WX-T3U supports energy-storage options including VRLA batteries, lithium-ion batteries and flywheels in applicable configurations.

Determine the correct runtime

Longer battery runtime is not always better.

Runtime should be based on:

Common runtime strategies include:

AI servers may continue producing substantial heat during a power event. If cooling support is not maintained, a long electrical runtime may not provide useful operational continuity.

Coordinate UPS runtime with:

Electrical and thermal resilience must be designed together.

Include battery aging and recharge

Battery capacity declines with:

Apply the appropriate aging, temperature and design margins.

Also evaluate recharge time. After one outage, the system may need to withstand another event before the batteries have fully recovered.

Ask:

Battery monitoring should be integrated into the facility’s maintenance program.

Coordinate with standby generators

The UPS and generator must operate as a system.

Review:

A UPS with low input-current distortion and power factor near unity can reduce generator and transformer stress.

During generator operation, battery recharge may need to be limited to avoid overloading the source.

Test the complete sequence under representative load:

  1. Utility failure
  2. UPS battery operation
  3. Generator start
  4. Generator stabilization
  5. Transfer of upstream equipment
  6. UPS synchronization
  7. Battery recharge
  8. Return to utility

Decide which cooling loads require UPS support

High-density AI equipment can have a short thermal time constant. Loss of liquid flow may create risk even if server power remains available.

Evaluate whether the UPS must support:

Supporting every cooling component may require a very large UPS. Supporting too little can make IT runtime meaningless.

Use thermal modeling and equipment data to determine how long each cooling function must remain available.

Evaluate maintenance bypass

A UPS must be maintainable without unnecessary interruption to the critical load.

The design may include:

Verify:

Bypass equipment must be rated for the full critical load and available fault current.

A maintenance bypass should not create an undocumented single point of failure.

Review physical space and service access

AI data centers place a premium on usable floor area.

UPS planning should include:

Front-access maintenance can reduce required service clearance and allow equipment to be placed closer to walls or adjacent cabinets.

Fuji Electric’s large-capacity UPS designs use front-access service arrangements in applicable models to reduce maintenance-space requirements.

Account for environmental conditions

UPS ratings apply within specified environmental limits.

Verify:

High altitude reduces cooling effectiveness and may require derating.

Battery temperature often has a major effect on service life. The battery environment may need tighter temperature control than the UPS power electronics.

Compare operating modes carefully

A UPS may offer several operating modes:

For each mode, document:

Do not compare the online efficiency of one UPS with the bypass-mode efficiency of another.

The selected mode should match the facility’s power-quality requirements and risk tolerance.

Specify monitoring and integration

The UPS should provide enough information for operations, maintenance and capacity planning.

Useful data includes:

Common interfaces include:

Integrate important alarms with the building-management or data-center infrastructure-management system.

Cybersecurity requirements should address:

Evaluate maintainability and service strategy

Availability depends on how quickly the system can be diagnosed and repaired.

Review:

Ask whether components can be serviced while the remaining modules support the load.

Fuji Electric’s UPS7400WX-T3U includes redundant fans and serviceable components designed for online replacement in supported configurations.

The actual maintenance procedure should be reviewed during design, not after installation.

Calculate lifecycle cost

Compare more than purchase price.

Lifecycle cost can include:

Annual UPS energy loss should be calculated using the expected load profile.

Also account for the energy required to remove UPS heat from the electrical room.

A slightly more efficient system may provide substantial savings over continuous operation, especially at megawatt scale.

Validate with integrated testing

Factory testing and site testing should reflect the intended application.

Verify:

Testing should include failure scenarios, not only normal operation.

Record the final settings, firmware versions, battery configuration and baseline operating data.

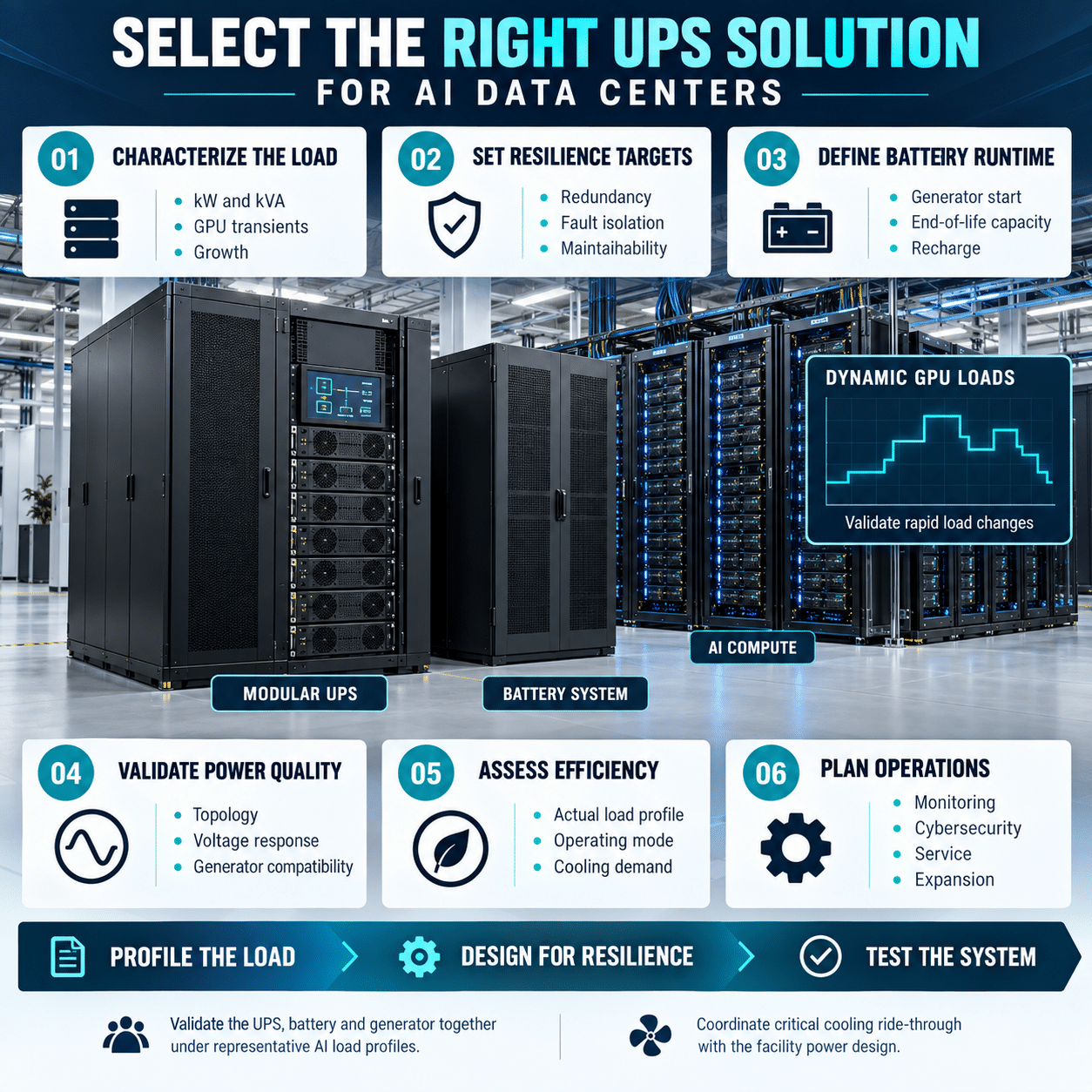

UPS selection checklist for AI data centers

Before specifying a UPS solution, confirm:

  1. What is the present critical load?
  2. What is the forecast load by deployment phase?
  3. What are the kW, kVA and power-factor requirements?
  4. What load steps and short-duration peaks are expected?
  5. What redundancy architecture is required?
  6. Is module redundancy, system redundancy or both needed?
  7. What is the expected operating load percentage?
  8. What is the efficiency at 25%, 50%, 75% and 100% load?
  9. Is high-efficiency mode acceptable?
  10. What overload performance is required?
  11. Can downstream protection operate on inverter fault current?
  12. What battery or storage technology is appropriate?
  13. How much runtime is actually needed?
  14. What cooling systems require UPS support?
  15. How will the UPS interact with standby generators?
  16. What is the battery recharge strategy?
  17. Can capacity be expanded without interrupting the load?
  18. Is the maintenance bypass fully rated and coordinated?
  19. What space, cooling and access are required?
  20. What monitoring protocols are needed?
  21. How will cybersecurity be managed?
  22. What service response and spare parts are available?
  23. What is the total lifecycle cost?
  24. Has the complete system been tested under realistic conditions?

Select the UPS as part of the complete AI power system

The right UPS for an AI data center is not simply the unit with the highest capacity or peak efficiency. It must support rapid load changes, operate efficiently at realistic loading, coordinate with generators and downstream protection, and scale with the compute environment.

It must also support the facility’s redundancy, maintenance and cooling strategies.

Fuji Electric provides high-capacity, modular UPS solutions for data center applications, including the UPS7400WX-T3U for North American 480 V systems and the UPS7500WX platform for applicable international systems. These products combine advanced power semiconductors, three-level conversion technology, modular capacity and high-efficiency operation.

A system-level selection process helps ensure that the UPS protects AI infrastructure without limiting efficiency, maintainability or future growth.
