Compressors

The VFZ Series are single-stage ring compressors with a maximum pressure of 139 in. H2O, a maximum vacuum of 110 in. H2O and a maximum capacity of 570 SCFM. Motors are direct drive from 1 HP to 15 HP. Voltages are available in 115 single phase, 230 single phase, 230/460 3-phase dependent upon motor size. All units are provided with threaded flanges.

Quality

Established in the US in 1970, Fuji Electric Ring Compressors and Blowers have an excellent reputation for Performance, Reliability and Quality in thousands of applications and in all environments. The latest models feature Premium efficiency motors and are designed for quiet operation.

Construction

Fuji Electric Ring Compressors provide robust design with Aluminum impellers, mounting base, and housings. Designs are UL and CE Recognized. Motors are designed for Multi-voltage operation. Accessories include Inlet filters for both pressure and vacuum applications.

Customer Service

Fuji Electric’s Customer Service group provides the portal for customer satisfaction through order entry and shipping advice. Fuji Electric Blowers are conveniently stocked at warehouse locations in California and New Jersey. Typical product lead times are 1-2 business days.

Compressors
VFC080 VFC10 VFC20 VFC30 VFC400P-5T VFZ401 VFB175P-5T VFC508P-2T VFZ501 VFZ601 VFZ701 VFZ801 VFZ901 VFB2000 VFB3000

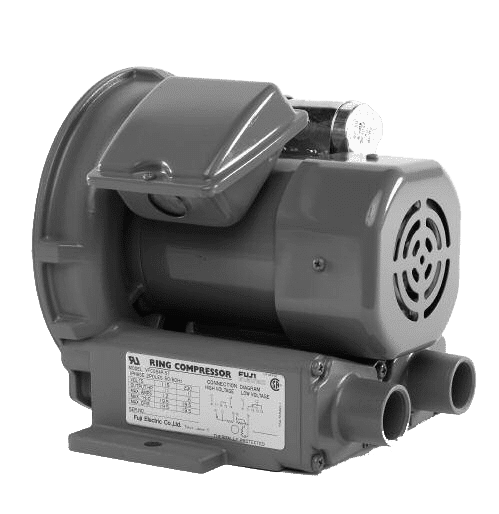

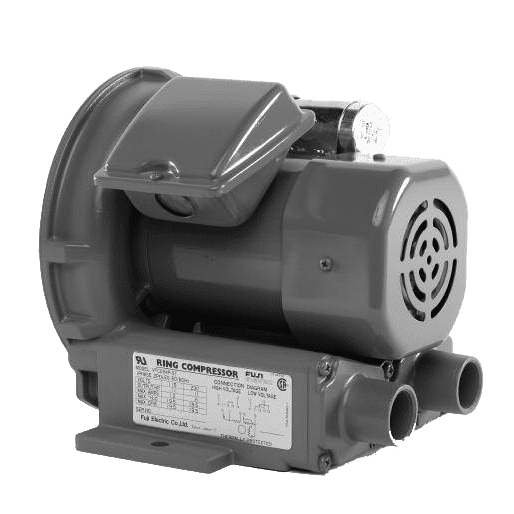

VFC080

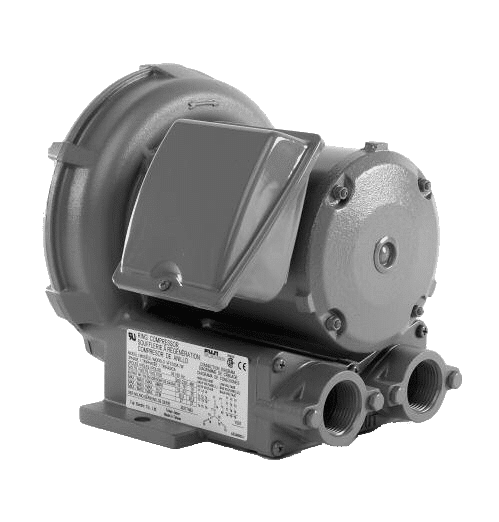

VFC10

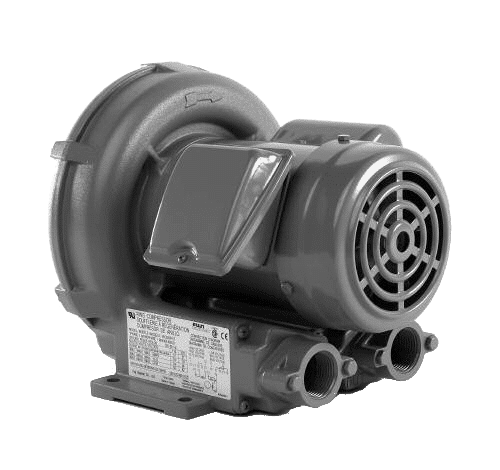

VFC20

VFC30

VFC400P-5T

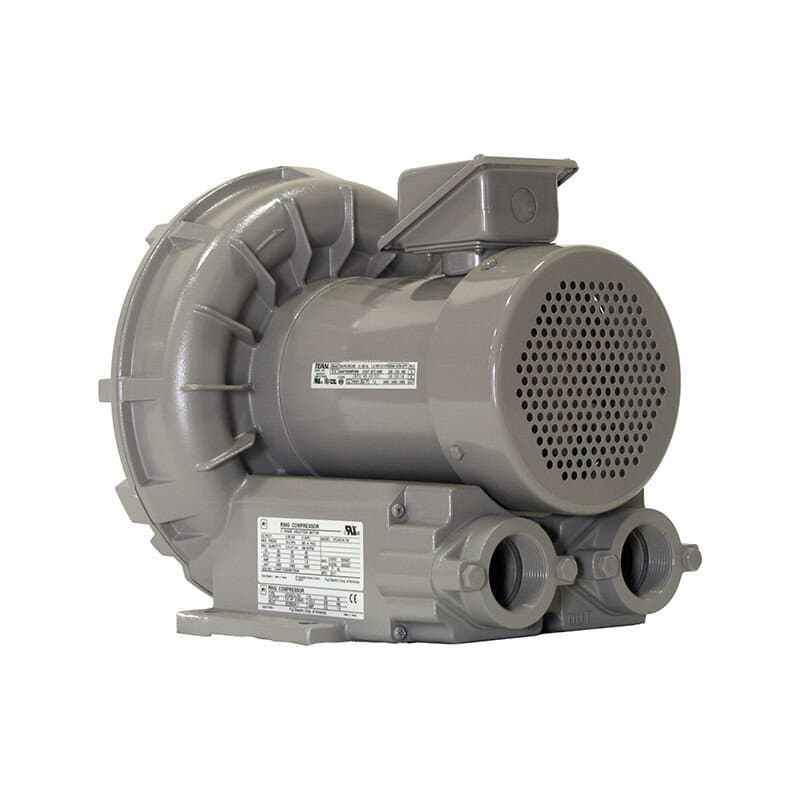

VFZ401

VFZ401A-7W, 230/460 VAC

  • Maximum Pressure: 60
  • Maximum Vacuum: 53
  • Maximum Airflow Pressure: 92
  • Download Datasheet

Also available in 575 VAC - 5W: Download Datasheet

VFB175P-5T

VFC508P-2T

VFZ501

VFZ501A-7W, 230/460 VAC

  • Maximum Pressure: 85
  • Maximum Vacuum: 83
  • Maximum Airflow Pressure: 145
  • Download Datasheet

Also available in 575 VAC - 5W: Download Datasheet

VFZ601

VFZ601A-7W, 230/460 VAC

  • Maximum Pressure: 134
  • Maximum Vacuum: 95
  • Maximum Airflow Pressure: 190
  • Download Datasheet

Also available in 575 VAC - 5W: Download Datasheet

VFZ701

VFZ701A-7W, 230/460 VAC

  • Maximum Pressure: 130
  • Maximum Vacuum: 99
  • Maximum Airflow Pressure: 250
  • Download Datasheet

Also available in 575 VAC - 5W: Download Datasheet

VFZ801

VFZ801A-7W, 230/460 VAC

  • Maximum Pressure: 135
  • Maximum Vacuum: 112
  • Maximum Airflow Pressure: 388
  • Download Datasheet

Also available in 575 VAC - 5W: Download Datasheet

VFZ901

VFZ901A-7W, 230/460 VAC

  • Maximum Pressure: 139
  • Maximum Vacuum: 110
  • Maximum Airflow Pressure: 574
  • Download Datasheet

Also available in 575 VAC - 5W:  Download Datasheet

VFB3000
