IGBT Modules

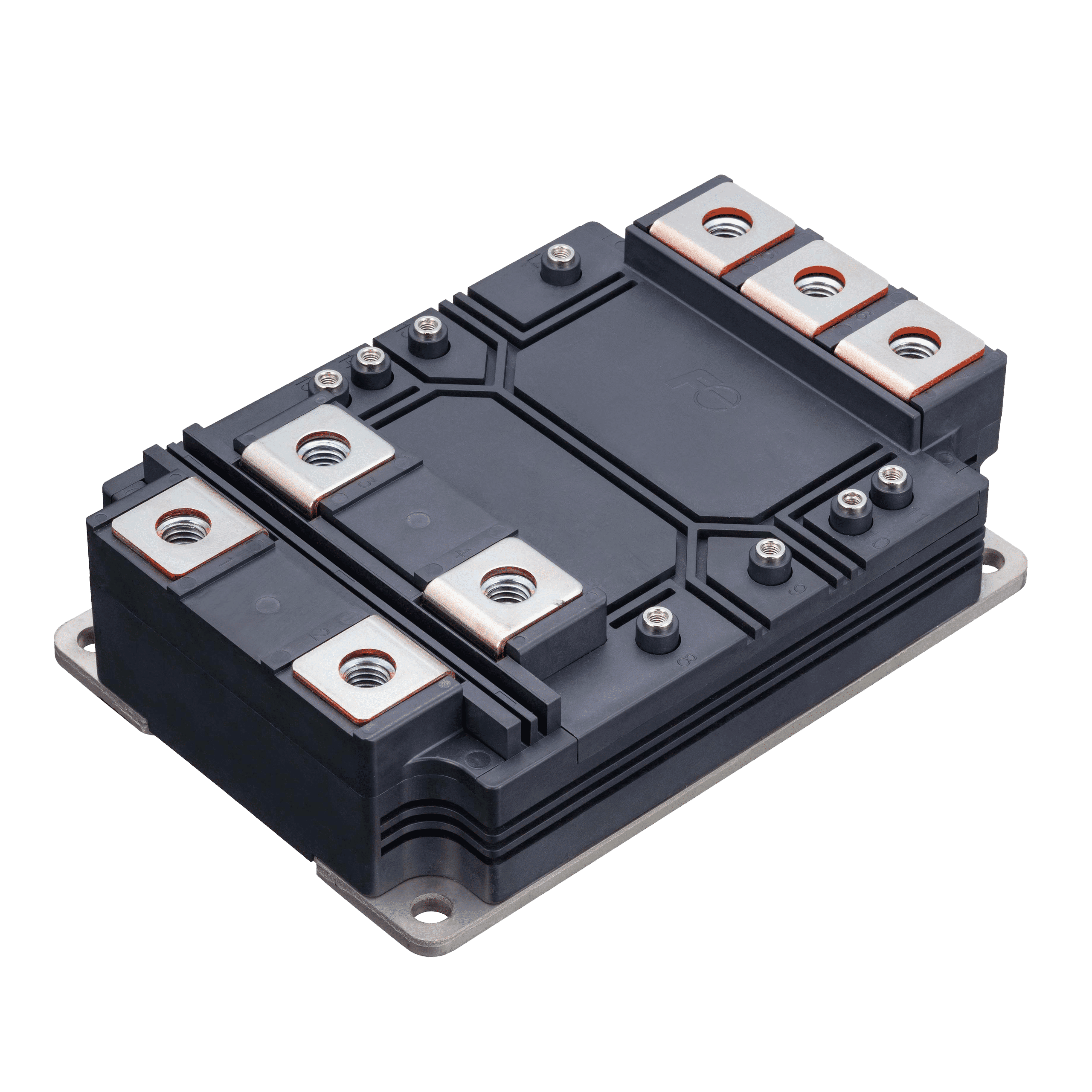

Fuji Electric’s IGBT Module (or insulated-gate bipolar transistor) is a high-performance 7th generation IGBT/FWD chipset with a compact design that provides for greater power output. It has environmentally friendly modules with easy assemblage, solder-free options, and RoHS compliance. The IGBT inverter turn-on switching characteristics include improved noise-loss trade-off, reduced turn-on dv/dt, and excellent turn-on dic/dt. Turn-off switching characteristics include soft switching behavior and turn-off oscillation free.

Low Loss

The module has been optimized by thinning the thickness and miniaturizing the structure of the IGBT chip and diode chip that makes up the module. This reduces power losses during inverter operation.

Miniaturization

The application of the newly developed insulating substrate has improved the heat dissipation of the module. A smaller footprint of about 36% has been achieved by reducing power loss and suppressing heat generation.

High-Temperature Operation

Achieves continuous operation at 175°C through chip optimization and improved reliability and heat resistance of package.

Product Finder
Please enter desired parameters

Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 1MBI1000UG-330 - 1-Pack 5th-Gen U Series 3.300 1.000 M155 140 130 900
2 1MBI1000UG-330B - 1-Pack 5th-Gen U Series 3.300 1.000 M155 140 130 900
3 1MBI1200UE-330 - 1-Pack 5th-Gen U Series 3.300 1.200 M156 140 190 1.300
4 1MBI1200VC-120P - 1-Pack 6th-Gen V Series 1.200 1.200 M151 140 130 1.500
5 1MBI1200VC-170E - 1-Pack 6th-Gen V Series 1.700 1.200 M151 140 130 1.500
6 1MBI1200VR-170E - 1-Pack 6th-Gen V Series 1.700 1.200 M155 140 130 900
7 1MBI1500UE-330 - 1-Pack 5th-Gen U Series 3.300 1.500 M156 140 190 1.300
8 1MBI1500UE-330B - 1-Pack 5th-Gen U Series 3.300 1.500 M156 140 190 1.300
9 1MBI1600VC-120P - 1-Pack 6th-Gen V Series 1.200 1.600 M151 140 130 1.500
10 1MBI1600VC-170E - 1-Pack 6th-Gen V Series 1.700 1.600 M151 140 130 1.500
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 2MBI100XAA120-50 New 2-Pack 7th-Gen X Series 1.200 100 M263 34 94 Yes 180
2 2MBI100XAA170-50 New 2-Pack 7th-Gen X Series 1.700 100 M263 34 94 Yes 180
3 2MBI1200XXE120P-50 New 2-Pack 7th-Gen X Series 1.200 1.200 M271 89 172 Yes 850
4 2MBI1200XXE170-50 New 2-Pack 7th-Gen X Series 1.700 1.200 M271 89 172 Yes 850
5 2MBI150XAA065-50 New 2-Pack 7th-Gen X Series 650 150 M263 34 94 Yes 180
6 2MBI150XAA120-50 New 2-Pack 7th-Gen X Series 1.200 150 M263 34 94 Yes 180
7 2MBI150XAA170-50 New 2-Pack 7th-Gen X Series 1.700 150 M263 34 94 Yes 180
8 2MBI150XHA170-50 New 2-Pack 7th-Gen X Series 1.700 150 M276 62 108 Yes 370

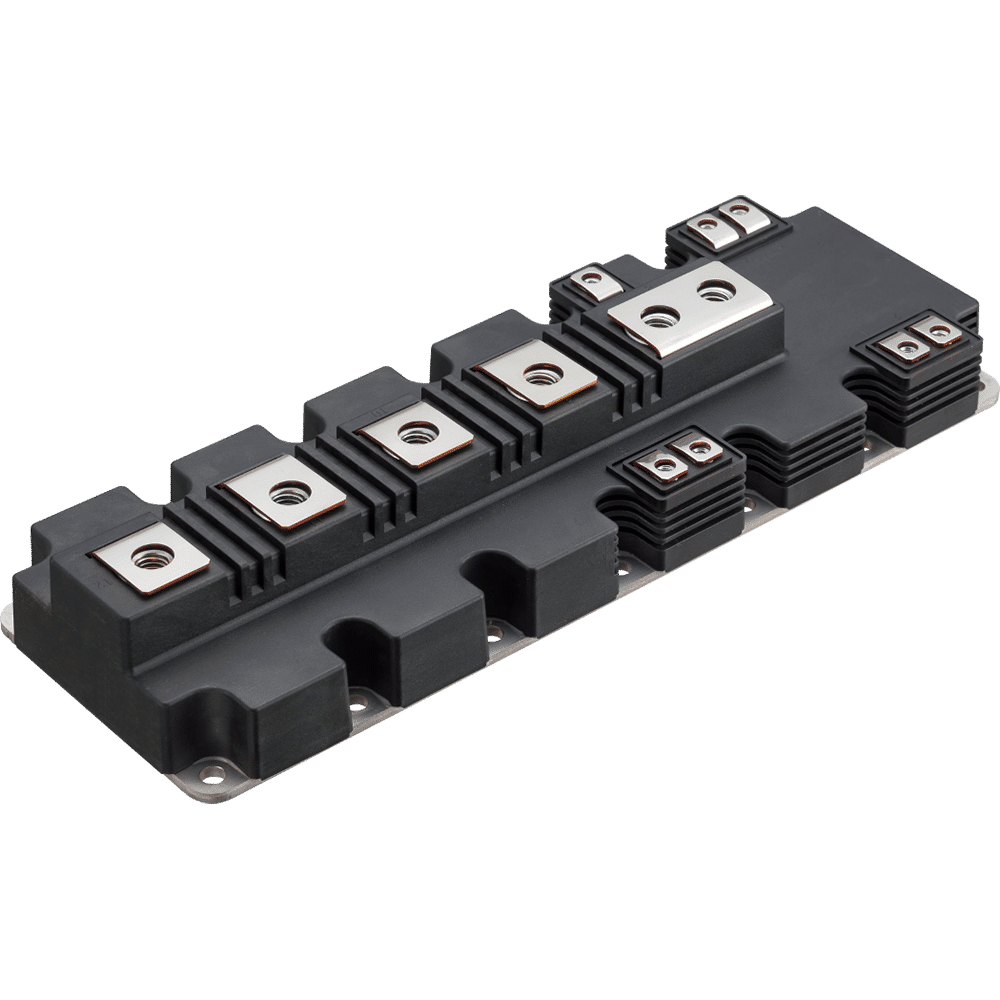

9 2MBI1800XXF120P-50 New 2-Pack 7th-Gen X Series 1.200 1.800 M272 89 250 Yes 1.250
10 2MBI1800XXF170-50 New 2-Pack 7th-Gen X Series 1.700 1.800 M272 89 250 Yes 1.250
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)

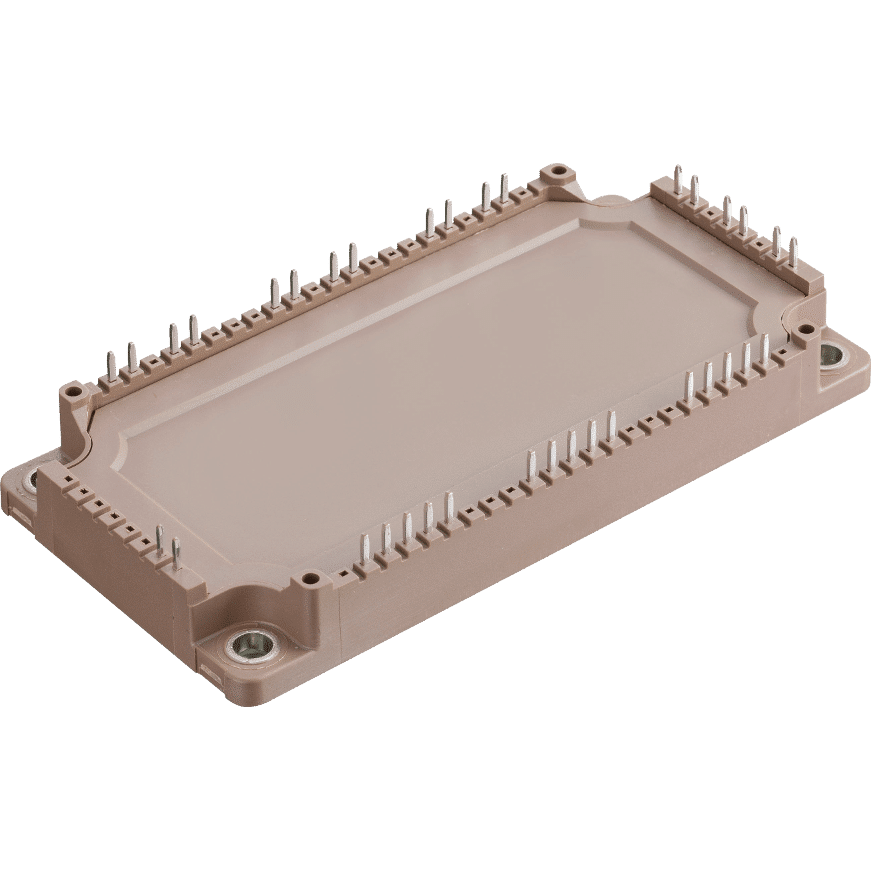

1 12MBI100VN-120-50 - 3-level 6th-Gen V Series 1.200 100 M1203 62 122 Yes 302
2 12MBI100VX-120-50 - 3-level 6th-Gen V Series 1.200 100 M1202 62 122 Yes 302
3 12MBI50VN-120-50 - 3-level 6th-Gen V Series 1.200 50 M1203 62 122 Yes 302
4 12MBI50VX-120-50 - 3-level 6th-Gen V Series 1.200 50 M1202 62 122 Yes 302
5 12MBI75VN-120-50 - 3-level 6th-Gen V Series 1.200 75 M1203 62 122 Yes 302
6 12MBI75VX-120-50 - 3-level 6th-Gen V Series 1.200 75 M1202 62 122 Yes 302
7 4MBI220VF-170R2-50 - 3-level 6th-Gen V Series 1.700 220 M403 80 110 Yes 460
8 4MBI300VG-120R-50 - 3-level 6th-Gen V Series 1.200 300 M403 80 110 Yes 460
9 4MBI300VG-120R1-50 - 3-level 6th-Gen V Series 1.200 300 M403 80 110 Yes 460
10 4MBI340VF-120R-50 - 3-level 6th-Gen V Series 1.200 340 M403 80 110 Yes 460
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 6MBI100XAE120-50 New 6-Pack 7th-Gen X Series 1.200 100 M669 45 107,50 Yes 200
2 6MBI100XBA120-50 - 6-Pack 7th-Gen X Series 1.200 100 M668 62 122,00 Yes 310

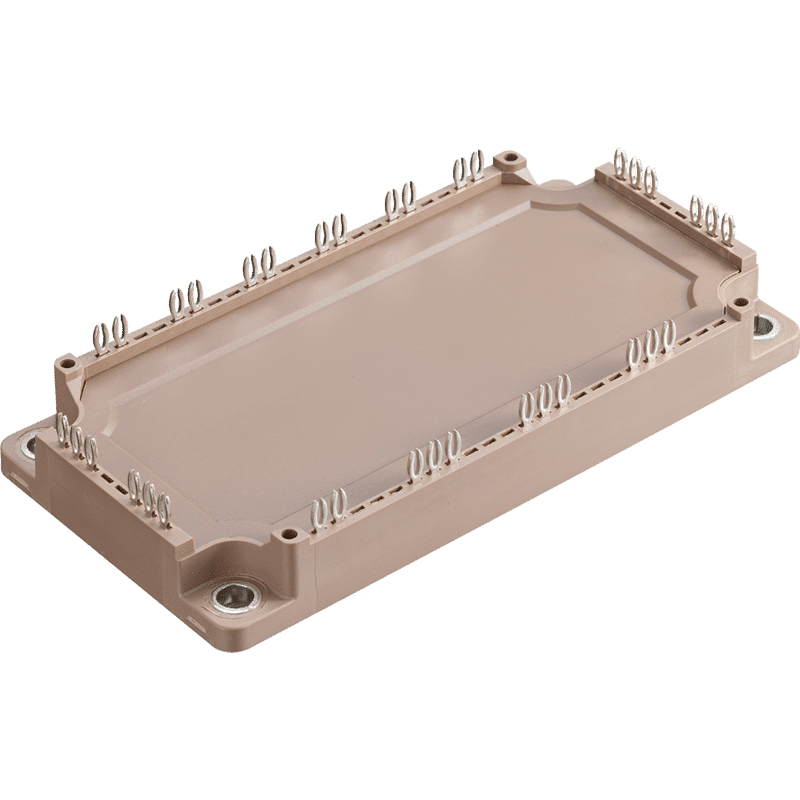

3 6MBI100XXA120-50 - 6-Pack 7th-Gen X Series 1.200 100 M648 62 122,00 Yes 310
4 6MBI150XBA120-50 - 6-Pack 7th-Gen X Series 1.200 150 M668 62 122,00 Yes 310
5 6MBI150XXA120-50 - 6-Pack 7th-Gen X Series 1.200 150 M648 62 122,00 Yes 310
6 6MBI200XBA120-50 - 6-Pack 7th-Gen X Series 1.200 200 M668 62 122,00 Yes 310
7 6MBI200XBE120-50 - 6-Pack 7th-Gen X Series 1.200 200 M668 62 122,00 Yes 310
8 6MBI200XXA120-50 - 6-Pack 7th-Gen X Series 1.200 200 M648 62 122,00 Yes 310
9 6MBI200XXE120-50 - 6-Pack 7th-Gen X Series 1.200 200 M648 62 122,00 Yes 310
10 6MBI100VA-060-50 - 6-Pack 6th-Gen V Series 600 100 M636 45 107,50 Yes 180
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 1MBI1000VXB-170EH-50 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
2 1MBI1000VXB-170EH-54 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
3 1MBI1000VXB-170EH-80 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
4 1MBI1000VXB-170EL-50 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
5 1MBI1000VXB-170EL-54 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
6 1MBI1000VXB-170EL-80 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
7 1MBI100U4F-120L-50 - Chopper 5th-Gen U Series 1.200 100 M262 34 94 Yes 180
8 1MBI1400VXB-120PH-54 - Chopper 6th-Gen V Series 1.200 1.400 M272 89 250 Yes 1.250
9 1MBI1400VXB-120PH-80 - Chopper 6th-Gen V Series 1.200 1.400 M272 89 250 Yes 1.250
10 1MBI1400VXB-120PL-54 - Chopper 6th-Gen V Series 1.200 1.400 M272 89 250 Yes 1.250
Device type New products Type Series IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)

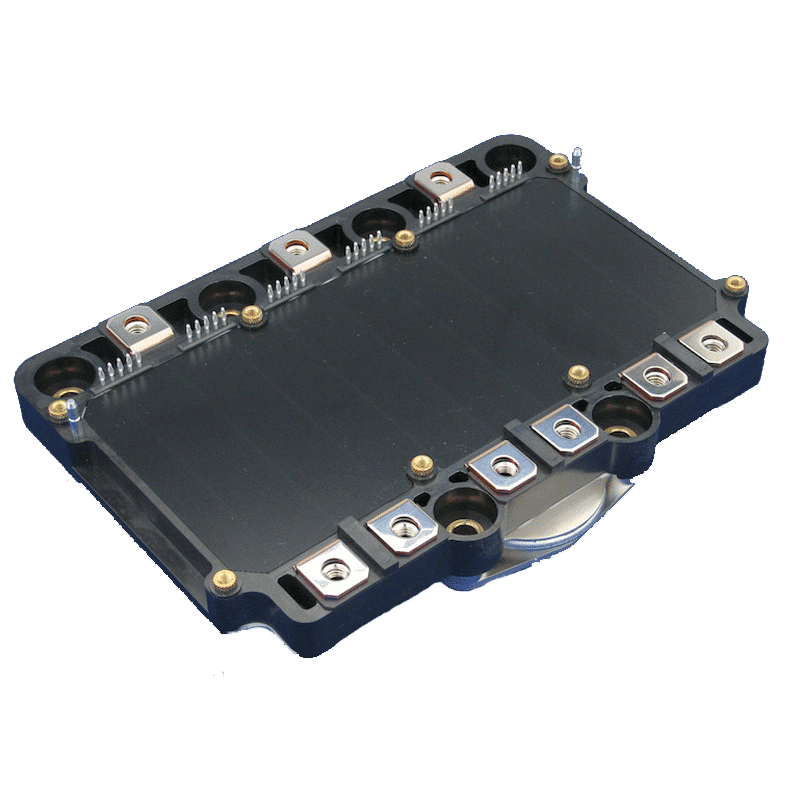

1 6MBI800XV-075V-01 - 6-Pack 05/02/2021 570 M653 162 117,30 Yes 560
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 6MBP50XTA065-50 New IPM 7th-Gen X Series 650 50 P642 31 79 Yes 37
2 6MBP50XTC065-50 New IPM 7th-Gen X Series 650 50 P642 31 79 Yes 37
3 6MBP75XTA065-50 New IPM 7th-Gen X Series 650 75 P642 31 79 Yes 37
4 6MBP75XTC065-50 New IPM 7th-Gen X Series 650 75 P642 31 79 Yes 37

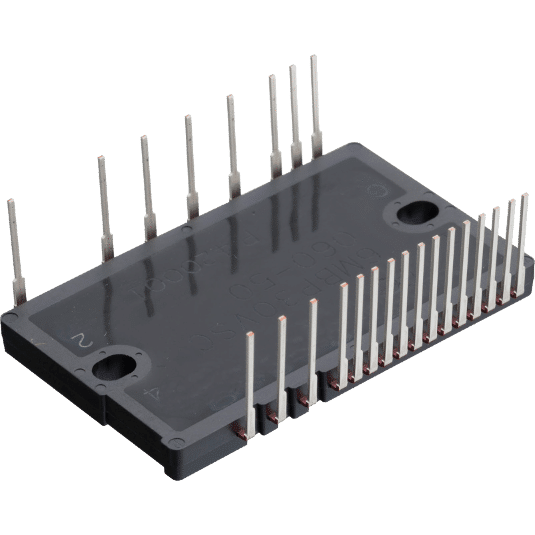

5 6MBP15XSD060-50 - IPM 7th-Gen X Series 600 15 P633A 26 43 Yes 93
6 6MBP15XSF060-50 - IPM 7th-Gen X Series 600 15 P633A 26 43 Yes 93
7 6MBP20XSD060-50 - IPM 7th-Gen X Series 600 20 P633A 26 43 Yes 93
8 6MBP20XSF060-50 - IPM 7th-Gen X Series 600 20 P633A 26 43 Yes 93
9 6MBP30XSD060-50 - IPM 7th-Gen X Series 600 30 P633A 26 43 Yes 93
10 6MBP30XSF060-50 - IPM 7th-Gen X Series 600 30 P633A 26 43 Yes 93
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 New PIM 7th-Gen X Series 1.200 50 M731 56,70 62,80 Yes 45
147
148
2 7MBR50XRKD120-50 New PIM 7th-Gen X Series 1.200 50 M733 56,70 62,80 Yes 45

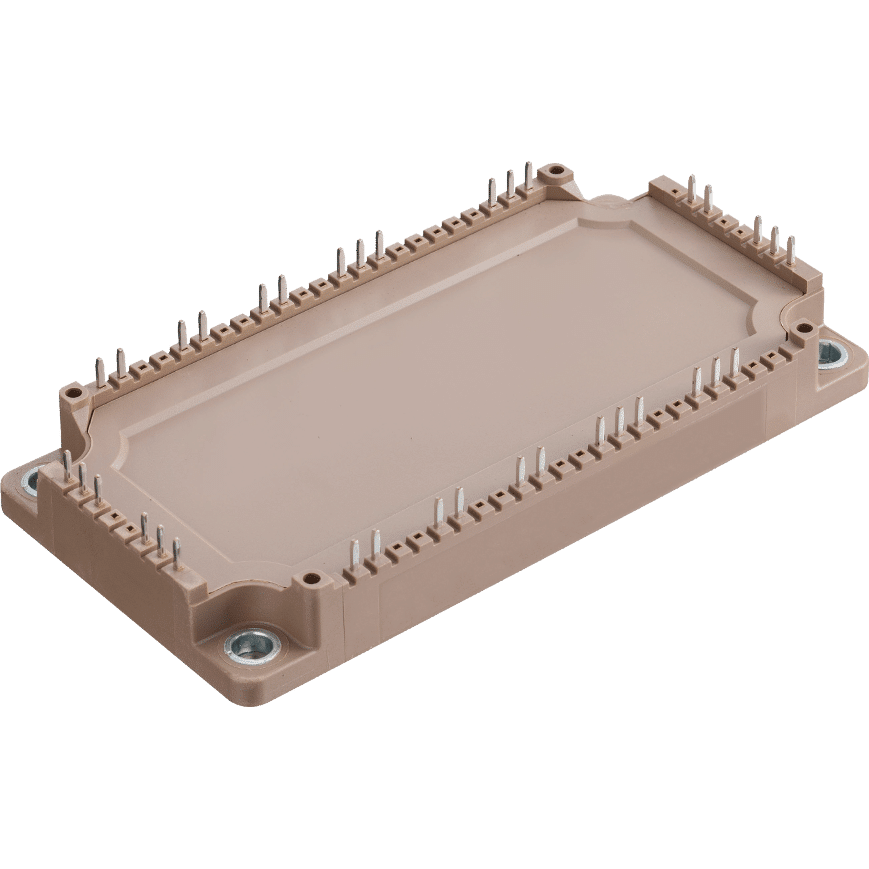

3 7MBR100XNA065-50 - PIM 7th-Gen X Series 650 100 M720 62,00 122,00 Yes 310
4 7MBR100XNA120-50 - PIM 7th-Gen X Series 1.200 100 M720 62,00 122,00 Yes 310
5 7MBR100XPE065-50 - PIM 7th-Gen X Series 650 100 M719 45,00 107,50 Yes 200
6 7MBR100XRA065-50 - PIM 7th-Gen X Series 650 100 M720 62,00 122,00 Yes 310
7 7MBR100XRA120-50 - PIM 7th-Gen X Series 1.200 100 M720 62,00 122,00 Yes 310
8 7MBR100XRE120-50 - PIM 7th-Gen X Series 1.200 100 M720 62,00 122,00 Yes 310

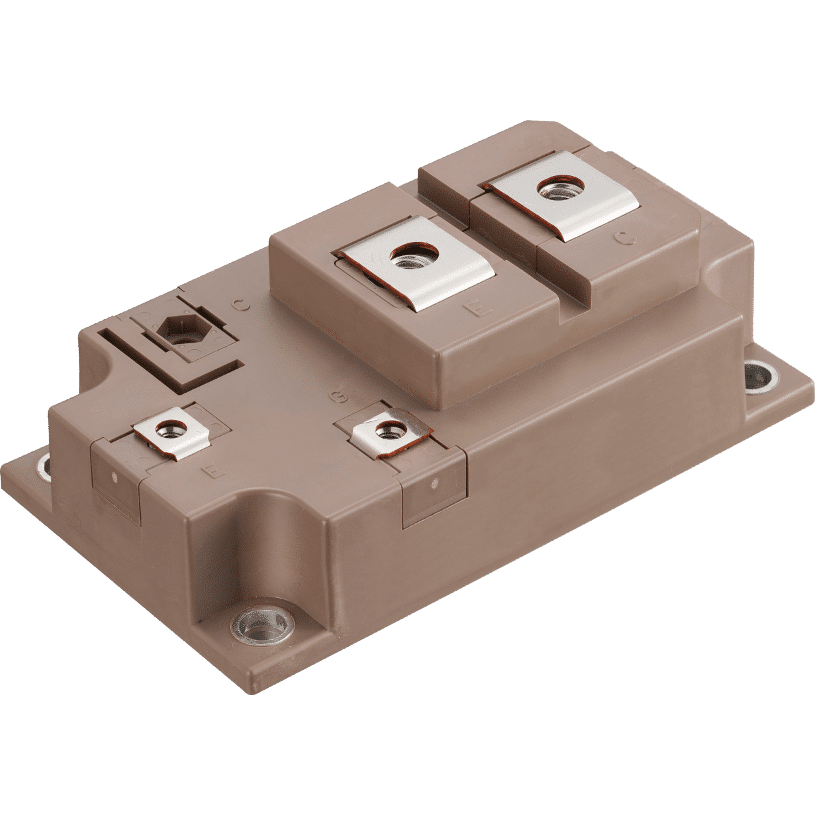

IGBT Modules 1-Pack
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 1MBI1000UG-330 - 1-Pack 5th-Gen U Series 3.300 1.000 M155 140 130 900
2 1MBI1000UG-330B - 1-Pack 5th-Gen U Series 3.300 1.000 M155 140 130 900
3 1MBI1200UE-330 - 1-Pack 5th-Gen U Series 3.300 1.200 M156 140 190 1.300
4 1MBI1200VC-120P - 1-Pack 6th-Gen V Series 1.200 1.200 M151 140 130 1.500
5 1MBI1200VC-170E - 1-Pack 6th-Gen V Series 1.700 1.200 M151 140 130 1.500
6 1MBI1200VR-170E - 1-Pack 6th-Gen V Series 1.700 1.200 M155 140 130 900
7 1MBI1500UE-330 - 1-Pack 5th-Gen U Series 3.300 1.500 M156 140 190 1.300
8 1MBI1500UE-330B - 1-Pack 5th-Gen U Series 3.300 1.500 M156 140 190 1.300
9 1MBI1600VC-120P - 1-Pack 6th-Gen V Series 1.200 1.600 M151 140 130 1.500
10 1MBI1600VC-170E - 1-Pack 6th-Gen V Series 1.700 1.600 M151 140 130 1.500
IGBT Modules 2-Pack
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 2MBI100XAA120-50 New 2-Pack 7th-Gen X Series 1.200 100 M263 34 94 Yes 180
2 2MBI100XAA170-50 New 2-Pack 7th-Gen X Series 1.700 100 M263 34 94 Yes 180
3 2MBI1200XXE120P-50 New 2-Pack 7th-Gen X Series 1.200 1.200 M271 89 172 Yes 850
4 2MBI1200XXE170-50 New 2-Pack 7th-Gen X Series 1.700 1.200 M271 89 172 Yes 850
5 2MBI150XAA065-50 New 2-Pack 7th-Gen X Series 650 150 M263 34 94 Yes 180
6 2MBI150XAA120-50 New 2-Pack 7th-Gen X Series 1.200 150 M263 34 94 Yes 180
7 2MBI150XAA170-50 New 2-Pack 7th-Gen X Series 1.700 150 M263 34 94 Yes 180
8 2MBI150XHA170-50 New 2-Pack 7th-Gen X Series 1.700 150 M276 62 108 Yes 370
9 2MBI1800XXF120P-50 New 2-Pack 7th-Gen X Series 1.200 1.800 M272 89 250 Yes 1.250
10 2MBI1800XXF170-50 New 2-Pack 7th-Gen X Series 1.700 1.800 M272 89 250 Yes 1.250
IGBT Modules 3-Level
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 12MBI100VN-120-50 - 3-level 6th-Gen V Series 1.200 100 M1203 62 122 Yes 302
2 12MBI100VX-120-50 - 3-level 6th-Gen V Series 1.200 100 M1202 62 122 Yes 302
3 12MBI50VN-120-50 - 3-level 6th-Gen V Series 1.200 50 M1203 62 122 Yes 302
4 12MBI50VX-120-50 - 3-level 6th-Gen V Series 1.200 50 M1202 62 122 Yes 302
5 12MBI75VN-120-50 - 3-level 6th-Gen V Series 1.200 75 M1203 62 122 Yes 302
6 12MBI75VX-120-50 - 3-level 6th-Gen V Series 1.200 75 M1202 62 122 Yes 302
7 4MBI220VF-170R2-50 - 3-level 6th-Gen V Series 1.700 220 M403 80 110 Yes 460
8 4MBI300VG-120R-50 - 3-level 6th-Gen V Series 1.200 300 M403 80 110 Yes 460
9 4MBI300VG-120R1-50 - 3-level 6th-Gen V Series 1.200 300 M403 80 110 Yes 460
10 4MBI340VF-120R-50 - 3-level 6th-Gen V Series 1.200 340 M403 80 110 Yes 460
IGBT Modules 6-Pack
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 6MBI100XAE120-50 New 6-Pack 7th-Gen X Series 1.200 100 M669 45 107,50 Yes 200
2 6MBI100XBA120-50 - 6-Pack 7th-Gen X Series 1.200 100 M668 62 122,00 Yes 310
3 6MBI100XXA120-50 - 6-Pack 7th-Gen X Series 1.200 100 M648 62 122,00 Yes 310
4 6MBI150XBA120-50 - 6-Pack 7th-Gen X Series 1.200 150 M668 62 122,00 Yes 310
5 6MBI150XXA120-50 - 6-Pack 7th-Gen X Series 1.200 150 M648 62 122,00 Yes 310
6 6MBI200XBA120-50 - 6-Pack 7th-Gen X Series 1.200 200 M668 62 122,00 Yes 310
7 6MBI200XBE120-50 - 6-Pack 7th-Gen X Series 1.200 200 M668 62 122,00 Yes 310
8 6MBI200XXA120-50 - 6-Pack 7th-Gen X Series 1.200 200 M648 62 122,00 Yes 310
9 6MBI200XXE120-50 - 6-Pack 7th-Gen X Series 1.200 200 M648 62 122,00 Yes 310
10 6MBI100VA-060-50 - 6-Pack 6th-Gen V Series 600 100 M636 45 107,50 Yes 180
IGBT Modules Chopper
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 1MBI1000VXB-170EH-50 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
2 1MBI1000VXB-170EH-54 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
3 1MBI1000VXB-170EH-80 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
4 1MBI1000VXB-170EL-50 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
5 1MBI1000VXB-170EL-54 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
6 1MBI1000VXB-170EL-80 - Chopper 6th-Gen V Series 1.700 1.000 M272 89 250 Yes 1.250
7 1MBI100U4F-120L-50 - Chopper 5th-Gen U Series 1.200 100 M262 34 94 Yes 180
8 1MBI1400VXB-120PH-54 - Chopper 6th-Gen V Series 1.200 1.400 M272 89 250 Yes 1.250
9 1MBI1400VXB-120PH-80 - Chopper 6th-Gen V Series 1.200 1.400 M272 89 250 Yes 1.250
10 1MBI1400VXB-120PL-54 - Chopper 6th-Gen V Series 1.200 1.400 M272 89 250 Yes 1.250
IGBT Modules for EV, HEV
Device type New products Type Series IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 6MBI800XV-075V-01 - 6-Pack 05/02/2021 570 M653 162 117,30 Yes 560
IGBT Modules IPM
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 6MBP50XTA065-50 New IPM 7th-Gen X Series 650 50 P642 31 79 Yes 37
2 6MBP50XTC065-50 New IPM 7th-Gen X Series 650 50 P642 31 79 Yes 37
3 6MBP75XTA065-50 New IPM 7th-Gen X Series 650 75 P642 31 79 Yes 37
4 6MBP75XTC065-50 New IPM 7th-Gen X Series 650 75 P642 31 79 Yes 37
5 6MBP15XSD060-50 - IPM 7th-Gen X Series 600 15 P633A 26 43 Yes 93
6 6MBP15XSF060-50 - IPM 7th-Gen X Series 600 15 P633A 26 43 Yes 93
7 6MBP20XSD060-50 - IPM 7th-Gen X Series 600 20 P633A 26 43 Yes 93
8 6MBP20XSF060-50 - IPM 7th-Gen X Series 600 20 P633A 26 43 Yes 93
9 6MBP30XSD060-50 - IPM 7th-Gen X Series 600 30 P633A 26 43 Yes 93
10 6MBP30XSF060-50 - IPM 7th-Gen X Series 600 30 P633A 26 43 Yes 93
IGBT Modules PIM
Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
wdt_ID Device type New products Type Series VCES(V) IC(A) Package Width(mm) Length(mm) RoHS Net mass(g)
1 New PIM 7th-Gen X Series 1.200 50 M731 56,70 62,80 Yes 45
147
148
2 7MBR50XRKD120-50 New PIM 7th-Gen X Series 1.200 50 M733 56,70 62,80 Yes 45
3 7MBR100XNA065-50 - PIM 7th-Gen X Series 650 100 M720 62,00 122,00 Yes 310
4 7MBR100XNA120-50 - PIM 7th-Gen X Series 1.200 100 M720 62,00 122,00 Yes 310
5 7MBR100XPE065-50 - PIM 7th-Gen X Series 650 100 M719 45,00 107,50 Yes 200
6 7MBR100XRA065-50 - PIM 7th-Gen X Series 650 100 M720 62,00 122,00 Yes 310
7 7MBR100XRA120-50 - PIM 7th-Gen X Series 1.200 100 M720 62,00 122,00 Yes 310
8 7MBR100XRE120-50 - PIM 7th-Gen X Series 1.200 100 M720 62,00 122,00 Yes 310
