High Static Differential Pressure Transmitters

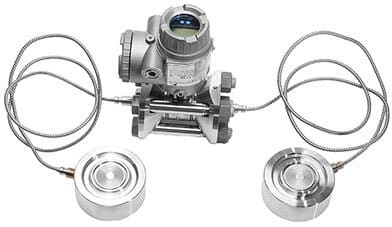

Fuji Electric’s Differential Pressure Transmitter offers customers an ideal solution for high pressure applications, such as those found in the Oil & Gas industry. Utilizing a unique micromachined capacitive silicon sensor with state of the art microprocessor technology, the transmitter provides exceptional performance and functionality in critical flow measurement situations. The innovative design of the FCX-AII V5 transmitter allows it to measure differential pressures of 130mbar at static pressure of up to 20,000 Psi (1379 Bar), typically found in top side and subsea applications.

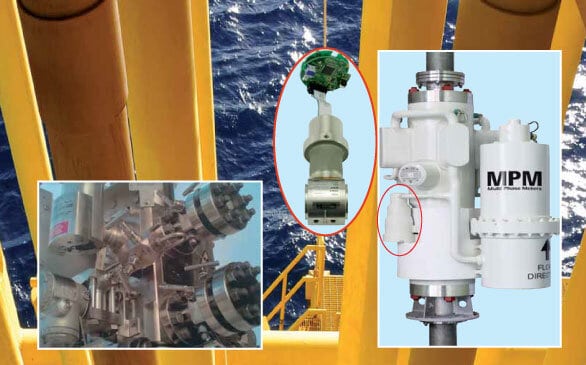

Ultra-Deep Water Flow Measurement
Oil & Gas producers are drilling to new depths to keep up with demand. Single and multiphase flowmeters are challenged by the need to operate at more and more high pressures.
Fuji Electric France supplies differential pressure transmitters for multi-phase flow measurement up to 3 500 meter water depth. More than 6000 specific high static pressure DP transmitters from Fuji Electric France are operating all over the world on top-side and subsea applications in the Oil & Gas market.
Our differential pressure transmitters enable flow measurements with the following static pressures :
- 7500 Psi (517 bar)
- 10 000 Psi (690 bar)
- 15 000 Psi (1035 bar)
- 20 000 Psi (1380 bar)

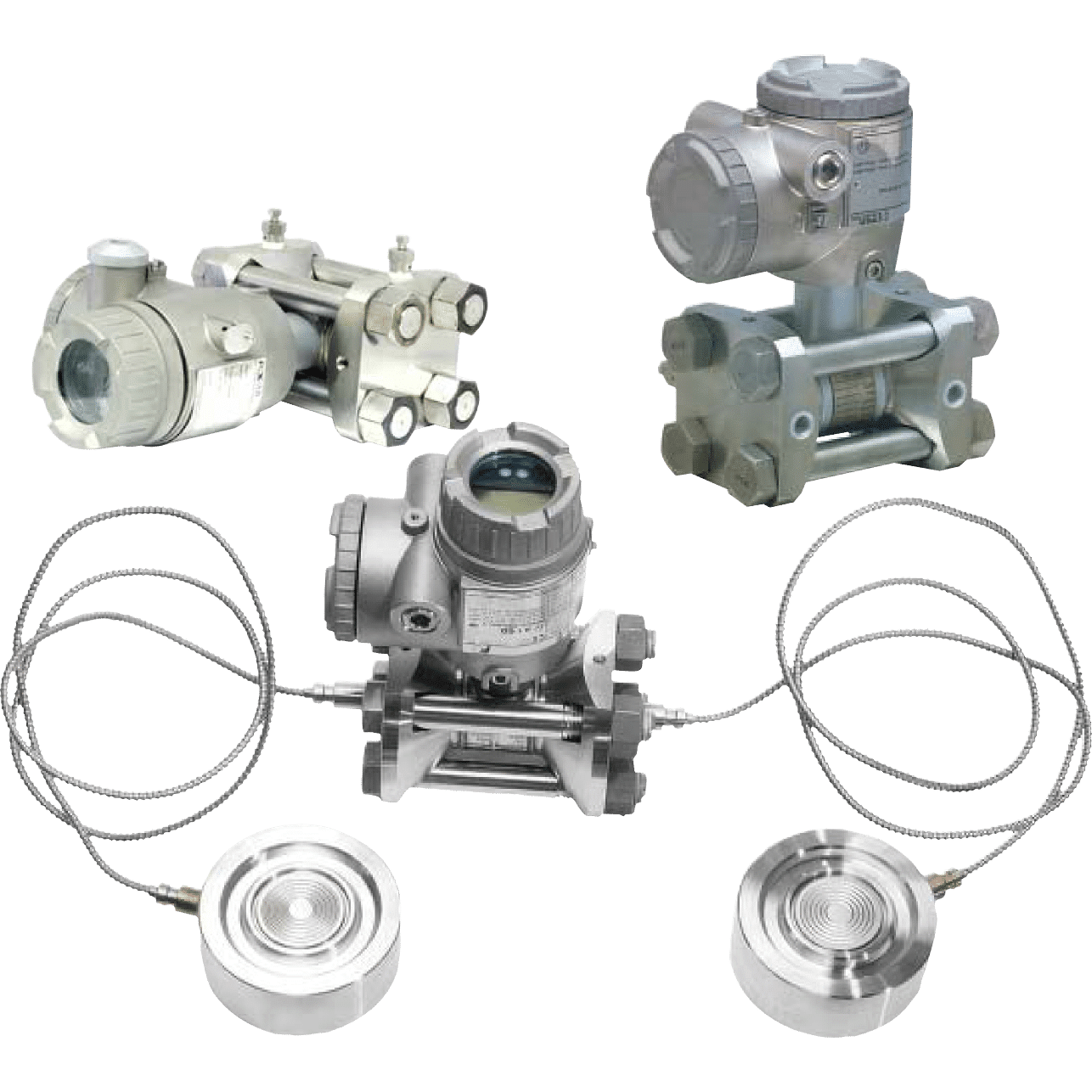

High Static Pressure Differential Pressure Transmitters
Today’s oil and gas industry is creating challenging applications that need specifically designed solutions to cope with higher static pressures, aggressive process and environmental conditions.
The experience and technical capability that Fuji Electric France has built into these transmitters enables them to measure differential pressures of 130mbar at static pressures of up to 1 035bar (15 000psi), typically found in top-side and subsea applications.
The accuracy and reliability of Fuji Electric’s transmitters is underpinned using specialist calibration equipment that produces differential pressure at extreme static pressures. This equipment is traceable to international metrology standards, through third party verification.
High Performance Pressure Transmitters
Today’s oil and gas industry is creating challenging applications that need specifically designed solutions to cope with higher static pressures, aggressive process and environmental conditions.
The experience and technical capability that Fuji Electric France has built into these transmitters enables them to measure differential pressures of 130mbar at static pressures of up to 1 035bar (15 000psi), typically found in top-side and subsea applications.
The accuracy and reliability of Fuji Electric’s transmitters is underpinned using specialist calibration equipment that produces differential pressure at extreme static pressures. This equipment is traceable to international metrology standards, through third party verification.
