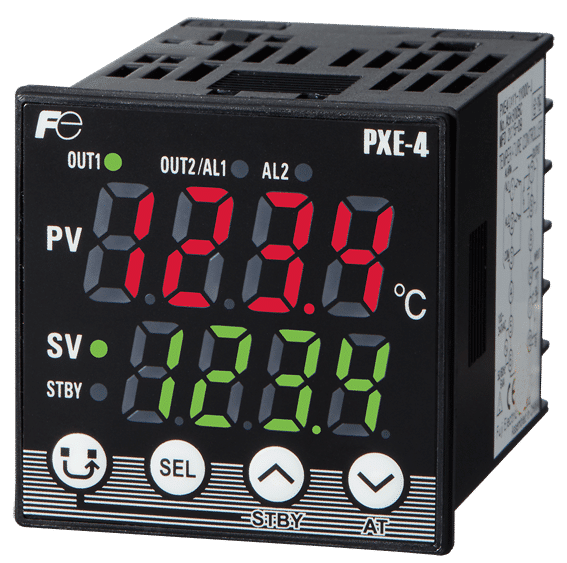

Digital Temperature Controller
(PXE Series)
Simple and compact
- New design: 1.6-mm thick, world’s thinnest front panel.
- Shallow depth: 62 mm.
- Input type and measuring range are programmable: A user can switch input type among Pt100 and thermocouples and their measuring range with front keys.
- Flexible:
- On-off, PID, fuzzy, two-degree-of-freedom PID control
Auto tuning is available except for on-off control. - Heating and cooling dual control available.
- Relay contact output or SSR drive output.
- On-off, PID, fuzzy, two-degree-of-freedom PID control
- Up to two alarm outputs.
- Front waterproof structure (IP66).
Specifications
| Power supply voltage | 100–240 V AC, 50/60 Hz |
|---|---|
| Power consumption | ≤ 5 VA (at 100 V) or ≤ 6 VA (at 220 V) |
| Input | RTD (Pt100), thermocouples (9 types) |
| Indication accuracy | (±0.5% of indicated value or 1°C, whichever is larger) ±1 digit ±1°C |
| Sampling rate | 0.2 s |
| SV/PV correction | Provided |
| Control | On-off, PID, fuzzy, two-degree-of-freedom PID control (Auto tuning is available except for on-off control.) |
| Control output | Relay contact output or SSR drive output In the dual control, the alarm output 1 functions as the control output 2. |
| Alarm output | 1 or 2 (option) |
| Alarm type | absolute value, deviation value, zone, high, low, hold, alarm latch, excitation/non-excitation |
| Burnout | If burnout occurs, the output goes to high limit or low limit. |
| Display | 7-segment 4-digit LED Process value and set value |
| Loader interface | Allows you to view and edit the parameter values on your PC. PXE can be bus-powered via the dedicated loader cable. |
| Protection class of front panel |
NEMA-4X (equivalent to IP66) Only when mounted on panel by using the dedicated waterproof packing. |
| Dimensions and weight | 48 (W) × 48 (H) × 63.5 (D) mm, approx. 100 g |
| Mounting | Panel mount (mounting fixture provided) |
| Terminal | M3 screw terminal |
| Ambient temperature | -10°C to +55℃ |
