Solar

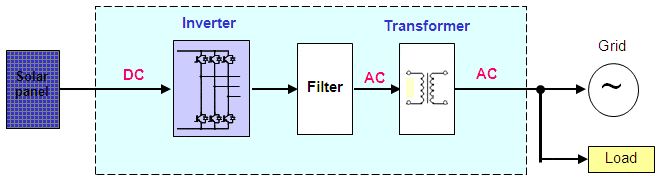

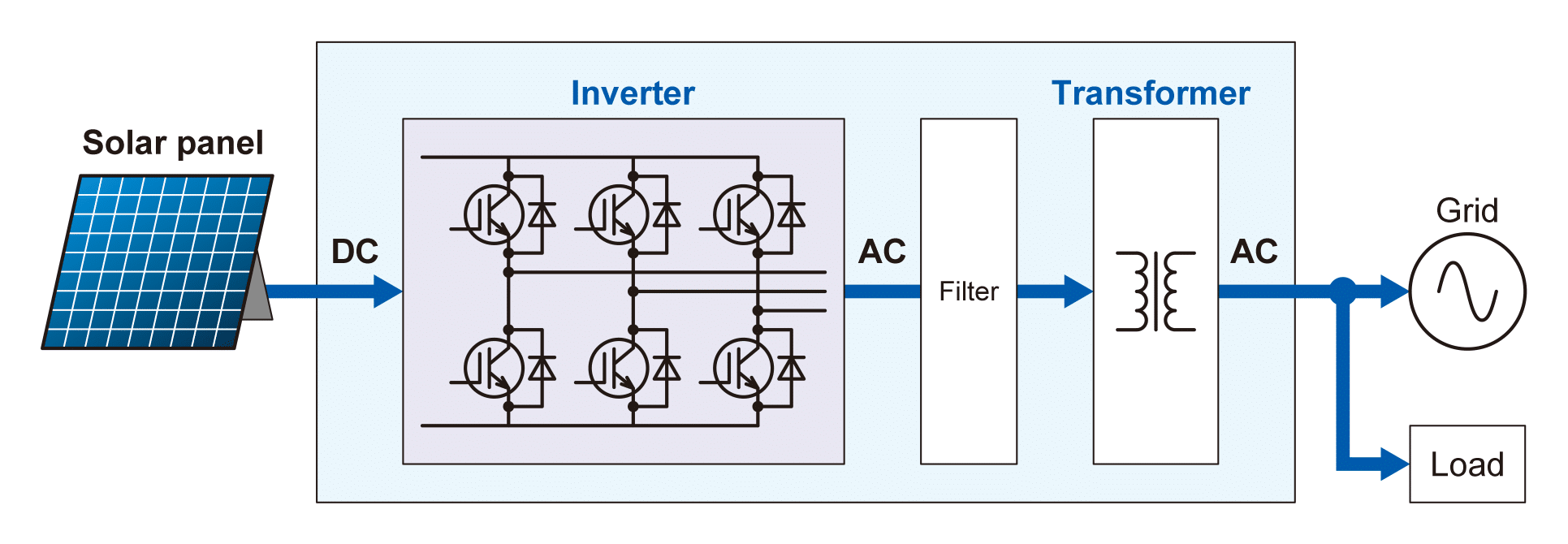

Power conditioners are needed to convert solar-panel generated DC power into AC power to enable the residential consumption, as well as to facilitate feeding the power to the power systems of power companies.

solar-circuit

Conversion Circuit Example

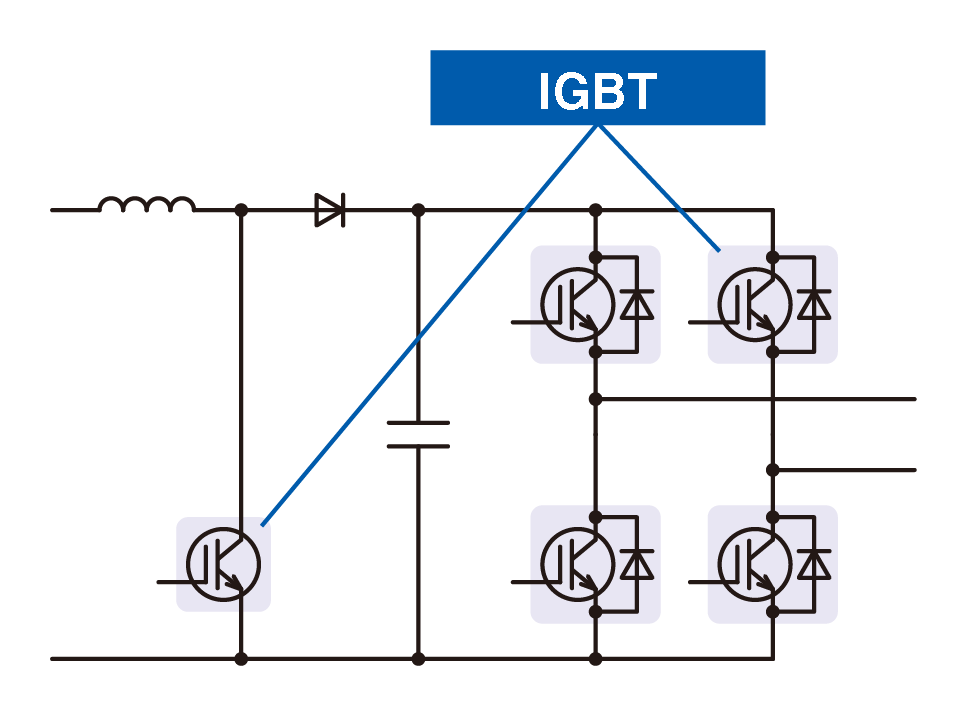

Type Single-phase
inverter

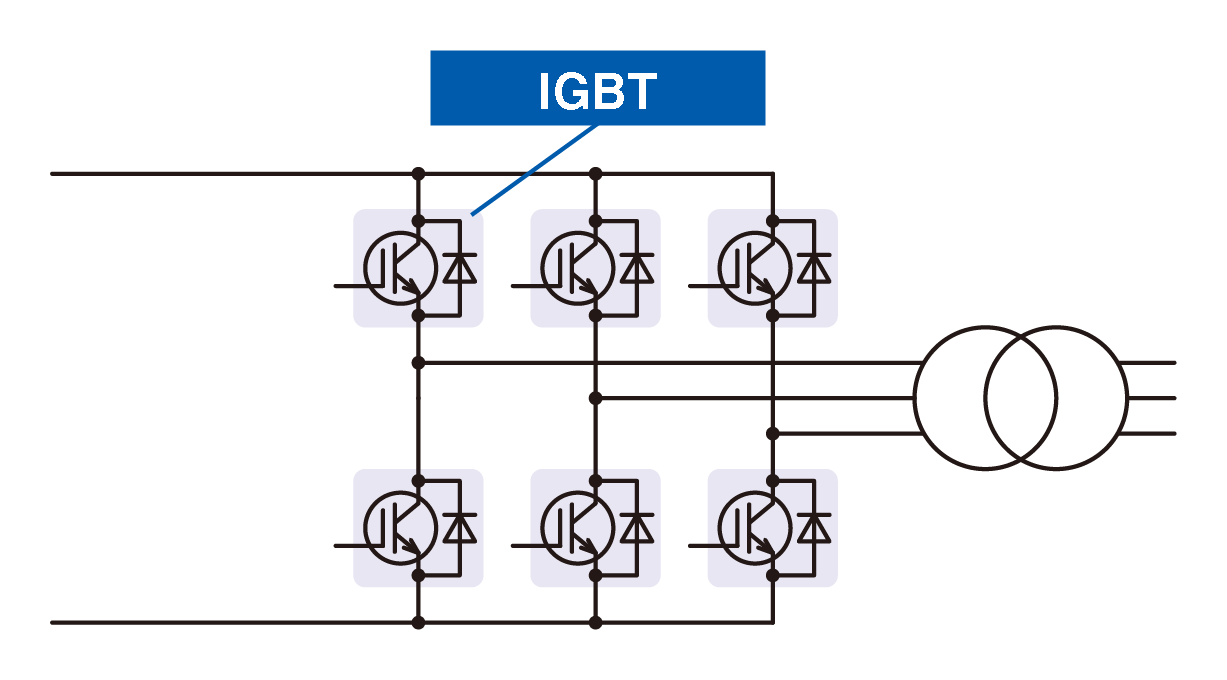

2-level
inverter

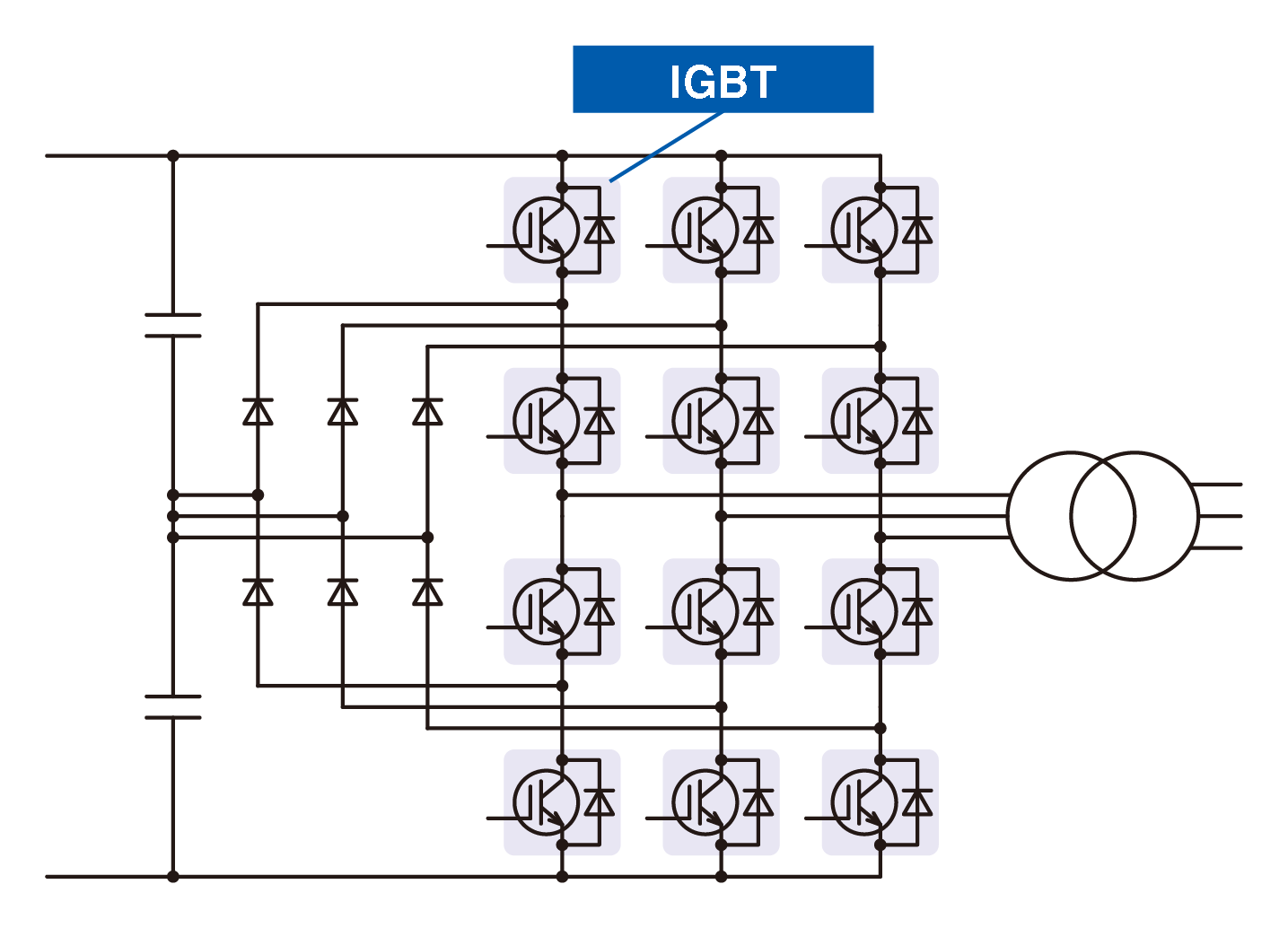

NPC 3-level
inverter
A-NPC 3-level
with RB-IGBT
Circuit
Device IGBT:600V IGBT:1200V IGBT:600V IGBT:1200V
+600V(RB-IGBT)
Output
Voltage
Capacity < 10kW > 10kW > 10kW > 10kW

Solar Inverter IGBT Modules

Level Inverters

NPC 3 Level Inverter

PCS VCES Ic rating Package IGBT P/N Number of parallel
10kW 1200V 75A EP3(12in1) 12MBI75VN-120-50 1
12MBI75VX-120-50
15kW 1200V 100A EP3(12in1) 12MBI100VN-120-50 1
12MBI100VX-120-50
20kW 1200V 150A M403(4in1) 4MBI300VG-120R-50 1
30kW 1200V 200A M403(4in1) 4MBI300VG-120R-50 1
50kW 1200V 300A M403(4in1) 4MBI300VG-120R-50 1
100kW 1200V 300A x2p M403(4in1) 4MBI300VG-120R-50 2
650A T-Slim 4MBI650VB-120R1-50 1
125kW 1200V 300A x2p M403(4in1) 4MBI300VG-120R-50 2
650A T-Slim 4MBI650VB-120R1-50 1
250kW 1200V 300A x4p M403(4in1) 4MBI300VG-120R-50 4
900A T-Slim 4MBI900VB-120R1-50 1
500kW 1200V 900A x2p T-Slim 4MBI900VB-120R1-50 2
1000kW 1200V 900A x4p T-Slim 4MBI900VB-120R1-50 4
