  • How to choose the safest pressure transmitter for hazardous areas

    How to choose the safest pressure transmitter for hazardous areas

    Selecting the appropriate pressure transmitter for an explosive environment can be challenging. Numerous factors must be taken into account, as errors can lead to serious consequences. You can confidently choose the right pressure transmitter for your application and ensure the safety of your facility in hazardous areas.

    Choose the industry category for your installation
    It is crucial to identify the specific industry category relevant to your installation. Doing so ensures you select a transmitter tailored to the unique hazards of your environment. Taking these precautions helps safeguard both your employees and equipment.

    Identify the level of explosive risk
    Explosive atmospheres are categorized into Zone 0, Zone 1, and Zone 2 based on the level of risk. Zone 0 represents a permanent risk, Zone 1 denotes an occasional risk, and Zone 2 indicates a potential risk. Each zone requires specific types of pressure transmitters designed for use in such environments. For instance, in Zone 0, only explosion-proof or intrinsically safe pressure transmitters are suitable. Zone 1 permits the use of dust-ignition-proof pressure transmitters, while Zone 2 allows for any type of pressure transmitter.

    When selecting a pressure transmitter for explosive atmospheres, it is essential to match the transmitter’s classification with the zone’s requirements. Choosing the wrong transmitter could lead to catastrophic explosions.

    Identify the type of flammable substance
    Flammable substances are typically classified into two main types: gas and dust. Gas is generally easier to detect due to its higher visibility, while dust can be more challenging to identify. Both can pose explosive risks, making it essential to select an appropriate pressure transmitter for use in hazardous areas.

    Choose gas or dust transmitters based on the specific chemicals present in the environment, including potentially volatile liquids such as certain fuels.

    Identify the protection method suitable for your hazardous area
    To ensure safety, it is essential to select the appropriate protection method for your specific requirements. This involves choosing the right device, such as sensors with varying technologies—like piezoresistive or capacitive—depending on the installation environment.

    Consider gases and dusts
    A critical factor when selecting a pressure transmitter for an explosive area is identifying the type of gas present, along with the size and conductivity of the dust.

    For gases, determine the ignition hazard class. To prevent accidental ignition, it is essential to select a transmitter that is compatible with the type of gas being used. Gases are classified into three ignition risk categories: flammable, combustible, and inert.

    • Flammable gases, like hydrogen, can ignite at very low concentrations
    • Combustible gases, such as methane, require higher concentrations to ignite but still pose a risk
    • Inert gases, like nitrogen, are non-flammable and can be safely used in potentially explosive environments.

    By selecting a pressure transmitter that matches the appropriate ignition risk class, you can reduce the risk of accidental fires and explosions.

    For dusts, identify the size and conductivity. The transmitter must be capable of withstanding varying levels of dust exposure depending on the application. For instance, in a coal mine, the dust is relatively large and less conductive, whereas in a flour mill, the dust is finer and more conductive. The pressure transmitter selected should be suitable for the dust’s size and conductivity. If the transmitter is not designed to handle the specific dust characteristics, it could fail prematurely or even cause an explosion. Therefore, it’s crucial to match the dust size and conductivity with the appropriate type of pressure transmitter.

    Choose the correct surface temperature
    Selecting a sensor with the correct surface temperature range is crucial to ensure it can withstand the temperatures present in an explosive area. The most common temperature ranges for explosive environments are T1 (low temperature) and T2 (high temperature). If the sensor is not rated for the appropriate temperature range, it may not deliver accurate readings or could fail entirely. Choosing the right sensor with the proper surface temperature range is essential for safe and reliable operation in hazardous environments.

    Include the protection rating
    It is also important to verify the protection rating of the pressure transmitter. This rating indicates how effectively the device is safeguarded against the entry of foreign objects and liquids, both of which could potentially lead to a fire or explosion. By selecting a pressure transmitter with the correct safety ratings, you can help ensure a safe and efficient working environment.

  • For an AC drive to control the speed of an AC induction motor, what harmonic correction method is perfect for industrial facilities?

    For an AC drive to control the speed of an AC induction motor, what harmonic correction method is perfect for industrial facilities?

    To address harmonics introduced by AC drives in industrial facilities, the ideal harmonic correction method depends on the specific system requirements, facility load conditions, and compliance needs (e.g., IEEE 519 standards). Here are commonly used harmonic mitigation techniques suitable for industrial applications:

    1. Passive Harmonic Filters
    • Description: Passive filters are tuned to specific harmonic frequencies (e.g., 5th, 7th, 11th) and use inductors, capacitors, and resistors to mitigate harmonics.
    • Advantages:
    • Cost-effective and simple to implement.
    • Highly reliable with minimal maintenance requirements.
    • Best Suited For:
    • Systems with predictable harmonic profiles.
    • Facilities that need basic harmonic correction to meet compliance.
    • Limitations:
    • Limited to specific frequencies; effectiveness decreases with varying loads.
    1. Active Harmonic Filters
    • Description: Active filters monitor harmonic content in real-time and inject counter-phase currents to cancel harmonics dynamically.
    • Advantages:
    • Highly effective at mitigating harmonics across a broad spectrum.
    • Adaptable to varying loads and non-linear conditions.
    • Best Suited For:
    • Facilities with multiple drives or complex harmonic profiles.
    • Applications requiring stringent harmonic control (e.g., IEEE 519 compliance).
    • Limitations:
    • Higher initial cost.
    • Requires a more complex control system.
    1. Line Reactors
    • Description: Reactors (typically 3% or 5% impedance) are installed on the input side of the AC drive to limit harmonic currents.
    • Advantages:
    • Cost-effective and compact.
    • Reduces harmonic distortion and protects the drive from voltage spikes.
    • Best Suited For:
    • Systems with moderate harmonic distortion or where cost constraints are significant.
    • Limitations:
    • Less effective for high harmonic mitigation needs.
    • Cannot eliminate higher-order harmonics.
    1. DC Link Chokes
    • Description: Installed on the DC bus of the AC drive, these chokes reduce ripple currents and suppress harmonics at the drive’s source.
    • Advantages:
    • Improves power quality and reduces stress on the DC bus capacitors.
    • Compact and integrated within the drive in some models.
    • Best Suited For:
    • Drives with high harmonic distortion levels in their output.
    • Limitations:
    • Limited overall harmonic reduction compared to external filters.
    1. 12-Pulse or 18-Pulse Rectifiers
    • Description: Use multi-pulse transformers to phase-shift harmonics, reducing lower-order harmonic currents.
    • Advantages:
    • Effective at mitigating lower-order harmonics (e.g., 5th and 7th).
    • Reliable and robust for industrial environments.
    • Best Suited For:
    • Medium to large drives in facilities with a high harmonic load.
    • Limitations:
    • Expensive and bulky.
    • Limited effectiveness against higher-order harmonics.
    1. Harmonic Reducing Transformers (HRTs)
    • Description: Transformers designed to mitigate harmonics by phase-shifting and cancellation techniques.
    • Advantages:
    • Reduces harmonics while also providing voltage matching.
    • Durable and suitable for industrial settings.
    • Best Suited For:
    • Facilities with high harmonic demands and large motor loads.
    • Limitations:
    • Expensive and heavy.
    1. Active Front-End (AFE) Drives
    • Description: AC drives with built-in active rectification technology to mitigate harmonics at the source.
    • Advantages:
    • Excellent harmonic mitigation without external components.
    • Improves power factor and eliminates the need for additional filters.
    • Best Suited For:
    • Facilities with stringent harmonic requirements and budget for advanced drives.
    • Limitations:
    • Higher cost compared to standard drives.
    • Requires skilled maintenance.

    Which Method is “Perfect”?

    For industrial facilities, Active Harmonic Filters and Active Front-End Drives are considered the most effective methods for harmonic correction because they:

    • Provide comprehensive harmonic mitigation.
    • Adapt to varying loads and dynamic systems.
    • Meet stringent compliance standards (e.g., IEEE 519).

    However, cost and system complexity must also be considered. For moderate harmonic correction needs, passive filters, line reactors, or 12-pulse rectifiers may provide a more cost-effective solution. A harmonic analysis of the facility’s electrical system is recommended to select the most suitable method.

  • How do semiconductors benefit home appliances?

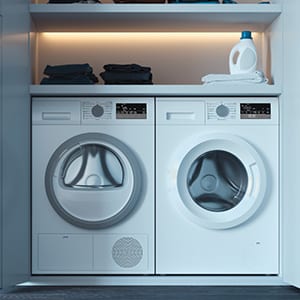

    How do semiconductors benefit home appliances?

    Semiconductors play a critical role in modern home appliances, enhancing their performance, energy efficiency, reliability, and functionality. Here’s how they benefit home appliances:

    1. Energy Efficiency
    • Efficient Power Conversion:
    • Semiconductors like MOSFETs and IGBTs are used in power electronics to convert and manage electricity efficiently, reducing energy loss.
    • Appliances like refrigerators, air conditioners, and washing machines utilize inverters powered by semiconductors to optimize power usage.
    • Smart Energy Management:
    • Sensors and microcontrollers, built with semiconductors, enable appliances to adjust their operation based on load, temperature, or user preferences, saving energy.
    1. Enhanced Performance
    • Precision Control:
    • Semiconductors in motor drives (e.g., in washing machines or dishwashers) provide precise speed and torque control, resulting in better cleaning, drying, or spinning performance.
    • Faster Operation:
    • Semiconductor technologies improve the efficiency of components like microwave ovens and induction cooktops, leading to faster cooking or heating.
    1. Compact and Lightweight Designs
    • Miniaturization:
    • Semiconductors allow appliances to be smaller and more lightweight without sacrificing functionality. For example, modern power supply units and circuit boards in televisions are more compact due to advancements in semiconductor technology.
    1. Smart Features and Connectivity
    • Integration with IoT:
    • Microcontrollers, system-on-chip (SoC) solutions, and wireless modules allow appliances to connect to the internet, enabling features like remote control, monitoring, and smart home integration.
    • Automation:
    • Semiconductors enable appliances to automatically adjust settings (e.g., a thermostat maintaining temperature or a washing machine optimizing water levels).
    1. Improved Safety
    • Surge Protection:
    • Semiconductor-based protection devices like TVS diodes and MOVs shield appliances from voltage spikes, preventing damage.
    • Thermal Management:
    • Sensors monitor and regulate internal temperatures, ensuring safe operation and preventing overheating.
    • Circuit Protection:
    • Integrated circuits detect faults or abnormal conditions and shut down the appliance to prevent damage.
    1. Durability and Reliability
    • Longer Lifespan:
    • Advanced semiconductors improve the durability of components, leading to appliances that last longer with fewer failures.
    • Reduced Maintenance:
    • Semiconductor-based systems are less prone to mechanical wear, reducing the need for regular servicing.
    1. Noise Reduction
    • Quieter Motors:
    • Semiconductor-based motor drives reduce electromagnetic noise, allowing appliances like air conditioners, refrigerators, and fans to operate more quietly.
    • Smooth Operation:
    • Soft starters and inverters minimize mechanical vibrations, further reducing operational noise.
    1. Renewable Energy Integration
    • Solar-Powered Appliances:
    • Semiconductors in power inverters enable appliances to operate efficiently on solar or renewable energy sources.
    • Battery-Operated Devices:
    • Semiconductors manage power storage and consumption in appliances using rechargeable batteries, like robotic vacuum cleaners.

    Examples of Appliances Leveraging Semiconductors

    1. Refrigerators:
    • Use temperature sensors and microcontrollers to optimize cooling and reduce energy usage.
    1. Washing Machines:
    • Employ inverter technology for variable motor speed and efficient water usage.
    1. Air Conditioners:
    • Utilize semiconductor-controlled compressors for precise temperature control and reduced energy consumption.
    1. Microwave Ovens:
    • Rely on power electronics for efficient operation and digital displays for user control.
    1. Smart TVs:
    • Incorporate SoCs for advanced processing, connectivity, and high-resolution displays.
    1. LED Lighting:
    • LEDs, powered by semiconductors, offer energy-efficient and durable lighting solutions.

    Semiconductors enhance home appliances by improving energy efficiency, adding smart features, ensuring safety, and enabling compact designs. They are fundamental to modernizing appliances, reducing energy consumption, and delivering convenience and performance in everyday life.



  • Simple Ways to Test Your Earth Leakage Circuit Breakers

    Simple Ways to Test Your Earth Leakage Circuit Breakers

    Testing your Earth Leakage Circuit Breaker (ELCB) is crucial to ensure it is functioning correctly and providing the necessary protection against electric shocks and leakage currents. Here are simple methods to test your ELCB:

    1. Use the Built-In Test Button

    Most ELCBs have a “Test” button on the device.

    Steps:

    1. Locate the Test Button:
    • Find the button labeled “Test” (often marked with “T”).
    1. Press the Test Button:
    • While the ELCB is on, press the button. This simulates a leakage current by creating a small imbalance in the circuit.
    1. Observe the Trip:
    • The ELCB should immediately trip and disconnect power.
    1. Reset the ELCB:
    • Turn the ELCB back on by switching it to the “ON” position after the test.

    Frequency:

    • Perform this test monthly or as recommended by the manufacturer.
    1. Measure Tripping Current and Time Using a Leakage Tester

    For a more accurate test, use an ELCB or RCD tester.

    Steps:

    1. Connect the Tester:
    • Plug the tester into a socket protected by the ELCB or connect it directly to the circuit.
    1. Select the Test Current:
    • Set the tester to simulate a leakage current (e.g., 30 mA for residential ELCBs).
    1. Activate the Test:
    • The tester will simulate the leakage current.
    1. Observe Tripping:
    • The ELCB should trip when the test current is applied.
    1. Check the Tripping Time:
    • The tester will display the tripping time (e.g., less than 300 milliseconds for a 30 mA device).

    Frequency:

    • Perform this test annually or during periodic maintenance.
    1. Simulate a Leakage Current Manually

    This method requires creating a controlled leakage current to test the ELCB.

    Steps:

    1. Turn Off the Power:
    • Ensure the power is off to prevent accidents.
    1. Create a Leakage Path:
    • Use a resistor (e.g., 10kΩ) or an appropriate load to connect between the live wire and the earth terminal.
    1. Turn the Power Back On:
    • Power the circuit and observe the ELCB’s response.
    1. Observe the Trip:
    • The ELCB should trip immediately.

    Caution:

    • This method requires technical knowledge and should be performed by a qualified electrician.
    1. Inspect for Proper Operation During Normal Use

    Observe the ELCB’s behavior during everyday operation.

    Indicators of Proper Functioning:

    • The ELCB trips during actual fault conditions, such as when there is a genuine earth leakage.
    • No nuisance tripping during normal operation.
    1. Visual Inspection

    Ensure the ELCB is in good condition.

    Steps:

    1. Check for Damage:
    • Look for cracks, discoloration, or signs of overheating.
    1. Verify Connections:
    • Ensure all wires are securely connected to the ELCB terminals.
    1. Confirm Indicators:
    • Check that the indicator (if present) shows the ELCB is operational.

    Precautions While Testing

    • Turn Off Appliances: Before testing, disconnect any sensitive appliances to avoid damage.
    • Follow Manufacturer Instructions: Always refer to the ELCB’s manual for specific testing procedures.
    • Avoid Overloading: Do not simulate leakage currents higher than the rated threshold of the ELCB.

    When to Replace an ELCB

    • The ELCB fails the test and does not trip.
    • The ELCB trips erratically or does not reset.
    • Visible physical damage or excessive wear.

    Regular testing ensures your ELCB operates correctly and provides critical protection against electrical hazards. If you’re unsure about any test, consult a qualified electrician.

  • A Quick Breakdown of Common Types of Fans and Blowers

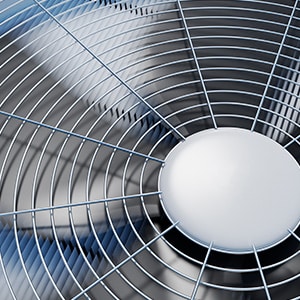

    A Quick Breakdown of Common Types of Fans and Blowers

    Here’s a quick breakdown of the common types of fans and blowers, their key features, and typical applications:

    Fans

    Fans move large volumes of air at low pressure and are commonly used for ventilation and cooling.

    1. Axial Fans
    • Description: Air flows parallel to the fan’s axis. The blades rotate around a central hub.
    • Key Features:
    • High airflow, low pressure.
    • Simple design, energy-efficient.
    • Applications:
    • HVAC systems, cooling towers, exhaust fans, and general ventilation.
    1. Centrifugal Fans
    • Description: Air enters axially and exits radially, forced by the blades through a centrifugal motion.
    • Key Features:
    • Higher pressure capability than axial fans.
    • Suitable for systems with ductwork or resistance.
    • Applications:
    • Industrial ventilation, material handling, and dust collection systems.
    1. Mixed-Flow Fans
    • Description: A hybrid between axial and centrifugal fans, offering a combination of airflow and pressure characteristics.
    • Key Features:
    • Moderately high pressure and airflow.
    • Compact and efficient.
    • Applications:
    • HVAC systems, compact ventilation units, and medium-resistance ductwork.
    1. Propeller Fans
    • Description: A type of axial fan with large blades resembling a propeller.
    • Key Features:
    • High airflow with minimal resistance.
    • Inefficient in high-pressure systems.
    • Applications:
    • Agricultural ventilation, exhaust fans, and cooling towers.

    Blowers

    Blowers move air at a higher pressure than fans, suitable for focused and powerful airflow.

    1. Centrifugal Blowers
    • Description: Operate similarly to centrifugal fans, creating high pressure through centrifugal force.
    • Key Features:
    • High-pressure capability.
    • Robust and suitable for demanding environments.
    • Applications:
    • HVAC systems, industrial drying, pneumatic conveying, and dust control.
    1. Positive Displacement Blowers
    • Description: Use rotating mechanisms (e.g., lobes or screws) to move air in discrete volumes.
    • Key Features:
    • Constant airflow, regardless of pressure variations.
    • Ideal for applications needing steady and precise airflow.
    • Applications:
    • Wastewater aeration, pneumatic conveying, and high-pressure industrial systems.
    1. Regenerative Blowers (Side Channel Blowers)
    • Description: Air is recirculated within the blower housing for increased pressure.
    • Key Features:
    • Moderate pressure, high efficiency.
    • Oil-free operation.
    • Applications:
    • Aeration, vacuum lifting, and small-scale industrial applications.
    1. Inline Duct Blowers
    • Description: Installed directly within ducts to enhance airflow in ventilation systems.
    • Key Features:
    • Compact and efficient.
    • Low-to-moderate pressure.
    • Applications:
    • HVAC duct boosting, exhaust systems, and confined-space ventilation.

    Comparison of Fans and Blowers

    Feature Fans Blowers
    Airflow Direction Parallel or slightly radial Radial or focused
    Pressure Low (1-2 PSI) Moderate to high (up to 10 PSI)
    Efficiency High in free-flow systems High in confined or ducted systems
    Common Use Cases Ventilation, cooling, exhaust Industrial drying, pneumatic systems



    Choosing the Right Type

    • Use fans for large-volume, low-pressure airflow applications like ventilation or cooling.
    • Opt for blowers in systems needing higher pressure or precise air movement, such as material handling or industrial processes.



  • What are N+1, 2N, and 2(N+1) redundancy?

    What are N+1, 2N, and 2(N+1) redundancy?

    N+1, 2N, and 2(N+1) redundancy are configurations used to improve the reliability and availability of systems, particularly in critical power and infrastructure applications like data centers, hospitals, and industrial operations. Here’s an explanation of each:

    1. N+1 Redundancy
    • Definition:
    • The system has N units to handle the full load, plus 1 additional (spare) unit for redundancy.
    • If one component fails, the spare unit takes over, ensuring uninterrupted operation.
    • Example:
    • A UPS system with a load requirement of 100 kW has two 100 kW UPS units (1 active + 1 spare).
    • If one UPS fails, the remaining UPS can still handle the load.
    • Benefits:
    • Cost-effective redundancy for small-to-medium reliability needs.
    • Handles single points of failure effectively.
    • Limitations:
    • If multiple failures occur simultaneously, the system may fail.
    • Applications:
    • Small data centers, critical HVAC systems, or backup power for single facilities.
    1. 2N Redundancy
    • Definition:
    • The system has two completely independent sets of N components, each capable of handling the full load.
    • One system operates while the other remains on standby or operates in parallel.
    • Example:
    • For a 200 kW load, there are two independent systems, each with a 200 kW capacity.
    • If one system fails, the other system can handle the entire load without interruption.
    • Benefits:
    • Provides 100% redundancy, ensuring high reliability.
    • Protects against multiple points of failure and maintenance downtime.
    • Limitations:
    • More expensive due to the duplication of infrastructure.
    • Requires more physical space and energy to operate and maintain.
    • Applications:
    • Large data centers, hospitals, and critical facilities with zero tolerance for downtime.
    1. 2(N+1) Redundancy
    • Definition:
    • Combines the features of 2N and N+1 redundancy by having two independent systems, each with N+1 components.
    • This setup offers additional resilience by ensuring each independent system has a spare unit.
    • Example:
    • For a 200 kW load:
    • Two independent systems are installed.
    • Each system has 200 kW capacity plus one spare unit (e.g., 3×100 kW UPS units in each system).
    • Benefits:
    • The highest level of redundancy, capable of handling multiple simultaneous failures.
    • Maintenance or repairs can occur without impacting system availability.
    • Limitations:
    • Significantly higher cost due to over-provisioning.
    • Requires more physical space and infrastructure resources.
    • Applications:
    • Mission-critical operations like banking systems, telecom networks, or large-scale cloud data centers where downtime is unacceptable.

    Comparison Table

    Redundancy Type Configuration System Capacity Resilience Cost Common Uses
    N+1 N + 1 spare Full load + 1 spare Handles a single failure Moderate Small/medium data centers, HVAC
    2N 2 independent N systems Full load in each system Handles multiple failures High Large data centers, hospitals
    2(N+1) 2 independent N+1 systems Full load + 1 spare in each Highest redundancy for critical loads Very High Mission-critical facilities



    How to Choose the Right Redundancy?

    • N+1: Cost-effective for smaller setups where downtime risk is low.
    • 2N: Ideal for facilities requiring very high uptime and can justify the cost.
    • 2(N+1): The ultimate choice for mission-critical systems where multiple failures or maintenance should not impact operations.

    By balancing cost, risk tolerance, and operational needs, you can select the redundancy configuration that best suits your application.



  • What is the difference between vacuum and linear air pumps?

    What is the difference between vacuum and linear air pumps?

    Vacuum pumps and linear air pumps are both used to move air, but they operate differently and serve distinct purposes. Here’s a detailed comparison:

    1. Primary Function
    • Vacuum Pumps:
    • Designed to create a vacuum by removing air or gases from an enclosed space, lowering the pressure below atmospheric levels.
    • Used to pull air out of a system or container.
    • Linear Air Pumps:
    • Designed to move or push air in a continuous, pulsation-free manner.
    • Primarily used to supply air at low pressure for aeration or inflation purposes.
    1. Mechanism of Operation
    • Vacuum Pumps:
    • Use mechanisms like rotary vanes, pistons, or diaphragms to extract air and create a vacuum.
    • Can achieve high levels of vacuum depending on the design (e.g., partial vacuum or near-perfect vacuum).
    • Linear Air Pumps:
    • Operate using an electromagnet and a flexible diaphragm.
    • Alternating current drives the diaphragm back and forth, creating a consistent airflow without compressing or significantly reducing pressure.
    1. Air Pressure and Flow
    • Vacuum Pumps:
    • Focus on creating low or negative pressure.
    • Typically used in systems that require suction (e.g., laboratory vacuum systems, industrial material handling).
    • Linear Air Pumps:
    • Provide low-pressure air with a steady flow.
    • Commonly used in applications where gentle, continuous airflow is needed (e.g., pond aeration, medical devices).
    1. Applications
    • Vacuum Pumps:
    • Medical vacuum systems (e.g., suction devices).
    • Industrial processes like vacuum sealing, material handling, or molding.
    • HVAC systems for evacuating air from refrigerant lines.
    • Laboratories for research requiring low-pressure environments.
    • Linear Air Pumps:
    • Aeration in aquariums, ponds, or wastewater treatment.
    • Medical devices like oxygen concentrators or CPAP machines.
    • Inflating or deflating products that require steady airflow.
    • Low-pressure industrial air supply.
    1. Efficiency and Noise
    • Vacuum Pumps:
    • Efficiency depends on the vacuum level required; some models can be energy-intensive.
    • Noise levels can vary widely based on design (rotary vane pumps are noisier; diaphragm models are quieter).
    • Linear Air Pumps:
    • Typically energy-efficient and designed for continuous operation.
    • Known for quiet operation due to minimal moving parts and smooth air output.
    1. Cost and Maintenance
    • Vacuum Pumps:
    • Often more expensive, especially high-performance models.
    • Maintenance involves parts like seals, filters, and oil (if applicable for oil-lubricated models).
    • Linear Air Pumps:
    • Generally more affordable and require minimal maintenance.
    • Maintenance typically involves replacing diaphragms or cleaning filters periodically.



    Key Differences

    Feature Vacuum Pumps Linear Air Pumps
    Purpose Create suction or low pressure Provide steady low-pressure air
    Pressure Range Negative pressure (vacuum) Positive, low-pressure output
    Flow Characteristics Variable, depending on vacuum level Steady, pulsation-free airflow
    Mechanism Rotary, diaphragm, or piston Electromagnetic diaphragm
    Common Use Cases Suction and vacuum applications Aeration and continuous airflow
    Energy Efficiency Moderate to high (varies) Typically high
    Noise Can be noisy Quiet



    • Vacuum Pumps are ideal for applications requiring negative pressure or suction, such as laboratory or industrial vacuum systems.
    • Linear Air Pumps are best for delivering steady, low-pressure airflow in applications like aeration or low-pressure air supply.

    The choice between the two depends entirely on whether you need to create a vacuum or provide a gentle, continuous flow of air.



  • What is the difference between voltage and current Earth Leakage Circuit Breakers?

    What is the difference between voltage and current Earth Leakage Circuit Breakers?

    Voltage Earth Leakage Circuit Breakers (Voltage-ELCBs) and Current Earth Leakage Circuit Breakers (Current-ELCBs) are both designed to protect people and equipment from electric shocks and faults due to leakage currents. However, they operate on different principles and have distinct features. Here’s a breakdown of the differences:

    1. Operating Principle
    • Voltage Earth Leakage Circuit Breaker (Voltage-ELCB):
    • Detects leakage based on voltage between the system’s earthing point and the earth (ground).
    • Trips when this voltage exceeds a set threshold, indicating a leakage or fault condition.
    • Current Earth Leakage Circuit Breaker (Current-ELCB) (also known as Residual Current Device or RCD):
    • Detects leakage based on current imbalance between the live (phase) and neutral wires.
    • Trips when the difference (residual current) exceeds a set threshold, indicating that current is leaking to the ground.
    1. Sensitivity
    • Voltage-ELCB:
    • Less sensitive to small leakages.
    • Typically requires a substantial voltage difference (e.g., 50V or more) to trip.
    • Current-ELCB:
    • Highly sensitive to even small leakage currents, such as 30 mA (sufficient to prevent fatal shocks).
    • Can detect minor leakages that may not cause a significant voltage rise.
    1. Ground Connection Requirement
    • Voltage-ELCB:
    • Requires a dedicated earth connection.
    • Relies on the voltage between the earthing point of the system and the ground.
    • Current-ELCB:
    • Does not rely on a dedicated earth connection.
    • Works based on the current imbalance, making it suitable for systems without an earth connection.
    1. Applications
    • Voltage-ELCB:
    • Used in older installations or systems with proper earthing.
    • Now largely obsolete and replaced by Current-ELCBs in most applications.
    • Current-ELCB:
    • Widely used in modern systems, including residential, commercial, and industrial installations.
    • Suitable for protecting people and equipment from electric shocks, fire hazards, and equipment damage.
    1. Nuisance Tripping
    • Voltage-ELCB:
    • More prone to nuisance tripping due to voltage fluctuations or other transient conditions.
    • Current-ELCB:
    • Less likely to trip unnecessarily, as it responds specifically to current imbalances.
    1. Advantages
    • Voltage-ELCB:
    • Simple design.
    • Effective in older systems where proper earthing is in place.
    • Current-ELCB:
    • Higher sensitivity, offering better protection.
    • Suitable for modern electrical systems and provides broader fault coverage.
    1. Limitations
    • Voltage-ELCB:
    • Ineffective if the earthing system is disconnected or damaged.
    • Cannot detect low-level leakages that might be hazardous.
    • Current-ELCB:
    • Requires proper calibration to prevent nuisance tripping.
    • Slightly more expensive than Voltage-ELCBs due to advanced functionality.

    Comparison Table

    Feature Voltage-ELCB Current-ELCB
    Detection Method Voltage difference to earth Current imbalance (residual current)
    Sensitivity Low (large faults) High (small leakage currents)
    Earth Connection Requires dedicated earth connection No dedicated earth connection needed
    Applications Older installations Modern systems (residential, industrial)
    Nuisance Tripping Prone to voltage fluctuations Less prone
    Popularity Obsolete Widely used



    • Voltage-ELCBs are older devices that work based on voltage detection but are less sensitive and depend on proper earthing.
    • Current-ELCBs (RCDs) are more modern and effective, offering greater sensitivity, broader application, and better protection against electrical hazards.

    For new installations, Current-ELCBs are the preferred choice due to their improved safety and reliability.



  • Trends and future direction of HMIs

    Trends and future direction of HMIs

    The latest trends in HMI technology are driving the next phase of industrial advancement:

    3D System Visualizations
    The integration of 3D modeling and virtual reality (VR) techniques is giving rise to a new generation of HMIs. This enables a more immersive, spatial understanding of industrial systems, leading to improved decision-making and enhanced situational awareness.

    Voice and Gesture Control Interfaces
    Imagine controlling industrial equipment using hand gestures or voice commands. Gesture control and voice recognition are gaining traction in industrial environments, enabling hands-free operation. This technology is particularly beneficial in hazardous settings where manual interaction could be risky.

    Mobile HMIs
    Many HMI providers now offer mobile solutions, which are invaluable for operators needing to monitor and manage systems remotely. Mobile devices and tablets are also being used as HMIs through dedicated apps, facilitating remote control and monitoring—a growing asset in today’s flexible work environments and distributed manufacturing.

    Looking ahead, the future of HMIs is set to elevate supervisory control, data acquisition, and process management to new heights.

    AI Integration for Predictive Maintenance
    HMIs will increasingly incorporate AI and machine learning to deliver predictive analytics, allowing for the anticipation of equipment failures before they occur. This proactive maintenance approach will significantly reduce both downtime and maintenance costs.

    Human-Centered Design
    As industrial systems grow, HMIs will increasingly focus on user-centered design. Interfaces will be customized to meet the unique needs of individual operators, considering their preferences and skill levels.

    Wearable HMIs
    Wearable technology is expanding beyond fitness, making its way into industrial HMIs. Smart glasses and wrist-worn devices are providing operators with hands-free interfaces for controlling and monitoring processes, opening up new possibilities for efficiency and safety.

  • Key Factors for Improving Uptime

    Key Factors for Improving Uptime

    Improving uptime in Uninterruptible Power Supply (UPS) systems is critical for ensuring continuous power to critical loads. To maximize reliability and availability, here are the key factors to consider:

    1. Proper Sizing and Design

    Load Analysis

    • Accurate Load Calculation: Assess the power requirements of connected equipment (kW and kVA). Include inrush currents for motors and other inductive loads.
    • Future Scalability: Size the UPS to accommodate current and future load growth.

    Redundancy

    • Redundant Configurations: Implement N+1 or 2N redundancy to ensure backup power even during UPS failure or maintenance.
    • Parallel Systems: Use parallel UPS systems to share loads and provide fault tolerance.
    1. High-Quality Components
    • Use reliable batteries (e.g., lithium-ion for longer life and reliability) and ensure they meet the load requirements.
    • Invest in high-efficiency UPS systems with low failure rates. Choose components with proven performance in your operating environment.
    1. Preventive Maintenance

    Regular Inspections

    • Periodically inspect batteries, capacitors, fans, and other components.
    • Check for physical wear, corrosion, or other signs of degradation.

    Scheduled Replacements

    • Replace batteries and other consumable components before their end-of-life.
    • Use manufacturer-recommended replacement cycles for optimal performance.

    Firmware Updates

    • Keep the UPS firmware up-to-date to enhance functionality and address known vulnerabilities.
    1. Real-Time Monitoring and Diagnostics

    Monitoring Systems

    Use Remote Monitoring Tools to track:

    • Battery health and runtime.
    • Load levels.
    • Temperature and environmental conditions.

    Predictive Maintenance

    • Employ analytics to predict potential failures based on usage trends and environmental conditions.
    • Use alarms and notifications for early warning of issues.
    1. Environmental Control

    Temperature Management

    • Maintain optimal operating temperatures (e.g., 20–25°C for lead-acid batteries).
    • Install HVAC systems or ensure proper airflow in UPS rooms.

    Dust and Humidity Control

    • Use enclosures or filters to minimize dust accumulation.
    • Ensure relative humidity is within acceptable levels to prevent condensation or corrosion.
    1. Power Quality Management

    Surge Protection

    • Install Surge Protection Devices (SPDs) upstream of the UPS to handle voltage spikes.

    Harmonic Filtering

    • Use harmonic filters to reduce distortion from non-linear loads, ensuring cleaner power for the UPS.

    Voltage Stabilization

    • Employ automatic voltage regulators (AVRs) or stabilizers for fluctuating input power.
    1. Testing and Training

    Regular Load Testing

    • Conduct periodic load tests to verify the UPS’s ability to handle critical loads.
    • Simulate power failures to ensure seamless switching to battery or backup power.

    Training Personnel

    • Train operators and maintenance staff on proper usage and troubleshooting.
    • Maintain clear standard operating procedures (SOPs) for emergencies.
    1. Use Modular UPS Systems
    • Scalability:
    • Modular systems allow easy expansion to meet growing power demands.
    • Redundancy:
    • Modules can be hot-swapped without interrupting power to the load.
    1. Implement Advanced Battery Technology

    Lithium-Ion Batteries

    • Longer lifespan (8–15 years compared to 3–5 years for lead-acid).
    • Higher temperature tolerance and lower maintenance requirements.

    Battery Management Systems (BMS)

    • Monitor battery health, charge/discharge cycles, and temperature for optimal performance.
    1. Emergency Preparedness

    Backup Generators

    • Pair the UPS with backup generators for extended runtime during prolonged outages.
    • Use Automatic Transfer Switches (ATS) for seamless power transfer.

    Disaster Recovery Plans

    • Develop and test contingency plans for critical failures or extended outages.
    • Maintain an updated inventory of critical loads and power requirements.
    1. Compliance with Standards
    • Adhere to relevant standards and guidelines (e.g., IEC 62040, IEEE 446) for UPS design, installation, and maintenance.
    • Regularly audit systems for compliance and safety.
    1. Evaluate System Efficiency
    • Use high-efficiency UPS systems (e.g., 96% or higher) to reduce heat generation and energy losses.
    • Employ Eco Mode or energy-saving features where appropriate.

    Key Metrics to Monitor for Uptime

    1. Battery Runtime: Ensure sufficient backup time for critical loads during outages.
    2. Mean Time Between Failures (MTBF): High MTBF indicates reliable equipment.
    3. Load Percentage: Keep loads within optimal operating ranges (e.g., 40–80% capacity).
    4. Temperature Stability: Monitor ambient and component temperatures to avoid overheating.

    Maximizing UPS uptime requires a comprehensive strategy encompassing proper design, proactive maintenance, environmental control, and advanced monitoring systems. By addressing these factors, you can ensure the reliability and resilience of your critical power infrastructure.
