  • What’s the Difference Between a 3-Pole and 4-Pole Circuit Breaker?

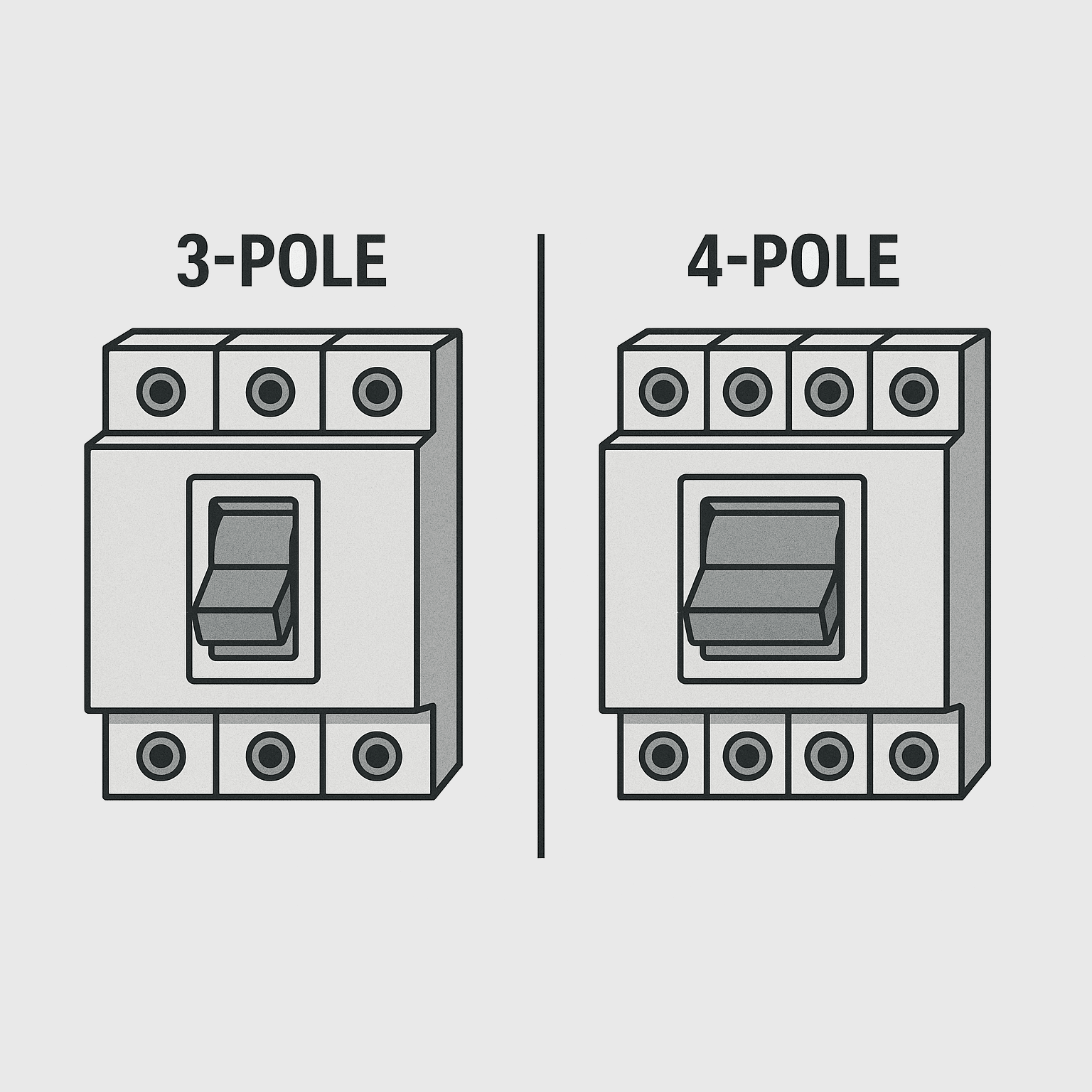

    What’s the Difference Between a 3-Pole and 4-Pole Circuit Breaker?

    The main difference between a 3-pole and a 4-pole circuit breaker lies in the number of conductors they switch and how they handle the neutral line in addition to the phases.

    3-Pole Breaker

    What it does:

    • Designed to interrupt three-phase power: L1, L2, and L3.
    • All three phases are switched simultaneously.

    Common Applications:

    • Three-phase motors and equipment
    • Industrial and commercial systems
    • Where neutral doesn’t need switching

    Notes:

    • Neutral (if present) is not interrupted by the breaker.
    • Typically used where the neutral is grounded or managed separately.



    4-Pole Breaker

    What it does:

    • Switches three phases (L1, L2, L3) plus the neutral conductor.
    • All four poles trip together.

    Common Applications:

    • Unbalanced three-phase loads with a neutral (e.g., mixed 3-phase + single-phase)
    • Systems where neutral switching is required for safety or isolation
    • TN-S, TT, and IT power distribution systems
    • Generators, UPS systems, and sensitive equipment

    Notes:

    • Allows complete isolation of all conductors, including neutral.
    • Reduces risk of potential differences or stray currents on neutral during maintenance.

    Key Differences at a Glance

    Feature

    3-Pole Breaker

    4-Pole Breaker

    Phases Switched

    3 (L1, L2, L3)

    3 (L1, L2, L3) + Neutral

    Neutral Handling

    Passes through or external

    Switched with the phases

    Application Type

    Balanced loads, motors

    Mixed loads, sensitive equipment

    Isolation Capability

    Phase only

    Full (phases + neutral)

    Cost & Size

    Smaller, less expensive

    Larger, more expensive

    Summary

    • Use a 3-pole breaker for standard three-phase systems where neutral switching is not required.
    • Use a 4-pole breaker when full isolation—including the neutral—is necessary, especially in systems where the neutral may carry current or needs disconnection for safety and system integrity.
  • Inline vs. Clamp-On Flowmeters: Pros, Cons, and Use Cases

    Inline vs. Clamp-On Flowmeters: Pros, Cons, and Use Cases

    1. Inline Flowmeters



    Definition:

    Inline flowmeters are installed directly into the pipeline, with the fluid flowing through the sensor body.



    Pros

    • High accuracy and repeatability

    Ideal for custody transfer and critical process control.

    • Broad range of measurement technologies

    Supports electromagnetic, turbine, Coriolis, vortex, etc.

    • Supports high-pressure/high-temperature applications

    Built to withstand extreme conditions.



    Cons

    • Requires pipe cutting and system shutdown

    Installation can be disruptive and costly.

    • Higher installation costs

    Includes labor, fittings, and downtime.

    • More maintenance (depending on type)

    Some inline meters have moving parts that may wear.



    Use Cases

    • Chemical dosing in process industries
    • Custody transfer in oil & gas
    • Water utility metering
    • High-accuracy batching and blending systems



    2. Clamp-On Flowmeters

    Definition:

    Clamp-on (ultrasonic) flowmeters measure flow from outside the pipe by transmitting and receiving ultrasonic signals through the pipe wall.



    Pros

    • Non-intrusive, no pipe cutting required

    Fast, low-cost installation without downtime.

    • Portable options available

    Ideal for temporary measurement, audits, or spot-checking.

    • No contact with fluid

    Safe for hazardous, corrosive, or sterile media.



    Cons

    • Lower accuracy compared to inline

    Especially under poor pipe or fluid conditions.

    • Affected by pipe material, thickness, and alignment

    Requires clean, filled pipes with good acoustic properties.

    • Not suitable for all pipe sizes or materials

    Performance may vary across plastic, lined, or heavily corroded pipes.



    Use Cases

    • Energy audits (HVAC, chiller loops)
    • Temporary flow verification or spot-checking
    • Water/wastewater applications (reuse water, influent/effluent)
    • Applications where shutdown is not feasible

    Summary Table

    Feature

    Inline Flowmeter

    Clamp-On Flowmeter

    Installation

    Invasive, requires pipe cutting

    Non-invasive, clamps onto pipe exterior

    Accuracy

    High

    Moderate (depends on application)

    Downtime Required

    Yes

    No

    Maintenance

    Moderate to high (based on type)

    Low

    Fluid Compatibility

    Depends on sensor type

    Conductive or non-conductive (ultrasonic)

    Portability

    Fixed

    Portable and fixed models available

    Typical Uses

    Permanent process control

    Temporary or retrofit monitoring



  • What to Consider When Replacing a Legacy Blower with a Regenerative (RC) Model

    What to Consider When Replacing a Legacy Blower with a Regenerative (RC) Model

    Upgrading from a legacy blower to a regenerative (RC) blower can improve performance, reduce maintenance, and lower operating costs—but only if the replacement is properly matched to your system. Below are the key factors to evaluate when making the switch:

    1. Operating Pressure and Vacuum Requirements
    • Determine system specs: What pressure or vacuum level does your application require?
    • Match performance curves: RC blowers operate best in low to moderate pressure/vacuum ranges (typically up to ~7 psi or -14 inHg).
    • If your legacy blower was oversized, an RC model may achieve the same results with better efficiency.
    1. Flow Rate (CFM)
    • Compare the actual flow demand of your system (not just nameplate ratings).
    • RC blowers often deliver higher flow at lower pressures, so a single-stage model might replace a legacy blower more effectively than expected.
    • Use manufacturer-provided performance curves to match flow and pressure points.
    1. Motor Power and Energy Efficiency
    • Check the horsepower/kW of your legacy unit.
    • RC blowers typically use TEFC motors and can be paired with VFDs for better control and energy savings.
    • Ensure your power supply (voltage/phase) is compatible with the new unit.
    1. Mounting and Footprint
    • Legacy blowers may differ in size, orientation, and mounting dimensions.
    • Check blower dimensions and footprint to ensure a proper fit—or plan for minor modifications to brackets or base plates.
    1. Noise Levels
    • Legacy blowers—especially positive displacement or vane types—can be noisy.
    • RC blowers generally operate more quietly; consider this an added benefit in noise-sensitive areas like labs or workstations.
    1. Maintenance and Reliability
    • Legacy units may require frequent lubrication, belt replacement, or rebuilds.
    • RC blowers have fewer moving parts and no oil or belts, which drastically reduces maintenance.
    • Verify expected service life and bearing replacement intervals for the RC model.
    1. Application Compatibility
    • Ensure the RC blower is suitable for the medium you’re handling (clean air, humid air, dust, etc.).
    • Some RC models can be used with filters, silencers, or corrosion-resistant coatings depending on the environment.
    1. Compliance and Certifications
    • Confirm that the new blower meets industry-specific certifications (e.g., UL, CE, RoHS).
    • This is especially important in pharma, food, or hazardous area installations.
    1. One-Stage vs. Two-Stage RC
    • If your legacy blower delivered higher pressure, you may need a two-stage RC blower.
    • For high volume, low pressure, a single-stage will likely suffice.

    Pro Tip:

    Don’t just match horsepower—match performance.

    Focus on system duty points (CFM and pressure) rather than replacing “like-for-like” on nameplate specs.

  • Trends in Compact and High-Density IGBT Module Designs

    Trends in Compact and High-Density IGBT Module Designs

    As the demand for smaller, more efficient, and higher-performance power electronics increases—especially in electric vehicles (EVs), renewable energy systems, and industrial drives—IGBT module designs are evolving rapidly. Manufacturers are pushing the limits of power density, thermal performance, and reliability while reducing form factors.

    Key Trends in IGBT Module Design

    1. Higher Power Density
    • Advanced packaging techniques allow more IGBT chips in the same footprint.
    • Result: Smaller modules delivering the same or higher current.
    • Benefits include lighter systems, reduced cooling needs, and better integration into compact systems like EV inverters.
    1. Dual-Sided Cooling (DSC)
    • New module designs feature heat dissipation from both the top and bottom surfaces.
    • This dramatically improves thermal resistance and allows higher current throughput.
    • Ideal for high-duty-cycle applications like rail traction and commercial EVs.
    1. SiC and Hybrid Modules
    • Many high-density IGBT modules now include SiC diodes or use hybrid Si/SiC technology.
    • This improves switching speed, reduces losses, and enables higher frequency operation.
    • Result: Smaller filters, smaller heat sinks, and increased system efficiency.
    1. Sintered Chip Connections
    • Replacing traditional soldering with silver sintering increases thermal conductivity and mechanical reliability.
    • Reduces thermal fatigue and enables higher temperature operation (Tj > 175°C).
    • Particularly useful in mission-critical or automotive applications.
    1. Integrated Sensing & Protection
    • Modern compact modules integrate temperature sensors, current sensors, and gate drivers.
    • Enhances reliability and simplifies external circuitry.
    • Smart modules reduce BOM (bill of materials) and system development time.
    1. Low Inductance Design
    • Compact IGBT modules now feature optimized internal layouts to reduce parasitic inductance.
    • Important for fast switching and minimizing voltage overshoots.
    • Supports stable operation at higher frequencies and tighter EMI margins.
    1. Modular and Scalable Architectures
    • Standardized form factors (e.g., EasyPACK, EconoDUAL, XHP) allow parallel operation and power scaling.
    • Simplifies design of high-power systems by using building-block approaches.
    1. Embedded Gate Driver Technology
    • Some high-density modules now come with embedded gate drivers, reducing board space and improving gate control.
    • Can include features like active clamping, soft turn-off, and desaturation protection.

    Applications Benefiting from These Trends

    Sector

    Benefits of Compact / High-Density IGBT Modules

    EV Inverters

    Smaller size, better heat dissipation, increased driving range

    Industrial Drives

    More power in smaller panels, less maintenance

    Renewable Energy (e.g., PV, wind)

    Improved inverter efficiency and power throughput

    Rail and Traction

    High reliability under thermal and mechanical stress

    Data Centers / UPS

    Smaller footprint with high current output and efficiency

    Summary

    Compact and high-density IGBT modules represent the next generation of power semiconductors, driven by the need for:

    • Greater efficiency and reliability
    • Smaller system sizes
    • Simplified thermal management
    • Intelligent, integrated control

    These trends are reshaping the landscape of power conversion, enabling smarter, faster, and more sustainable systems.

  • Using HMIs to Reduce Downtime in Manufacturing

    Using HMIs to Reduce Downtime in Manufacturing

    In modern manufacturing environments, downtime can mean significant losses in productivity, quality, and profitability. Human-Machine Interfaces (HMIs) help reduce both unplanned and planned downtime by providing real-time visibility, intelligent diagnostics, and efficient control over equipment and processes.

    1. Real-Time Monitoring and Status Updates

    HMIs provide operators and technicians with:

    • Live data on temperature, pressure, speed, cycle times, etc.
    • Equipment run status and fault indicators
    • System health metrics (e.g., vibration, current draw)

    Benefit:

    Early detection of abnormal conditions allows for quick corrective action—before breakdowns occur.



    1. Faster Fault Diagnosis and Recovery

    Modern HMIs display:

    • Alarm logs with time stamps and error codes
    • On-screen troubleshooting guides
    • Clear visual alerts for root-cause identification

    Benefit:

    Reduces mean time to repair (MTTR) by guiding operators directly to the issue without guesswork.



    1. Preventive and Predictive Maintenance Tools

    Many HMIs support:

    • Maintenance reminders based on run hours or cycles
    • Sensor integration for condition-based alerts
    • Data logging to spot performance degradation over time

    Benefit:

    Helps shift from reactive to proactive maintenance, avoiding unexpected equipment failures.



    1. Remote Access and Control

    Advanced HMIs enable:

    • Remote diagnostics via Ethernet, VPN, or cloud
    • Off-site adjustment of setpoints, timers, or I/O functions
    • SMS/email notifications for alarms or downtime events

    Benefit:

    Support teams can troubleshoot or restart systems without being on-site, speeding up recovery.



    1. Quick Changeovers and Recipe Management

    For production lines with frequent product changes, HMIs provide:

    • Stored recipes for machine settings
    • Step-by-step changeover instructions
    • Operator prompts to reduce setup errors

    Benefit:

    Streamlines transitions between batches, reducing planned downtime and scrap rates.



    1. User Access and Audit Trails

    HMIs support role-based access with logs of who changed what and when.

    Benefit:

    Minimizes downtime caused by unauthorized or accidental parameter changes and supports accountability.



    1. Integration with SCADA, ERP, and MES

    HMIs can interface with higher-level systems for:

    • Automated scheduling
    • Inventory tracking
    • Downtime analytics and reporting

    Benefit:

    Supports continuous improvement and root-cause analysis of recurring stoppages.

    The Result:

    By turning machine data into actionable information, HMIs help manufacturing teams:

    • Detect and prevent downtime early
    • Respond to faults faster
    • Standardize operations across shifts
    • Improve maintenance planning
  • Common Myths About Variable Frequency Drives (VFDs) – Debunked

    Common Myths About Variable Frequency Drives (VFDs) – Debunked

    Variable Frequency Drives (VFDs), also known as AC drives, are proven technologies for improving motor control and energy efficiency. But despite their widespread use, several misconceptions still circulate. Let’s separate fact from fiction:

    Myth 1: VFDs Are Only for Energy Savings on Fans and Pumps

    Reality:

    While VFDs do offer major energy savings on variable torque loads like HVAC fans and pumps, they’re also essential for:

    • Conveyors and crushers (constant torque)
    • Mixers and extruders (high starting torque)
    • Precision applications like spindles or hoists

    VFDs improve control, reduce mechanical stress, and extend equipment life—far beyond just saving energy.



    Myth 2: VFDs Are Too Expensive for Small Applications

    Reality:

    Modern VFDs are cost-effective even for small motors (<5 HP). The initial investment is often recovered quickly through:

    • Energy savings
    • Fewer motor starts/stops (lower wear)
    • Reduced need for mechanical controls (dampers, valves)



    Myth 3: VFDs Damage Motors

    Reality:

    When properly applied, VFDs protect motors by offering soft starting, controlled ramp-up/ramp-down, and overload protection.

    However, issues like:

    • Overvoltage spikes (due to long cables)
    • Bearing currents

    can occur if drives aren’t properly installed. Solutions include:

    • dV/dt filters or reactors
    • Proper grounding
    • VFD-rated motors for long cable runs



    Myth 4: You Can’t Use a VFD with a Standard Motor

    Reality:

    Most standard three-phase induction motors work just fine with VFDs—especially when the application runs within the motor’s rated voltage/frequency.

    For long-term performance, use inverter-duty motors in demanding or high-speed applications.



    Myth 5: VFDs Are Difficult to Program

    Reality:

    Today’s VFDs come with:

    • Quick-start wizards
    • Intuitive keypad interfaces
    • PC software and mobile apps

    Even first-time users can set up basic functions (run, stop, speed control) in minutes.



    Myth 6: VFDs Can’t Be Used for Constant Speed Applications

    Reality:

    Even in constant speed systems, VFDs offer:

    • Soft start/stop (reduces mechanical shock)
    • Torque limiting
    • Advanced diagnostics and protection

    In fact, many users install VFDs just to extend motor and gearbox life.



    Myth 7: VFDs Don’t Work in Harsh Environments

    Reality:

    VFDs are available in a range of enclosures (NEMA 1, 12, 4X, IP54, etc.) for:

    • Dusty or wet conditions
    • Outdoor installations
    • Washdown and corrosive environments

    Heatsinks and filters make them suitable for many rugged applications.



    Bottom Line:

    VFDs are powerful, flexible tools for motor control and energy management. When properly applied and installed, they:

    • Save energy
    • Extend equipment life
    • Enhance process control

    Don’t let outdated myths keep you from tapping into their full value.

  • The Role of a UPS in a Tiered Data Center Architecture

    The Role of a UPS in a Tiered Data Center Architecture

    In a tiered data center architecture, where uptime and availability are dictated by defined Tier levels (Tier I–IV, per Uptime Institute standards), the Uninterruptible Power Supply (UPS) plays a critical role in ensuring continuous power delivery and safeguarding sensitive IT equipment.

    What is Tiered Architecture?

    Data centers are classified into Tiers I to IV based on their infrastructure redundancy, fault tolerance, and expected uptime:

    Tier

    Availability

    Description

    Tier I

    99.671%

    Basic infrastructure – no redundancy

    Tier II

    99.741%

    Redundant power and cooling paths

    Tier III

    99.982%

    Concurrent maintainability – systems can be serviced without downtime

    Tier IV

    99.995%

    Fault-tolerant – full redundancy and isolation

    Role of a UPS Across the Tiers

    1. Power Continuity and Zero Downtime
    • A UPS provides instantaneous backup power during utility outages, bridging the gap before a generator starts.
    • Critical in all Tiers, but mandatory in Tier III and Tier IV, where uptime is essential.
    1. Power Conditioning
    • UPS systems filter and regulate incoming power, protecting servers and networking gear from:
      • Voltage sags and spikes
      • Frequency variations
      • Electrical noise or harmonics

    This ensures clean, stable power 24/7—crucial in high-tier architectures where performance and data integrity are non-negotiable.

    1. Support for Redundancy Models
    • Higher-tier data centers often implement N+1, 2N, or 2(N+1) UPS redundancy:
      • N+1: One additional UPS to back up a single failure
      • 2N: Two completely independent UPS systems for mirrored reliability
      • 2(N+1): Fully redundant plus backup for each system

    This design enables fault tolerance and concurrent maintenance without impacting uptime.

    1. Scalability and Modular Design
    • In Tier III and IV facilities, modular UPS systems allow incremental scaling of capacity as IT load grows—without downtime.
    • Rack-mounted and row-based UPS units can be deployed to match power needs more precisely.
    1. Battery Management and Energy Efficiency
    • Modern UPS systems use lithium-ion or VRLA batteries with intelligent battery management systems (BMS) to optimize life and performance.
    • High-efficiency UPS modes (like eco-mode) help Tier III/IV data centers meet sustainability targets without sacrificing reliability.

    Example Use Case by Tier

    Tier

    UPS Function

    Tier I/II

    Basic power continuity and conditioning; likely a single UPS system with limited redundancy

    Tier III

    Redundant UPS units (N+1 or 2N); supports concurrent maintenance

    Tier IV

    Fully fault-tolerant UPS infrastructure (2(N+1)); supports any single failure with no service interruption

    Summary

    In a tiered data center architecture, the UPS is foundational to:

    • Maintain power continuity
    • Protect against electrical anomalies
    • Enable redundancy and fault tolerance
    • Allow safe transitions to generator power
    • Support uptime and SLA commitments

    The higher the Tier, the more advanced, redundant, and scalable the UPS design must be.

  • The Benefits of LOTO and the Different Types

    The Benefits of LOTO and the Different Types

    Lockout/Tagout (LOTO) is a critical safety procedure used to ensure that electrical equipment—such as circuit breakers—is completely de-energized during maintenance or repair. LOTO helps prevent unexpected energization, protecting workers from electrical shock, arc flash, or equipment damage.

    Benefits of LOTO for Circuit Breakers

    1. Worker Safety: Prevents accidental energization while someone is servicing electrical systems.
    2. Regulatory Compliance: Required by OSHA (29 CFR 1910.147) and other safety standards.
    3. Reduces Downtime from Accidents: Fewer injuries and incidents lead to improved operational continuity.
    4. Prevents Equipment Damage: Ensures that machinery isn’t restarted during disassembly or inspection.
    5. Clear Communication: Tagout labels inform all personnel that work is in progress and power must not be restored.

    Types of LOTO Devices for Circuit Breakers

    LOTO devices vary depending on breaker design (toggle, molded case, miniature, etc.) and installation type (panel-mounted vs. DIN-rail). Here are the main categories:

    1. Clamp-On or Clamp-Type Breaker Lockouts
    • Used for standard toggle breakers
    • Attaches to the breaker switch and clamps it in the OFF position
    • Often secured with a padlock



    Common for residential and light commercial breakers

    1. Snap-On Breaker Lockouts
    • Designed to snap directly onto the breaker toggle
    • Usually fit specific breaker brands or styles
    • No tools required for installation



    Fast deployment for commonly used single-pole breakers

    1. Universal Breaker Lockouts
    • Adjustable designs that work across multiple breaker types and brands
    • Often use a thumbscrew or tool to secure onto the switch



    Good for facilities with mixed breaker panels

    1. Tie-Bar Lockouts
    • Used for two- or three-pole breakers connected by a tie bar
    • Prevents any switch in the group from being turned on



    Ideal for multipole breakers in industrial settings

    1. No-Hole Breaker Lockouts
    • Attach to breakers that lack a toggle hole
    • Uses a clamping mechanism or adhesive to stay in place



    Useful for molded-case breakers or special designs

    1. Panel Lockouts
    • Lockable covers or hasps installed on breaker panel doors
    • Prevents access to the breakers entirely



    Extra protection when individual breaker lockouts aren’t feasible

    LOTO Accessories

    • Padlocks: Keyed or keyed-alike, often color-coded per worker
    • Tags: Display who locked out the breaker, when, and why
    • Hasps: Allow multiple locks to be placed by several workers
    • Group Lockout Boxes: Centralize control when multiple breakers or workers are involved

    Summary

    Benefit

    Explanation

    Safety

    Prevents accidental energization

    Compliance

    Meets OSHA and NFPA 70E standards

    Maintenance

    Allows safe repair and inspection

    Control

    Physical lock ensures security and accountability

    Using the right type of breaker lockout device is essential for safety and compliance. Always match the device to the breaker’s size, brand, and pole configuration.

  • How IGBTs Enable Efficient Motor Drives and Inverters

    How IGBTs Enable Efficient Motor Drives and Inverters

    IGBTs (Insulated Gate Bipolar Transistors) are the backbone of modern motor drives and inverters, thanks to their unique ability to efficiently switch high voltages and currents at high speeds. By combining the easy gate control of MOSFETs with the high-current capability of BJTs, IGBTs are ideal for controlling electric motors and converting DC to AC power.

    Why IGBTs Are Ideal for Motor Drives and Inverters

    1. High Efficiency
    • IGBTs switch rapidly, minimizing power loss during transitions.
    • Low on-state voltage drop reduces conduction losses.
    • Enables pulse-width modulation (PWM) control, optimizing motor speed and torque.
    1. Precise Motor Control
    • Support for variable frequency operation, which allows precise control over motor speed and acceleration.
    • Enables soft starts, regenerative braking, and dynamic torque control in applications like HVAC systems, elevators, and EVs.
    1. Compact and Reliable Designs
    • High switching capability means smaller passive components (filters, inductors).
    • Fewer components needed for the same output power, reducing size and cost.
    • Integrated IGBT modules improve thermal performance and mechanical reliability.

    How IGBTs Work in Motor Drives and Inverters

    In a typical 3-phase motor drive:

    1. DC Power Input – Often from a rectified AC source or battery.
    2. IGBT Inverter Bridge – Six IGBTs switch in a 3-phase pattern to create synthesized AC output.
    3. PWM Control – The IGBTs are switched on and off rapidly using PWM to control output frequency and voltage.
    4. Motor Response – The synthesized variable-frequency AC drives an induction, synchronous, or brushless DC motor.

     Benefits in Industrial and Automotive Applications

    Application

    Role of IGBTs

    Industrial Motors

    Efficient control for pumps, fans, and conveyors

    HVAC Systems

    Variable-speed drives save energy and reduce noise

    Electric Vehicles (EVs)

    Main inverter for propulsion motor and regenerative braking

    Renewable Energy Inverters

    Convert DC from solar panels or batteries into usable AC

    Traction Systems

    Power control in trains, trams, and e-buses

     Summary: Why IGBTs Are Essential

    • Energy Efficiency – Reduce power consumption through precise switching and control
    • Motor Performance – Improve acceleration, torque control, and system responsiveness
    • System Integration – Allow smaller, lighter, and smarter power electronic systems
    • Flexibility – Support various motor types and application scenarios

    Conclusion:

    IGBTs are the heart of high-performance motor drives and inverters. Their ability to handle large power levels with precision control makes them indispensable in energy-efficient, high-reliability applications from factories to electric vehicles.

  • How HMIs Improve Operator Safety in Industrial Environments

    How HMIs Improve Operator Safety in Industrial Environments

    Human-Machine Interfaces (HMIs) play a crucial role in protecting operators by providing real-time insight, control, and automation in industrial systems. Beyond convenience, a well-designed HMI significantly enhances workplace safety by helping operators prevent, detect, and respond to hazards more effectively.

    1. Real-Time Monitoring and Alerts

    HMIs provide operators with instant visibility into process conditions, including:

    • Pressure, temperature, and flow levels
    • Motor speeds and system status
    • Alarm conditions and fault codes

    Why it improves safety:

    Operators can respond to abnormal conditions before they escalate into dangerous situations.

    1. Visual and Audible Alarms

    Modern HMIs feature:

    • Color-coded alarms (e.g., red = critical, yellow = warning)
    • Flashing screens or pop-ups
    • Audible tones or sirens

    Why it improves safety:

    Ensures urgent issues (like overpressure or machine faults) are quickly noticed and acted upon—even in noisy environments.

    1. Safe Access to Hazardous Areas

    HMIs enable remote operation of machinery, meaning:

    • No need to open panels or enter danger zones
    • Operators can initiate or stop processes from safe locations
    • Built-in interlocks prevent unsafe commands (e.g., starting a motor during a lockout)

    Why it improves safety:

    Reduces exposure to moving parts, high voltages, heat, or chemicals.

    1. Controlled Access and User Permissions

    Most HMIs support:

    • User login levels (operator, technician, admin)
    • Audit trails of who made what changes and when
    • Lockout of critical functions unless authorized

    Why it improves safety:

    Prevents unauthorized adjustments that could create unsafe conditions or violate procedures.

    1. On-Screen SOPs and Instructions

    HMIs can display:

    • Standard operating procedures (SOPs)
    • Maintenance checklists
    • Safety instructions or warnings

    Why it improves safety:

    Operators receive guidance directly at the point of use—reducing human error and improving compliance.

    1. Integration with Emergency Systems

    HMIs can interface with:

    • Emergency stop (E-stop) systems
    • Fire alarms or gas leak detectors
    • SCADA or DCS systems for coordinated shutdowns

    Why it improves safety:

    Improves emergency response times and enables coordinated system-wide protection.

    1. Historical Data and Diagnostics

    Built-in data logging and fault history allow:

    • Analysis of near-misses or recurring hazards
    • Predictive maintenance scheduling
    • Root-cause investigations

    Why it improves safety:

    Prevents future incidents by learning from past trends and failures.

    Conclusion:

    HMIs serve as the first line of communication between humans and machines. When designed with safety in mind, they do more than control a process—they help protect people, enforce best practices, and ensure fast, informed decision-making in industrial settings.
