Differential Pressure vs. Gauge Pressure: When to Use Each in Industrial Applications

Pressure measurement is fundamental to industrial processes—from monitoring flow and level to ensuring safety and efficiency. But not all pressure measurements are the same. Two of the most commonly used types are gauge pressureand differential pressure, and understanding when to use each is critical for accurate control and reliable operation.

Understanding the Basics

Gauge Pressure (Relative Pressure)

Gauge pressure measures pressure relative to atmospheric pressure.

Reads 0 psi when exposed to ambient air
Commonly expressed as PSIG (pounds per square inch gauge)

Examples:

Measuring pressure in a water line
Monitoring compressed air systems
Checking boiler or steam pressure

It answers the question: “How much pressure is above (or below) atmospheric?”

Differential Pressure (ΔP)

Differential pressure measures the difference between two pressure points.

Uses a high-pressure side (HP) and low-pressure side (LP)
Outputs the difference: ΔP = P₁ − P₂

Examples:

Flow measurement across an orifice plate
Filter condition monitoring
Level measurement in tanks

It answers: “What is the pressure difference between two locations?”

Key Differences at a Glance

Feature	Gauge Pressure	Differential Pressure
Reference	Atmospheric pressure	Another process point
Measurement	Single point	Two points
Output	Absolute relative to atmosphere	Pressure difference (ΔP)
Typical Uses	General system pressure	Flow, level, filtration

When to Use Gauge Pressure

Gauge pressure is ideal when you need to monitor system pressure at a single point.

Best Applications:

Compressed Air Systems

Ensures pressure stays within operational limits

Water Distribution Systems

Monitors line pressure for consistent delivery

Hydraulic Systems

Maintains proper force and system performance

Boilers and Steam Systems

Tracks pressure relative to ambient conditions

Why It Works:

Simple and cost-effective
Easy to install and maintain
Provides direct, intuitive readings

If atmospheric pressure is your reference, gauge pressure is the right choice.

When to Use Differential Pressure

Differential pressure is essential when performance depends on the relationship between two points.

Best Applications:

Flow Measurement

Measures pressure drop across a restriction (orifice, venturi)
Flow rate is calculated from ΔP

Filter Monitoring

Tracks pressure before and after a filter
Increasing ΔP indicates clogging

Tank Level Measurement

Measures pressure at bottom vs top of tank
Calculates liquid level based on pressure difference

Pump and System Performance

Identifies pressure drop across equipment
Helps diagnose inefficiencies or blockages

Why It Works:

Provides insight into system behavior—not just pressure
Enables indirect measurement of flow, level, and condition
Critical for optimization and diagnostics

If you need to understand change, restriction, or performance, differential pressure is the better choice.

Common Mistakes to Avoid

Using gauge pressure for flow measurement

(Flow requires pressure difference, not a single reading)

Improper transmitter placement

(Incorrect tap locations can lead to inaccurate ΔP readings)

Ignoring environmental factors

(Temperature and density can affect differential pressure accuracy)

Confusing gauge vs absolute pressure

(Important in vacuum or high-precision applications)

Choosing the Right Measurement

When deciding between gauge and differential pressure, ask:

Am I measuring pressure at one point or comparing two points?
Do I need to monitor system pressure or system performance?
Is the goal control, safety, or optimization?

Bringing It All Together

Both gauge and differential pressure play essential roles in industrial systems:

Gauge pressure provides a clear picture of system pressure at a given point
Differential pressure reveals how the system is behaving between two points

Used correctly, they enable:

Better process control
Improved efficiency
Enhanced reliability
Reduced maintenance costs

Final Thought

The difference between gauge and differential pressure isn’t just technical—it’s strategic.

Choose the right measurement, and you gain deeper insight, better control, and stronger system performance.

April 9, 2026

Understanding Duty Cycles: Continuous vs. Intermittent Operation for RC Blowers

Selecting the right regenerative (side-channel) blower isn’t just about airflow and pressure—it’s also about how the blower is expected to operate over time. One of the most important (and often misunderstood) considerations is duty cycle.

Understanding whether your application requires continuous or intermittent operation can mean the difference between long-term reliability and premature equipment failure.

What Is a Duty Cycle?

A duty cycle defines how long a blower runs versus how long it rests within a given time period.

Continuous Duty (100%) → Runs non-stop
Intermittent Duty → Runs in cycles (on/off periods)

For RC blowers, duty cycle directly impacts:

Heat generation
Motor life
Performance stability
Maintenance requirements

Continuous Duty Operation (100%)

What It Means

The blower operates 24/7 without stopping, often under steady load conditions.

Typical Applications

Wastewater aeration systems
Pneumatic conveying
Continuous drying processes
Central vacuum systems

Key Considerations

Heat Management

Continuous operation generates constant heat. RC blowers must be designed with:

Efficient cooling (air-cooled designs)
Adequate ventilation
Proper ambient temperature conditions

Motor Rating

Motors must be rated for continuous duty (S1) to avoid overheating and insulation breakdown.

Reliability and Longevity

Well-matched continuous-duty blowers offer:

Stable performance
Longer service life
Reduced downtime

If your process never stops, your blower must be built to run without interruption.

Intermittent Duty Operation

What It Means

The blower runs in cycles, alternating between operation and rest.

Example:

Run for 2 minutes → Off for 3 minutes → Repeat

Typical Applications

Packaging and pick-and-place systems
Vacuum lifting
Batch processing
Medical or laboratory equipment

Key Considerations

Start/Stop Frequency

Frequent cycling can:

Increase electrical stress
Cause mechanical wear
Impact bearing life

Inrush Current

Each startup draws higher current, which can:

Affect electrical systems
Require proper motor protection

Thermal Recovery

Off periods allow the blower to cool, which can:

Extend lifespan (if properly managed)
Prevent overheating in high-load scenarios

Intermittent duty can be efficient—but only when the blower is designed for it.

Continuous vs. Intermittent: Key Differences

Factor	Continuous Duty	Intermittent Duty
Operation	Non-stop	On/off cycles
Heat	Constant buildup	Cycles of heating/cooling
Wear	Steady	Increased from cycling
Motor Rating	Continuous (S1)	Often S3 or similar
Best For	Stable, ongoing processes	Variable or batch processes

Why Duty Cycle Matters for RC Blowers

Preventing Overheating

RC blowers are compact and efficient—but they rely heavily on airflow for cooling.

Continuous overload → overheating
Incorrect duty cycle → reduced lifespan

Ensuring Proper Sizing

A blower sized only for peak demand—but used continuously—can fail prematurely.

Continuous applications require derating safety margins
Intermittent applications may allow higher short-term loads

Optimizing Energy Efficiency

Continuous systems benefit from stable, optimized operation
Intermittent systems may benefit from:
- Controls
- Timers
- VFD integration (in some cases)

Reducing Maintenance Costs

Mismatch between duty cycle and blower design leads to:

Frequent repairs
Bearing failures
Motor burnout

Proper alignment reduces:

Downtime
Maintenance intervals
Total cost of ownership

Common Mistakes to Avoid

Assuming all blowers are continuous duty

(Not all are designed for 24/7 operation)

Ignoring ambient temperature

(Higher temps reduce allowable duty cycle)

Overlooking start/stop frequency

(Critical for intermittent applications)

Running intermittent-duty blowers continuously

(A fast track to failure)

Best Practices for Selecting RC Blowers

Define your duty cycle clearly

(Run time vs rest time)

Match motor rating to application

(S1 for continuous, S3/S6 for intermittent)

Consider thermal limits

(Cooling, airflow, environment)

Evaluate control strategies

(Timers, sensors, or VFDs where appropriate)

Build in safety margins

(Especially for continuous operation)

Bringing It All Together

Duty cycle isn’t just a specification—it’s a critical factor that determines how your RC blower performs over time.

Continuous duty ensures stable, long-term operation for always-on processes
Intermittent duty supports flexibility and efficiency in cyclic applications

Final Thought

The right blower isn’t just about what it does—it’s about how long and how often it does it.

Match the duty cycle to the application, and you’ll maximize performance, efficiency, and equipment life.

April 9, 2026

Optimizing Water & Wastewater Systems with Modern HMIs

Water and wastewater facilities are under increasing pressure to do more with less—less energy, fewer resources, and tighter budgets—while maintaining reliability and regulatory compliance. One of the most impactful upgrades facilities can make is implementing modern Human-Machine Interfaces (HMIs).

Today’s HMIs go far beyond simple operator panels. They provide real-time visibility, intelligent control, and actionable insights that help utilities optimize performance across the entire system.

What Is an HMI?

A Human-Machine Interface (HMI) is the visual control layer that connects operators to equipment and processes. It allows users to:

Monitor system performance in real time
Control pumps, motors, valves, and drives
View alarms and system alerts
Analyze trends and historical data

In water and wastewater systems, HMIs are often integrated with SCADA systems, creating a centralized platform for managing complex operations.

From Reactive to Proactive Operations

Traditional systems rely heavily on manual checks and reactive maintenance. Modern HMIs shift operations to a proactive, data-driven approach by providing:

Real-time system visibility
Predictive insights through trends and analytics
Early warning of potential failures

This transition helps operators make faster, smarter decisions—before small issues become costly problems.

Key Benefits of Modern HMIs

Improved System Visibility

Operators can see the entire system—from intake to discharge—on a single interface. This includes:

Pump status and performance
Tank levels and flow rates
Valve positions
Energy usage

With better visibility, operators can quickly identify inefficiencies and optimize performance.

Enhanced Operational Efficiency

Modern HMIs streamline workflows by:

Automating routine processes
Reducing manual intervention
Enabling faster response times

For example:

Automatically adjusting pump speeds based on demand
Balancing system loads to reduce wear and energy use

Energy Optimization

Energy is one of the largest operating costs in water and wastewater systems.

HMIs help reduce consumption by:

Monitoring energy usage in real time
Identifying high-consumption equipment
Integrating with VFDs to optimize motor speed

Even small efficiency gains can translate into significant cost savings over time.

Alarm Management and Faster Response

Modern HMIs provide intelligent alarm systems that:

Prioritize critical alerts
Reduce nuisance alarms
Provide clear diagnostics

Operators can quickly:

Identify the root cause
Take corrective action
Minimize downtime

Data Logging and Compliance

Regulatory compliance requires accurate and consistent data.

HMIs simplify this by:

Automatically logging system data
Generating reports for audits
Tracking performance metrics over time

This reduces administrative burden and ensures compliance with environmental regulations.

Remote Access and Control

With secure remote access, operators can:

Monitor systems from anywhere
Respond to issues without being onsite
Improve coverage with smaller teams

This is especially valuable for:

Distributed water systems
Municipal utilities with multiple sites

Real-World Applications

Pump Stations

Monitor flow rates and pressure
Adjust pump sequencing
Prevent overflow or dry-run conditions

Treatment Plants

Control chemical dosing
Monitor filtration and aeration
Track system performance in real time

Lift Stations

Manage wastewater levels
Trigger alarms for high/low conditions
Optimize pump cycles to reduce energy use

Common Challenges (and How HMIs Solve Them)

Challenge	HMI Solution
Limited visibility	Centralized dashboards
High energy costs	Real-time monitoring + VFD integration
Equipment failures	Predictive alerts and trends
Labor shortages	Automation + remote access
Compliance burden	Automated data logging and reporting

Best Practices for Implementation

To get the most out of a modern HMI:

Standardize screen design

Keep layouts intuitive and consistent across systems

Prioritize critical data

Avoid clutter—highlight what matters most

Integrate with existing systems

Ensure compatibility with SCADA, PLCs, and VFDs

Focus on cybersecurity

Protect remote access and system data

Train operators effectively

Even the best system is only as good as its users

Bringing It All Together

Modern HMIs transform water and wastewater operations by turning data into actionable insights. They empower operators to:

Improve efficiency
Reduce energy consumption
Enhance reliability
Maintain compliance

Final Thought

As infrastructure ages and demands increase, smarter systems are no longer optional—they’re essential.

Modern HMIs provide the visibility and control needed to optimize water and wastewater systems today—and prepare for the challenges of tomorrow.

April 9, 2026

Understanding Torque Curves: Why They Matter When Selecting a VFD
When selecting a Variable Frequency Drive (VFD), it’s easy to focus on horsepower, voltage, or cost. But one of the most critical—and often overlooked—factors is the torque curve of the application. Understanding torque requirements ensures your VFD is properly matched to the load, delivering reliable performance, energy efficiency, and long equipment life.

What Is a Torque Curve?

A torque curve shows how much torque (rotational force) a motor or application requires across different speeds. Every type of load—whether it’s a fan, pump, or conveyor—has its own unique torque profile.

At its core:
- Torque = the force needed to rotate a load
- Speed = how fast that load rotates
The relationship between the two determines how your system behaves—and how your VFD should be configured.

The Three Main Types of Torque Loads
1. Variable Torque Loads (Fans & Pumps)
- Torque increases with the square of speed
- Power increases with the cube of speed
Examples:
- HVAC fans
- Centrifugal pumps
Why it matters:

This is where VFDs shine. Reducing speed even slightly leads to significant energy savings. Selecting a VFD optimized for variable torque can dramatically cut operating costs.
1. Constant Torque Loads (Conveyors & Compressors)
- Torque remains constant regardless of speed
Examples:
- Conveyors
- Positive displacement pumps
- Screw compressors
Why it matters:

These applications require steady force at all speeds. Your VFD must be sized to handle full torque even at low speeds, or you risk stalling and overheating.
1. Constant Horsepower Loads (Machine Tools)
- Torque decreases as speed increases
- Horsepower remains constant
Examples:
- Machine tool spindles
- Winder/unwinder systems
Why it matters:

These applications require precise control across a wide speed range. A properly selected VFD ensures smooth transitions and consistent performance.

Why Torque Curves Matter in VFD Selection
1. Proper Sizing
Choosing a VFD without understanding torque can lead to:
- Undersized drives → stalling, trips, overheating
- Oversized drives → unnecessary cost
Matching the torque curve ensures the drive delivers the right amount of power exactly when needed.
1. Energy Efficiency
Different torque profiles respond differently to speed control:
- Variable torque loads = massive energy savings
- Constant torque loads = more stable, predictable consumption
Understanding this helps maximize ROI from your VFD investment.
1. System Reliability
If torque demands aren’t met:
- Motors can overheat
- Drives can trip
- Equipment life is reduced
A properly matched torque profile keeps everything running smoothly and extends system lifespan.
1. Control Strategy Optimization
Torque characteristics influence:
- Acceleration and deceleration settings
- Control modes (V/Hz vs vector control)
- Protection parameters
This ensures optimal performance for your specific application.

Common Mistakes to Avoid
- Assuming all loads behave the same
(Fans ≠ conveyors ≠ compressors)
- Ignoring starting torque requirements
Some applications need a torque boost at startup
- Overlooking low-speed performance
Critical for conveyors and heavy loads
- Not accounting for load variations
Real-world conditions often differ from ideal curves

Bringing It All Together

Selecting the right VFD isn’t just about matching voltage and horsepower—it’s about understanding how your system behaves under real operating conditions.

Torque curves provide that insight.

By aligning your VFD selection with your application’s torque profile, you can:
- Improve efficiency
- Enhance reliability
- Reduce operating costs
- Extend equipment life
Final Thought

In today’s push for smarter, more energy-efficient systems, torque curves are more than just engineering theory—they’re a practical tool for better decision-making.

Get the torque right, and everything else follows.
April 9, 2026
Understanding UPS Harmonic Mitigation and THDi/THDv
Uninterruptible Power Supply (UPS) systems are essential for protecting critical loads—from data centers and healthcare facilities to industrial automation and control systems. But beyond backup power, UPS systems can also play a key role in power quality, particularly when it comes to harmonics.

Understanding how UPS systems interact with harmonics—and how to evaluate THDi (Total Harmonic Distortion of Current) and THDv (Total Harmonic Distortion of Voltage)—is critical for designing reliable, efficient electrical systems.

What Are Harmonics?

Harmonics are distortions in electrical waveforms caused by non-linear loads. Instead of a smooth sine wave, the current or voltage waveform becomes distorted.

Common sources include:
- Variable Frequency Drives (VFDs)
- Switch-mode power supplies
- LED lighting
- UPS systems themselves
These distortions can lead to:
- Overheating of equipment
- Increased losses
- Nuisance tripping
- Reduced equipment lifespan
Visualizing Harmonics

A pure sine wave represents ideal power. Harmonics introduce additional frequencies (multiples of the fundamental frequency), distorting the waveform.

What Is THDi vs. THDv?

THDi (Total Harmonic Distortion – Current)
- Measures distortion in current waveform
- Expressed as a percentage of the fundamental current
Indicates how much harmonic current a device injects into the system

THDv (Total Harmonic Distortion – Voltage)
- Measures distortion in voltage waveform
- Expressed as a percentage of the fundamental voltage
Reflects the impact of harmonic currents on system voltage

Key Relationship
- Non-linear loads → create harmonic currents (THDi)
- System impedance → converts THDi into voltage distortion (THDv)
High THDi can lead to high THDv, depending on the system.

Why Harmonics Matter in UPS Systems

UPS systems can both:
- Generate harmonics (especially older or less advanced designs)
- Mitigate harmonics (with modern technologies)
Risks of Poor Harmonic Performance
- Overheating of transformers and cables
- Reduced generator compatibility
- Interference with sensitive equipment
- Lower overall system efficiency
Modern UPS Harmonic Mitigation Techniques
1. Active Front End (AFE) Rectifiers
- Uses IGBT-based converters
- Draws near-sinusoidal input current
- Achieves very low THDi (often < 3%)
One of the most effective harmonic mitigation solutions
1. Passive Harmonic Filters
- Uses inductors and capacitors
- Reduces harmonic distortion at specific frequencies
Pros:
- Cost-effective
- Simple design
Cons:
- Less flexible
- Larger footprint
1. Multi-Pulse Rectifiers (12-pulse, 18-pulse)
- Uses phase-shifting transformers
- Cancels out certain harmonic components
Typical performance:
- 12-pulse: ~10–12% THDi
- 18-pulse: ~5–8% THDi
1. Active Harmonic Filters (External)
- Dynamically injects counter-harmonics
- Can be used system-wide (not just UPS)
Typical THDi and THDv Targets

Parameter

Recommended Range

THDi (UPS input)

< 5% (modern systems)

THDv (system voltage)

< 5% (per IEEE 519 guidelines)

Staying within these limits ensures:
- Compliance with standards
- Reliable system operation
- Protection of connected equipment
Real-World Impact
1. Generator Compatibility
High THDi can cause:
- Generator overheating
- Voltage instability
- Poor performance
Low-THDi UPS systems improve generator sizing and stability.
1. Energy Efficiency
Harmonics increase:
- Resistive losses
- Heat generation
Reducing harmonics improves:
- Overall system efficiency
- Operating costs
1. Equipment Lifespan
Lower harmonic distortion:
- Reduces thermal stress
- Minimizes insulation damage
- Extends equipment life
1. System Reliability
Clean power ensures:
- Stable operation of sensitive electronics
- Fewer unexpected failures
- Reduced downtime
Common Mistakes to Avoid
- Focusing only on THDv and ignoring THDi
(Both are important and interconnected)
- Assuming all UPS systems have low harmonics
(Older designs can have high THDi)
- Ignoring upstream/downstream impacts
(Harmonics affect the entire system)
- Not considering generator interaction
(Critical for backup systems)

How to Choose the Right UPS for Harmonic Performance

Ask these key questions:
1. What is the UPS input THDi rating?
2. Does it use an AFE rectifier or multi-pulse design?
3. Will it operate with a generator?
4. What are the system THDv requirements?
5. Is additional filtering needed?
Bringing It All Together

Harmonics are a critical—but often underestimated—aspect of UPS system design.
- THDi tells you how much distortion your UPS introduces
- THDv tells you how that distortion affects your system
Modern UPS technologies, especially those with active front ends, can significantly reduce harmonic impact—improving efficiency, reliability, and compliance.

Final Thought

In today’s power-sensitive environments, it’s not just about keeping the lights on—it’s about keeping the power clean.

Understanding and managing harmonics ensures your UPS system not only protects your load—but enhances the entire electrical system.
April 9, 2026
The Importance of Power Factor in Data Center UPS Selection
When selecting a UPS for a data center, power factor (PF) is one of the most misunderstood—and most costly—parameters to overlook. Two UPS systems with the same kVA rating can support very different real loads depending on their power factor. In modern, high-density data centers, that difference directly affects capacity, efficiency, scalability, and total cost of ownership.

Let’s break down why power factor matters, how it impacts UPS sizing, and what to look for in modern UPS designs.

What Is Power Factor (and Why It Matters)?

Power factor describes how effectively electrical power is converted into useful work.

Power Factor = kW (Real Power) / kVA (Apparent Power)
- kW (Real Power): Does the actual work (servers, storage, networking)
- kVA (Apparent Power): What the UPS and electrical infrastructure must deliver
- kVAR (Reactive Power): Circulating energy that does no useful work
A lower power factor means more current is required to deliver the same real power—placing greater stress on the UPS, cabling, and upstream distribution.

Why Data Centers Are Especially Sensitive to Power Factor

Modern data centers differ from traditional industrial loads in key ways:
- Server power supplies are nonlinear loads
- High rack densities drive current up quickly
- UPS systems are often sized close to limits
- Expansion happens faster than expected
A small mismatch between kVA and kW capability can strand capacity—or force an expensive upgrade far sooner than planned.

The kVA vs. kW Trap in UPS Selection

Historically, many UPS systems were rated at 0.8 power factor.

Example: Legacy UPS
- 100 kVA UPS
- PF = 0.8
- Usable real power = 80 kW
That means 20% of the UPS capacity is unusable for real IT load.

Modern UPS (Unity Power Factor)
- 100 kVA UPS
- PF = 1.0
- Usable real power = 100 kW
Same footprint. Same kVA. 25% more usable capacity.

Why Unity Power Factor UPS Systems Matter
1. Maximizes Usable Capacity
With PF ≈ 1.0:
- kW ≈ kVA
- No stranded capacity
- Better utilization of electrical infrastructure
This is especially critical in colocation and hyperscale environments where power is monetized per kW.
1. Better Match for Modern IT Loads
Most modern server power supplies:
- Use active PFC
- Draw current close to unity PF
- Expect the UPS to deliver real power, not just apparent power
A UPS with a low PF rating becomes the bottleneck—even if servers are efficient.
1. Improved Energy Efficiency
Lower power factor increases:
- RMS current
- I²R losses in cables and transformers
- Heat in switchgear and UPS components
Higher PF UPS systems:
- Reduce internal losses
- Improve overall data center PUE
- Lower cooling demand
1. Simplifies Growth and Capacity Planning
With unity PF:
- 1 kVA ≈ 1 kW
- Fewer conversion assumptions
- Cleaner planning models for expansion
This matters when scaling from:
- 500 kW → 1 MW
- Single room → multi-hall facilities
Input Power Factor vs. Output Power Factor

UPS systems have two PF considerations:

Input power factor
- How the UPS draws power from the utility
- Modern rectifiers often achieve ≥0.99
- Reduces upstream transformer and generator sizing
Output power factor
- How much real power the UPS can deliver to loads
- This is the critical spec for IT capacity
- Should be close to unity for modern data centers
Both matter—but output PF determines usable load capacity.

Impact on Generators and Electrical Infrastructure

Lower PF means:
- Higher current
- Larger generators
- Larger breakers and cabling
- Increased fault currents
A unity PF UPS:
- Reduces generator oversizing
- Improves generator-UPS compatibility
- Simplifies coordination and protection
Battery Runtime and Power Factor

Battery systems are rated in kW, not kVA.

If a UPS is kVA-limited:
- Batteries may be capable of more real power than the UPS can deliver
- Runtime calculations become misleading
Unity PF ensures:
- Battery capacity aligns with usable UPS output
- Runtime specs match real-world performance
Key Questions to Ask When Selecting a UPS
1. What is the output power factor at full load?
2. Is the UPS kVA-limited or kW-limited?
3. How does PF affect future rack density?
4. Does the UPS align with modern server PFC behavior?
5. How does PF impact generator sizing and fuel efficiency?
Common Mistakes in UPS Power Factor Selection
- Assuming all 100 kVA UPS systems deliver 100 kW
- Ignoring output PF while focusing only on efficiency
- Oversizing UPS capacity to compensate for low PF
- Discovering stranded capacity during expansion
These mistakes are expensive—and entirely avoidable.

The Bottom Line

In data centers, power factor is not a secondary spec—it’s a capacity spec.

Choosing a UPS with high or unity output power factor:
- Maximizes usable IT load
- Improves efficiency and PUE
- Reduces infrastructure costs
- Future-proofs growth
When evaluating UPS systems, always ask:

How much real power can this UPS actually deliver?
March 4, 2026

Parameter	Recommended Range
THDi (UPS input)	< 5% (modern systems)
THDv (system voltage)	< 5% (per IEEE 519 guidelines)

How Gate Charge Impacts Switching Performance in MOSFETs and IGBTs

When engineers evaluate power semiconductors, they often focus on voltage rating, current rating, and conduction losses. But in real switching applications—especially at high frequency—gate charge plays a major role in determining efficiency, switching speed, EMI, and even device reliability.

Understanding how gate charge affects MOSFETs and IGBTs helps you select the right device and the right gate driver for your application.

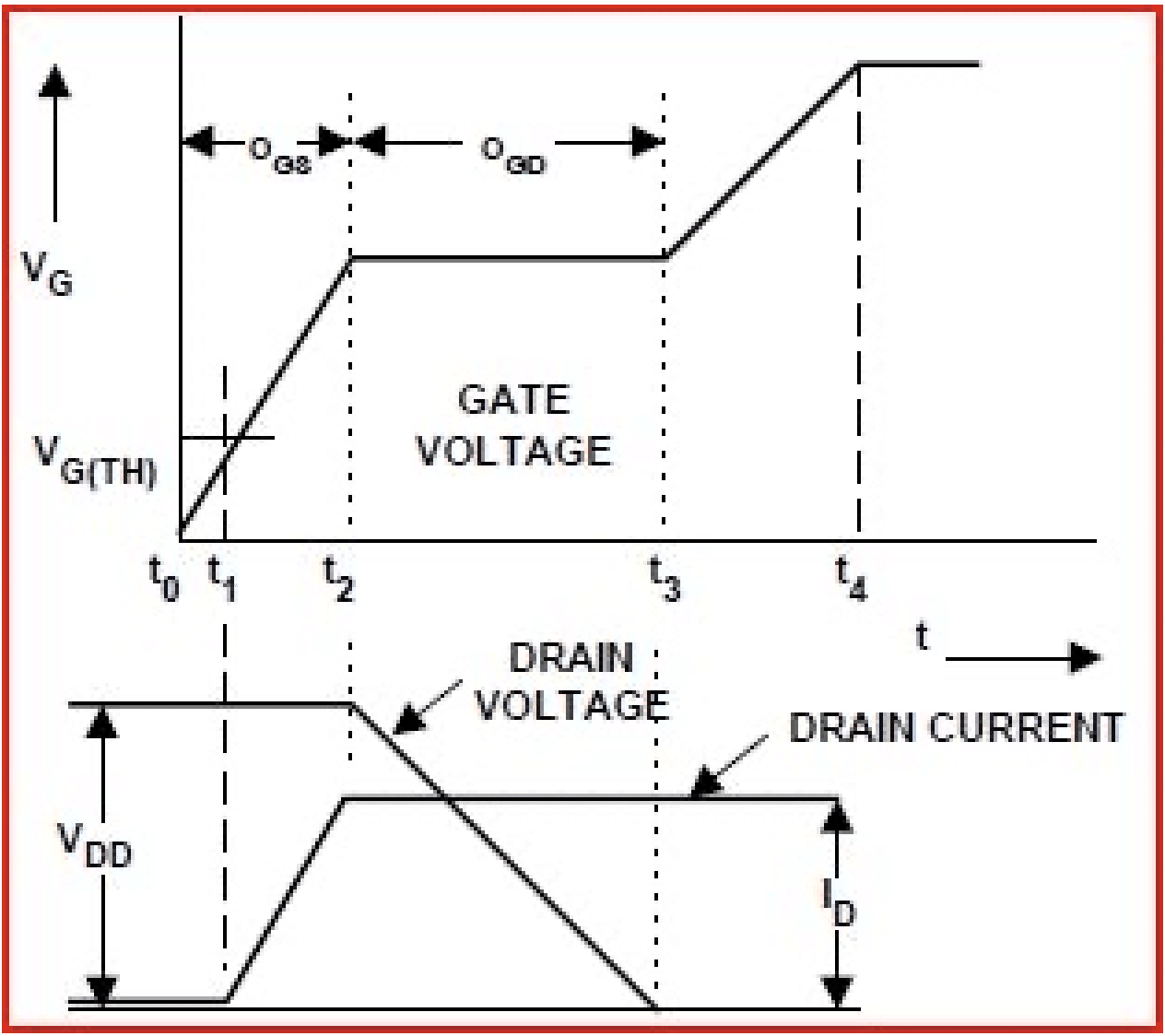

What Is Gate Charge?

Gate charge (Qg) is the total amount of electrical charge required to drive a power device from OFF to ON at a specified gate voltage.

It is not a single number—it’s the sum of several components:

Qgs – charge to raise the gate-to-source/emitter voltage to the threshold
Qgd (Miller charge) – charge required during the drain/collector voltage transition
Qg(total) – total charge needed for full enhancement

Gate charge directly determines how fast a device can switch for a given gate driver strength.

Why Gate Charge Matters

The gate is capacitive. To switch the device, the driver must move charge in and out of the gate.

This affects:

Switching speed
Switching losses
Driver power requirements
EMI and dv/dt behavior
Maximum practical switching frequency

Key relationship

Switching speed ∝ Gate driver current / Gate charge

Gate Charge and Switching Losses

During switching transitions:

Voltage across the device is high
Current through the device is high

This overlap causes switching losses, which increase as switching slows down.

Higher gate charge → slower transitions → higher switching losses.

MOSFETs: Gate Charge Behavior

Characteristics

Voltage-controlled device
No minority carrier storage
Very fast switching capability

Gate charge implications

Qg scales strongly with die size
Low-Rds(on) MOSFETs often have high Qg
Miller plateau (Qgd) dominates high-voltage switching

Practical impact

Low Qg → high-frequency capability (100 kHz+)
High Qg → requires strong gate drivers
Gate charge often limits efficiency before conduction losses do

Design tradeoff

Lower Rds(on) ≠ better overall efficiency if Qg is too high for the switching frequency

IGBTs: Gate Charge Behavior

Characteristics

MOS gate with bipolar conduction
Minority carrier device
Lower conduction loss at high voltage

Gate charge implications

Total Qg is often lower than large MOSFETs
Switching is limited more by carrier tail current than Qg
Turn-off losses dominate at high frequency

Practical impact

Well suited for low–to–medium switching frequencies
Gate charge still affects dv/dt and EMI
Faster gate drive can reduce switching loss—but only to a point

Key limitation

Even with low gate charge, stored charge in the drift region limits IGBT switching speed

Miller Charge: The Real Bottleneck

The Miller charge (Qgd) occurs while:

Gate voltage is “stuck” at the Miller plateau
Drain/collector voltage is actively changing

During this time:

Gate current controls dv/dt
EMI and overshoot are set
Switching loss accumulates

Devices with lower Qgd:

Switch faster
Produce less switching loss
Are easier to control cleanly

Gate Charge vs. Gate Driver Design

Gate charge must always be considered together with the gate driver.

Gate driver current

t_sw Q_g / I_gate

High Qg → needs high peak gate current
Weak drivers → slow switching → excess loss
Strong drivers → faster switching but higher EMI risk

This is why gate resistors, split turn-on/turn-off resistors, and active gate control are so common.

MOSFET vs. IGBT: Gate Charge Comparison

Parameter	MOSFET	IGBT
Gate type	Capacitive	Capacitive
Total gate charge	Often higher	Often lower
Miller dominance	Very high	Moderate
Switching frequency	Very high	Moderate
Limiting factor	Qg + Qgd	Tail current
Best use case	High-frequency	High-voltage, lower-frequency

Practical Design Guidelines

Compare Qg and Qgd, not just Rds(on) or Vce(sat)
Match gate driver peak current to total gate charge
Don’t overspeed switching without managing EMI
For high frequency → prioritize low Qgd MOSFETs
For high voltage & power → accept slower switching IGBTs
Validate with real waveforms—not just datasheets

The Bottom Line

Gate charge is one of the most important—and most misunderstood—parameters in power semiconductor selection.

MOSFETs are often limited by gate charge at high frequency
IGBTs are limited more by stored charge, but gate charge still shapes switching behavior
Gate charge directly links device physics to real-world efficiency

Designing efficient, reliable power electronics means treating the device and gate driver as a system, not separate components.

March 4, 2026

How Pressure, Vacuum, and Airflow Interact in Regenerative Blower Systems
Regenerative blowers are deceptively simple machines. With no internal contact and a single rotating impeller, they generate both pressure and vacuum—but understanding how those forces interact with airflow is the key to sizing, efficiency, and reliability.

If pressure, vacuum, and airflow aren’t properly matched to the application, even a high-quality blower can underperform or fail prematurely. Let’s break down how these three variables work together.

The Basics: One Blower, Two Modes

A regenerative blower operates on the same aerodynamic principle whether it’s producing pressure or vacuum:
- Pressure mode → air is pushed into the system
- Vacuum mode → air is pulled from the system
The blower itself doesn’t change—only how the inlet and outlet are connected.

Airflow: The Foundation Variable

Airflow (usually measured in CFM or m³/h) is the starting point for understanding blower behavior.

Key truth

A regenerative blower does not create pressure first—it creates airflow first.

As airflow encounters resistance in the system, pressure or vacuum develops.

Pressure and Vacuum: Resistance to Airflow

Pressure and vacuum are simply two sides of the same coin:
- Pressure = resistance on the discharge side
- Vacuum = resistance on the inlet side
Both are caused by system restrictions such as:
- Pipe length and diameter
- Filters and silencers
- Diffusers, air knives, manifolds
- Process backpressure
The Blower Curve: Where Everything Connects

Every regenerative blower has a performance curve that shows the relationship between:
- Airflow (horizontal axis)
- Pressure or vacuum (vertical axis)
What the curve tells you
- Maximum airflow occurs at near-zero pressure
- Maximum pressure or vacuum occurs at near-zero airflow
- Normal operation happens somewhere in between
Your system determines where on that curve the blower operates.

Pressure vs. Airflow Trade-Off

As system resistance increases:
- Airflow decreases
- Pressure or vacuum increases
This trade-off is unavoidable and fundamental to regenerative blower operation.

Common misconception

“I need high airflow and high pressure.”

In reality, the system can only get one at the expense of the other unless the blower size or speed changes.

System Curve: The Missing Half of the Equation

Your piping and process create a system curve—a graphical representation of how much pressure or vacuum is required at different airflow rates.
- Long piping → steeper curve
- Dirty filters → curve shifts upward
- Valves closing → curve steepens instantly
The actual operating point is where the blower curve intersects the system curve.

Pressure Mode vs. Vacuum Mode: Subtle Differences

While the physics are the same, practical differences matter:

Pressure mode
- Heat builds up on the discharge side
- Overpressure can overload the motor
- Relief valves are often critical
Vacuum mode
- Inlet filters play a major role
- Clogging increases vacuum rapidly
- Risk of overheating at low airflow
Heat: The Silent Fourth Variable

As pressure or vacuum increases and airflow decreases:
- Less air moves through the blower for cooling
- Internal temperature rises
This is why deadheading (near-zero airflow) is dangerous—even if pressure limits aren’t exceeded.

Why Oversizing Isn’t a Fix

A larger blower:
- May push the operating point into inefficient regions
- Can increase noise and energy consumption
- Doesn’t eliminate system restrictions
Correct sizing means:
- Matching airflow requirements
- Accounting for worst-case pressure or vacuum
- Staying within the blower’s efficient operating range
Practical Design Tips
- Size blowers using both airflow and pressure/vacuum
- Account for dirty filters and future expansion
- Avoid operating near maximum pressure or vacuum continuously
- Use relief valves or bypasses when airflow can be restricted
- Verify cooling at low-flow conditions
The Bottom Line

In regenerative blower systems:
- Airflow creates pressure and vacuum
- System resistance determines how much of each you get
- The blower curve and system curve define real performance
Understanding how pressure, vacuum, and airflow interact helps you select the right blower, prevent overheating, and achieve stable, efficient operation across the full life of the system.
March 4, 2026
Why Sensor Drift Happens—and How Modern Pressure Transmitters Compensate for It
Pressure transmitters are expected to deliver reliable, accurate measurements year after year—even in harsh industrial environments. Yet over time, many instruments slowly deviate from their original calibration. This phenomenon, known as sensor drift, is unavoidable to some degree—but modern pressure transmitters are far better at detecting, correcting, and compensating for it than earlier generations.

Understanding why drift occurs—and how today’s transmitters fight it—can help reduce maintenance costs, prevent bad process decisions, and improve long-term system reliability.

What Is Sensor Drift?

Sensor drift is a gradual change in a pressure transmitter’s output that is not caused by an actual change in process pressure. It typically shows up as:
- Zero drift – output shifts when pressure is at zero
- Span drift – gain changes across the measurement range
- Non-linear drift – distortion at specific pressure points
Unlike sudden failure, drift is subtle—and dangerous precisely because it often goes unnoticed.

Why Sensor Drift Happens
1. Mechanical Stress and Material Fatigue
Pressure sensors rely on diaphragms or sensing elements that flex under load. Repeated pressure cycling—especially near the upper range—causes microscopic mechanical changes over time.

Common contributors
- High cycle counts
- Pressure spikes or pulsation
- Operation near maximum rated pressure
1. Temperature Effects
Temperature is one of the largest drivers of drift.
- Sensor materials expand and contract
- Electronics change characteristics with heat
- Outdoor or process-adjacent installations see wide swings
Without compensation, even a stable pressure can appear to “move” as ambient or process temperature changes.
1. Aging of Electronic Components
Resistors, amplifiers, and reference elements naturally drift as they age. This is especially true in older analog designs with limited self-correction capability.
1. Process and Environmental Exposure
Harsh environments accelerate drift:
- Corrosive or dirty process media
- Moisture ingress
- Vibration and mechanical shock
- EMI and electrical noise
Even a well-designed sensor will drift faster if its environment is hostile.
1. Installation and Mounting Stress
Improper mounting can introduce mechanical strain into the sensor body, subtly biasing the measurement.

Examples include:
- Over-tightened fittings
- Misaligned impulse lines
- Pipe stress transferred into the transmitter housing
How Modern Pressure Transmitters Compensate for Drift

The good news: modern pressure transmitters are designed with drift in mind—and actively work to minimize its impact.
1. Digital Temperature Compensation
Modern transmitters use embedded microprocessors to apply real-time temperature correction.

How it works
- Factory calibration across multiple temperature points
- Internal temperature sensors track real conditions
- Algorithms dynamically adjust the pressure signal
This dramatically reduces both zero and span drift caused by temperature variation.
1. Advanced Sensor Materials and Construction
Newer sensing elements are built from materials with:
- Lower hysteresis
- Improved elastic stability
- Better resistance to fatigue
Techniques such as laser-welded diaphragms and monolithic sensor designs reduce long-term mechanical drift.
1. Digital Signal Processing (DSP)
Instead of raw analog outputs, modern transmitters digitize the sensor signal early and apply filtering and correction digitally.

Benefits
- Reduced noise and EMI sensitivity
- Stable long-term gain characteristics
- Improved repeatability over time
1. Auto-Zero and Self-Diagnostics
Many smart transmitters continuously monitor their own behavior.

They can:
- Detect abnormal offset changes
- Flag drift beyond acceptable limits
- Alert operators before accuracy degrades significantly
Some systems even support in-situ zero trimming without removing the transmitter from service.
1. Long-Term Stability Specifications
Modern datasheets increasingly focus on long-term stability (e.g., ±0.1% URL over 5 or 10 years) rather than just initial accuracy.

This reflects real-world performance—not just lab conditions on day one.

Drift vs. Accuracy: A Common Misconception

A transmitter can be highly accurate when calibrated but still drift significantly over time. The most valuable instruments combine:
- High initial accuracy
- Excellent long-term stability
- Robust compensation algorithms
It’s stability—not just accuracy—that determines recalibration intervals and lifecycle cost.

Practical Ways to Minimize Drift in the Field
- Select transmitters with strong long-term stability specs
- Avoid operating continuously at maximum pressure
- Install with proper mechanical support and alignment
- Protect transmitters from extreme temperature swings
- Leverage diagnostics and calibration alerts
The Bottom Line

Sensor drift is inevitable—but unmanaged drift is optional.

Modern pressure transmitters use digital compensation, smarter electronics, and improved materials to dramatically reduce drift and extend calibration intervals. The result is more reliable data, fewer maintenance interventions, and better process control over the life of the instrument.
March 4, 2026

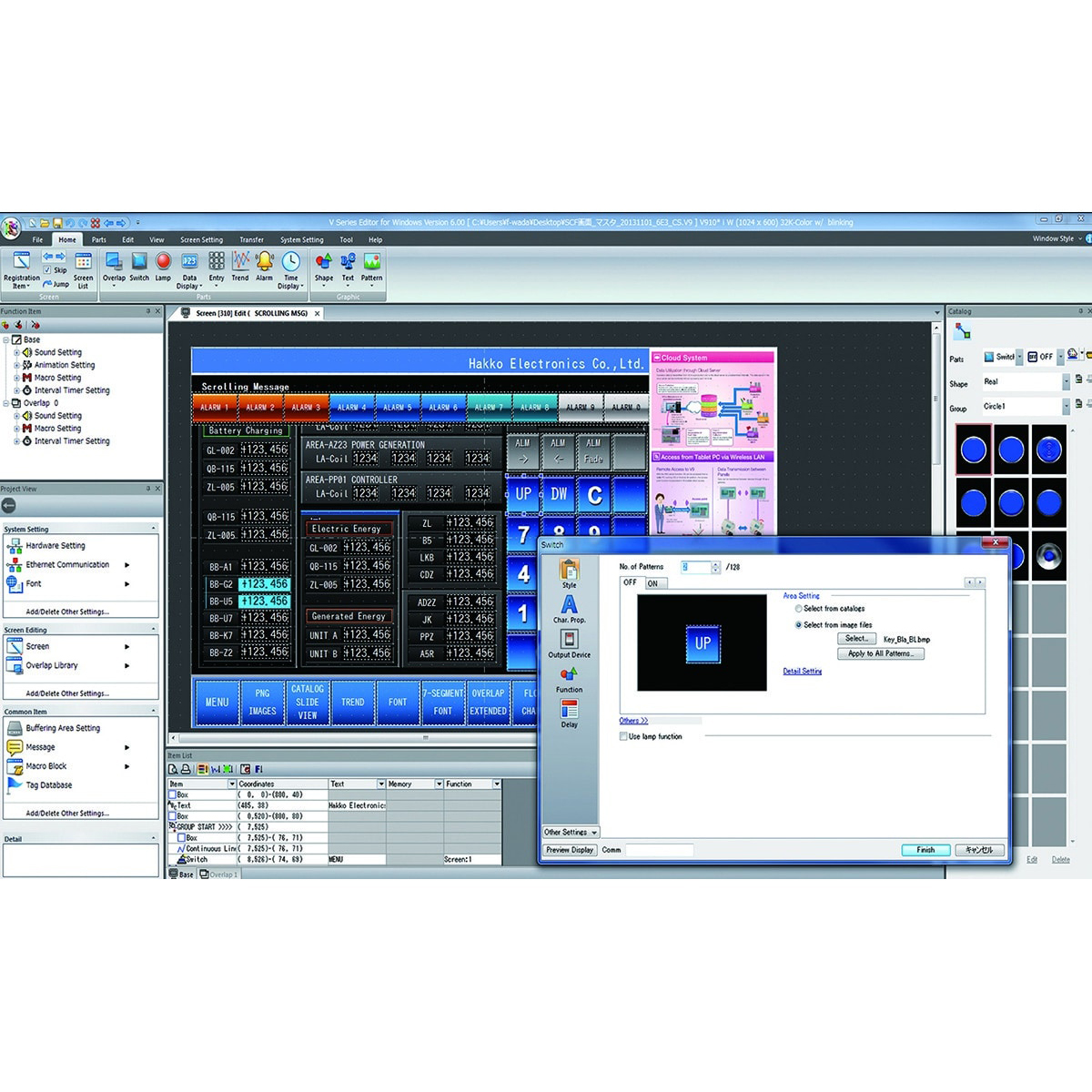

Understanding Tags, Data Mapping, and Variables in HMI Design
A well-designed HMI doesn’t just look good—it communicates clearly, responds instantly, and reflects what’s really happening in the process. At the heart of all of that are tags, data mapping, and variables.

These three concepts form the data backbone of any HMI system. When they’re designed thoughtfully, your HMI is fast, reliable, and easy to maintain. When they’re not, you get sluggish screens, broken animations, and operators who don’t trust what they’re seeing.

Let’s break them down.

What Is a Tag in an HMI?

A tag is a named reference to a piece of data that the HMI reads from or writes to a controller, device, or internal memory location.

Think of a tag as:

A label that connects the HMI to a real-world value

Common tag types
- Motor status (Run / Stop)
- Pressure, temperature, flow values
- Setpoints
- Alarms and fault codes
- Operator commands (Start, Reset, Acknowledge)
A good tag name is descriptive, consistent, and readable—because humans will maintain this system long after it’s deployed.

Variables vs. Tags: What’s the Difference?

This is where many new HMI designers get tripped up.

Tags
- Linked to external data sources
- Represent real process values
- Update through communications (Ethernet/IP, Modbus, PROFINET, etc.)
Variables
- Exist inside the HMI only
- Used for logic, math, animation, or temporary values
- Not directly tied to a PLC unless you map them
When to use variables
- Screen navigation logic
- Animation scaling
- Runtime calculations (averages, conversions)
- User interface state tracking
Rule of thumb:

If the value must survive a power cycle or affect the process, it belongs in the PLC (tag).

If it’s purely visual or temporary, keep it in the HMI (variable).

What Is Data Mapping?

Data mapping is the process of linking an HMI tag to its actual data source.

That source could be:
- A PLC register
- A drive parameter
- An I/O point
- Another controller
- An internal HMI variable
If the mapping is wrong—even by one address—the HMI may:
- Display incorrect values
- Fail to update
- Write data to the wrong device (worst case)
One-to-One vs. Indirect Mapping

One-to-one mapping
- Each tag maps directly to one PLC address
- Simple, clear, easy to troubleshoot
- Preferred for most systems
Indirect (indexed) mapping
- Tag address changes dynamically using an index or pointer
- Reduces tag count
- Increases complexity and risk
Indirect mapping is powerful—but best reserved for advanced applications with strong documentation.

Why Good Tag Design Matters

Poor tag design leads to:
- Slow screen refresh
- Communication overload
- Difficult troubleshooting
- Risky future expansions
Good tag design enables:
- Faster development
- Easier maintenance
- Better alarm handling
- Cleaner screen logic
Best Practices for HMI Tags and Variables
1. Use Consistent Naming Conventions
2. Avoid Duplicating Logic
- Don’t recreate PLC logic in the HMI
- Let the PLC control the process
- Let the HMI visualize and command
1. Limit High-Speed Polling
- Only update fast-changing tags when needed
- Group tags by update rate (fast, normal, slow)
1. Separate Process Data from UI Logic
- Process values → PLC tags
- Screen states, animations → HMI variables
1. Document Everything
Good documentation beats clever shortcuts every time.

Tags, Alarms, and Performance

Every tag consumes:
- Network bandwidth
- PLC scan time
- HMI processing power
Well-structured tag databases:
- Reduce network traffic
- Improve alarm response
- Keep screens responsive
This becomes critical in systems with:
- Hundreds of alarms
- Multiple HMIs
- Remote connections
Common HMI Data Design Mistakes
- Using the HMI as a “soft PLC”
- Poor or cryptic tag names
- Mapping unused tags
- Mixing UI logic and process control
- Ignoring update rates
These issues don’t always show up during commissioning—but they surface later during troubleshooting or expansion.

The Bottom Line

In HMI design:
- Tags connect your screens to the real world
- Data mapping ensures those connections are accurate
- Variables handle internal logic and visualization
Mastering these fundamentals leads to HMIs that are faster, clearer, and far easier to maintain—long after the original designer has moved on.
March 4, 2026
