A Variable Frequency Drive (VFD), also known as a Variable Speed Drive (VSD) or Adjustable Frequency Drive (AFD), is an electrical device used to control the speed and torque of an electric motor. It does this by varying the frequency and voltage supplied to the motor, which in turn adjusts the motor’s rotational speed. VFDs are commonly used in industrial and commercial applications where precise control of motor speed is required. Here’s how they work and some of their key features:

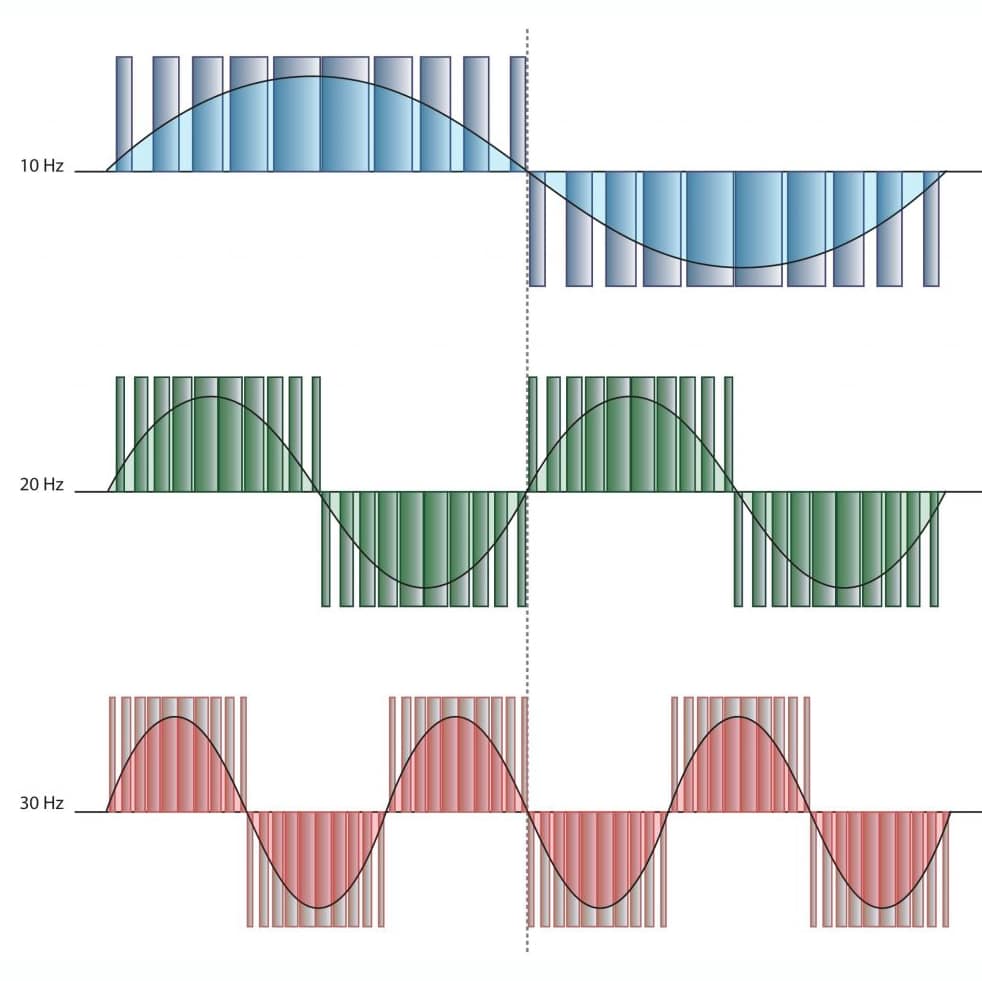

- Frequency and Voltage Control: VFDs control the frequency and voltage supplied to an AC (Alternating Current) motor. By varying these parameters, they can increase or decrease the motor’s speed and torque. This allows for precise control of the motor’s performance.
- Energy Efficiency: One of the primary benefits of using VFDs is energy savings. They can significantly reduce energy consumption by matching the motor’s speed to the actual requirements of the load. When a motor operates at full speed all the time, it often uses more energy than necessary. VFDs enable motors to run at lower speeds when the load is light, saving electricity.
- Soft Start and Stop: VFDs can provide a soft start and stop for motors. This gradual acceleration and deceleration help reduce mechanical stress on equipment and improve the lifespan of the motor and connected machinery.
- Precise Control: VFDs offer precise control over motor speed. This is crucial in applications where speed and torque must be adjusted for specific processes, such as conveyor systems, pumps, fans, and compressors.
- Dynamic Braking: Some VFDs can perform dynamic braking, which converts excess kinetic energy into electrical energy, dissipated as heat. This feature can help stop a motor quickly and safely.
- Motor Protection: VFDs often include built-in protection features, such as overload protection, overvoltage protection, and under-voltage protection, which help prevent damage to the motor and connected equipment.
- Reduced Wear and Tear: By avoiding sudden starts and stops, VFDs reduce the mechanical wear and tear on motors and associated machinery. This extends the lifespan of these components and reduces maintenance costs.
Remote Control and Monitoring: Many VFDs can be controlled remotely and integrated into automation systems, allowing for centralized monitoring and control of multiple motors and processes. VFDs are widely used in various industries, including manufacturing, HVAC (Heating, Ventilation, and Air Conditioning), water and wastewater treatment, and transportation, among others. They offer a cost-effective way to improve energy efficiency, process control, and equipment reliability.
