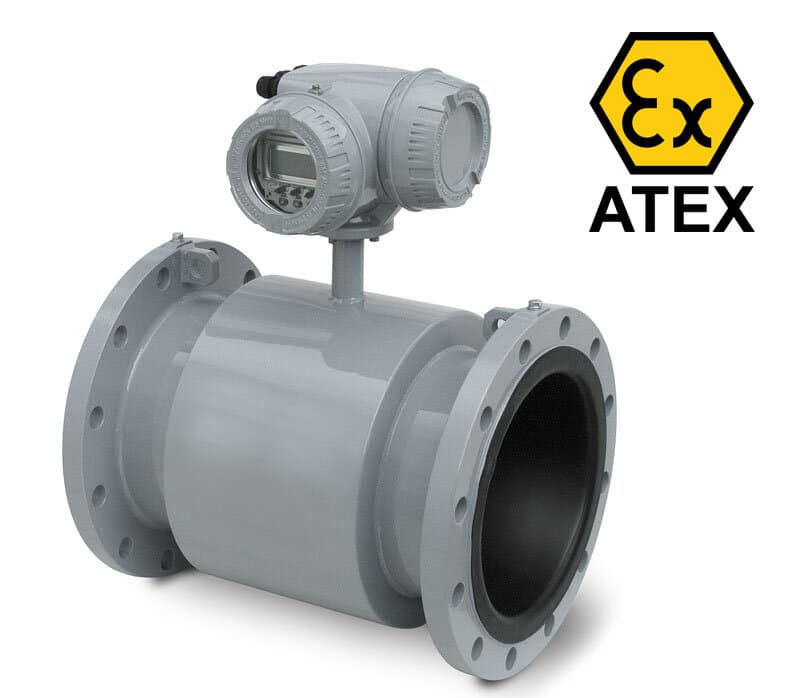

Electromagnetic Flowmeter MAGNETOFLOW™ M3000/4000
The amplifier with modular design allows flow measurements, in either the mounted or remote version in classified hazardous area (eg. zone 1 and 2). The amplifier housing, made of powdercoated aluminium, is available in protection class IP67 and with a separate connection space. Programming can be done either with closed housing thanks to a magnetic pen or with open housing via three buttons. The four-line display shows all necessary data like actual flow, totalizer and status messages.
The programmable excitation frequency even enables the amplifier to be adjusted for difficult metering applications. The newly developed process for amplifier compensation enables a high accuracy, especially in the lower flow range. The M3000/M4000 is especially suited for flow measurements in chemical and pharmaceutical industries, as well as water and waste water plants with explosion-proof zones.
Features
- Flanged process connections
- Accuracy : ±0,2 % of actual flow
- Flow range : 0,03 – 12 m/s
- Protection class IP67
- Ex-proof
- DN 6 – 600 (1/4“- 56“)
Technical data
| Power supply | 85 – 265 VAC, 45 – 65 Hz < 20 VA, optional 24 VDC |
|---|---|
| Accuracy | +/- 0,2% of actual flow, >= 0,5 m/s +/- 1,25 mm/s of actual flow,<0,5 m/s |
| Repeatability | <0,1% of full scale |
| Flow range | 0,03 – 12 m/s |
| Conductivity | min. 5 µS/cm |
| Flow direction | bi-directional |
| Display | LCD, 4 lines / 16 characters, backlit, actual flow, 3 totalizers, status display |
| Programming | 3 buttons or via magnetic pen |
| Interface | RS232 for measuring values and programming |
| Analog output | 0/4- 20 mA <=750 ohms, flow direction is displayed upon a separate status output |
| Pulse output | active / passive selectable, 2 open collectors and 2 solid state relays Open collector: active 18 VDC, 25 mA, passive 24 VDC, 20 mA (max. 0,5 W) |
| Frequency output | max. 10 kHz (open collector) |
| Status output | min./max. alarm, preselction, flow direction, error message, free configurable |
| Empty pipe detection | separate electrode |
| Low flow cutt off | 0-10% |
| Housing | Powder coated aluminium die cast |
| Protection class | IP67 |
| Cable insertion | 3 x M 20 |
| Ambient temperature | -20 up to +60°C |
| Ex proof version | M3000 : FM/CSA class I, div. 2 / zone 2 ATEX II 3 G Ex nA ia IIC T3 Ta = -20°C to +50°C, IP66 (Flowmeter) ATEX II 3 G Ex nA [ia] IIC T3 Ta = -20°C to +50°C, IP66 (converter only)M4000 : FM/CSA class I, div. 1 / zone 1 ATEX II 2 G Ex d e ia IIC T3 Ta = -20°C to +50°C, IP66 (Flometer) ATEX II 2 G Ex d [ia] IIC T4 Ta = -20°C to +50°C, IP66 (converter only) |
Flange process connection for hazardous area Type V
Size : DN 6 to 600 (M3000) or DN 6 to 300 (M4000)
Nominal pressure : PN 10 PN 100
Linear materials
| Type | Diameter | Fluid temperature |
|---|---|---|
| Neoprene | DN 25 to 600 | 0 to 80°C |
| Hard rubber | DN 25 to 600 | 0 to 80°C |
| PFA | DN 6 to 10 | -40 to +150°C |
| PTFE | DN 15 to 200 | -40 to +150°C |
| Halar | DN 300 to 600 | -40 to +150°C |
Electrodes material : Hastelloy C (Standard), Tantal, Platinum / Gold plated, Platinum / Rhodium,
Flange connections DIN, ANSI, JIS, AWWA, etc
Dimension according to ISO 13359,
Empty pipe electrode as Standard,
Ground electrode in the same material than the measurement electrode
Ground ring in option
IP67 or IP68 protection in option.
