General-Purpose Inverters

General-purpose inverters are power conversion equipment that performs the variable-speed operation of motors in products such as belt conveyors, fans and pumps. They have been advanced with higher precision and function enhancement through vector control, and with smaller equipment sizes and lower costs. This page provides information on Fuji Electric semiconductors that are ideal for general-purpose inverters.

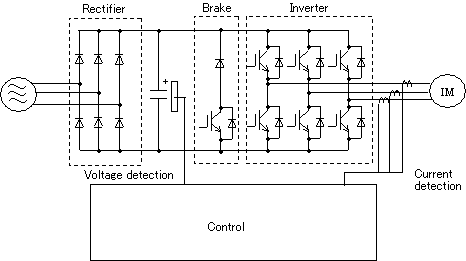

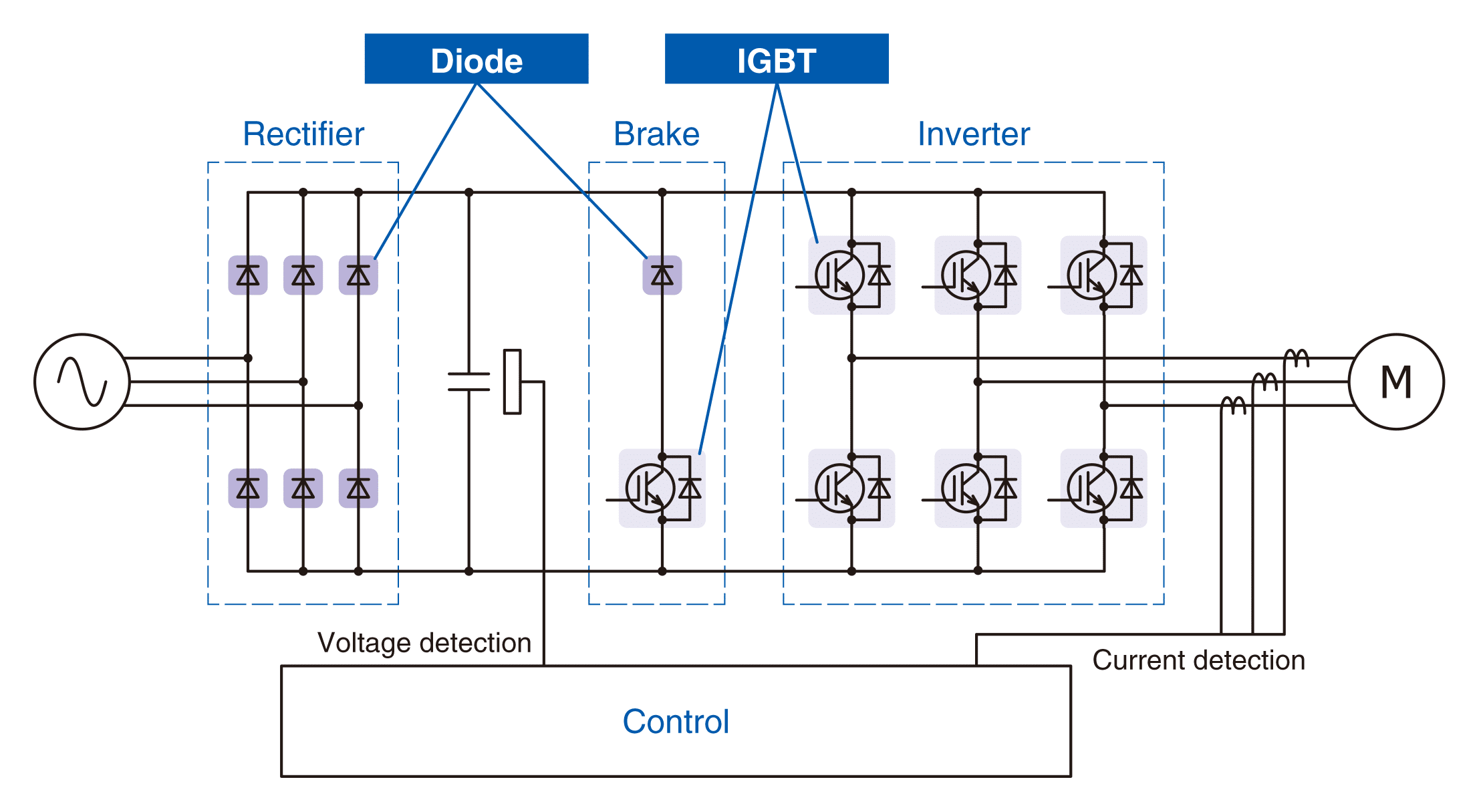

Circuit Configuration of General-Purpose Inverters

Recommended Devices for General-Purpose Inverter

Please select a device that corresponds to the input voltage in your area of usage.
A list will be displayed of IGBT module models suitable for use with general-purpose inverters.
Refer to the product data sheet of each model type.

IGBT Module 600V Device Suitable for General-Purpose Inverters

Inverters Inverters IGBT Modules IGBT Model type
Rated capacity Output current Device rating V Series X Series
kVA Arms PIM 6-pack 2-pack x 3p PIM 2-pack x 3p
1.7 5 600V/10A
or
650V/10A
7MBR10VKC060-50
7MBR10VKA060-50
7MBR10XKC065-50
7MBR10XKA065-50
2.4 7 600V/15A
or
650V/15A
7MBR15VKC060-50
7MBR15VKA060-50
7MBR15XKC065-50
7MBR15XKA065-50
3.5 10 600V/20A
or
650V/20A
7MBR20VKC060-50
7MBR20VKA060-50
7MBR20XKC065-50
7MBR20XKA065-50
4.8 14 600V/30A
or
650V/30A
7MBR30VKC060-50
7MBR30VKA060-50
7MBR30XKC065-50
7MBR30XKA065-50
7.8 23 600V/50A
or
650V/50A
7MBR50VKD060-50
7MBR50VKB060-50
7MBR50VP060-50
7MBR50VY060-50
7MBR50VA060-50
6MBI50VA-060-50
6MBI50VW-060-50
7MBR50XKB065-50
7MBR50XKD065-50
7MBR50XPA065-50
7MBR50XYA065-50
7MBR50XMA065-50
7MBR50XWA065-50
11 33 600V/75A
or
650V/75A
7MBR75VB060-50
7MBR75VP060-50
7MBR75VY060-50
6MBI75VA-060-50
6MBI75VW-060-50
7MBR75XMA065-50
7MBR75XNA065-50
7MBR75XPA065-50
7MBR75XWA065-50
7MBR75XXA065-50
7MBR75XYA065-50
14 41 600V/100A
or
650V/100A
7MBR100VP060-50
7MBR100VB060-50
6MBI100VA-060-50
6MBI100VW-060-50
2MBI100VA-060-50 7MBR100XNA065-50
7MBR100XPE065-50
7MBR100XRA065-50
7MBR100XXA065-50
7MBR100XYE065-50
7MBR100XZA065-50
20 57 600V/150A
or
650V/150A
7MBR150VR060-50
7MBR150VZ060-50
6MBI150VB-060-50
6MBI150VX-060-50
2MBI150VA-060-50 7MBR150XRA065-50
7MBR150XRE065-50
7MBR150XXA065-50
7MBR150XZA065-50
2MBI150XAA065-50
26 76 600V/200A
or
650V/200A
2MBI200VA-060-50 2MBI200XAA065-50
52 150 600V/300A
or
650V/300A
2MBI300VB-060-50 2MBI300XBE065-50
73 212 600V/400A
or
650V/400A
2MBI400VB-060-50
2MBI400VD-060-50
2MBI400XBE065-50
2MBI400XDE065-50
109 315 600V/600A
or
650V/600A
2MBI600VD-060-50
2MBI600VE-060-50
2MBI600XDE065-50
2MBI600XEE065-50

IGBT Module 1200V Device Suitable for General-Purpose Inverters

Inverters Inverters IGBT Modules IGBT Model type
Rated capacity Output current Device rating V Series X Series
kVA Arms PIM 6-pack 2-pack x 3p PIM 6-pack 2-pack x 3p
3.9 5.6 1200V/10A 7MBR10VKC120-50
7MBR10VKA120-50
7MBR10XKC120-50
7MBR10XKA120-50
5.0 7.2 1200V/15A 7MBR15VKC120-50
7MBR15VKD120-50
7MBR15VKA120-50
7MBR15VKB120-50
7MBR15XKC120-50
7MBR15XKD120-50
7MBR15XKA120-50
7MBR15XKB120-50
6.4 9.3 1200V/25A 7MBR25VKD120-50
7MBR25VKB120-50
7MBR25VP120-50
7MBR25VA120-50
7MBR25VW120-50
7MBR25VY120-50
7MBR25XKD120-50
7MBR25XKB120-50
9.0 13 1200V/35A 7MBR35VKD120-50
7MBR35VKB120-50
7MBR35VP120-50
7MBR35VM120-50
7MBR35VB120-50
7MBR35VW120-50
7MBR35VY120-50
7MBR35XKD120-50
7MBR35XKB120-50
7MBR35XPA120-50
7MBR35XMA120-50
7MBR35XWA120-50
7MBR35XYA120-50
11 16.5 1200V/50A 7MBR50VB120-50
7MBR50VM120-50
7MBR50VN120-50
7MBR50VP120-50
7MBR50VR120-50
7MBR50VW120-50
7MBR50VX120-50
7MBR50VY120-50
7MBR50VZ120-50
6MBI50VA-120-50
6MBI50VW-120-50
7MBR50XMA120-50
7MBR50XPA120-50
7MBR50XPE120-50
7MBR50XRKB120-50
7MBR50XRKD120-50
7MBR50XWA120-50
7MBR50XYA120-50
22 32 1200V/75A 7MBR75VR120-50
7MBR75VB120-50
7MBR75VN120-50
7MBR75VX120-50
7MBR75VZ120-50
6MBI75VA-120-50
6MBI75VW-120-50
2MBI75VA-120-50 7MBR75XRA120-50
7MBR75XRE120-50
7MBR75XPE120-50
7MBR75XNA120-50
7MBR75XME120-50
7MBR75XXA120-50
7MBR75XYE120-50
32 46 1200V/100A 7MBR100VR120-50
7MBR100VN120-50
7MBR100VX120-50
7MBR100VZ120-50
6MBI100VA-120-50
6MBI100VB-120-50
6MBI100VW-120-50
6MBI100VX-120-50
2MBI100VA-120-50 7MBR100XRA120-50
7MBR100XRE120-50
7MBR100XNA120-50
7MBR100XXA120-50
7MBR100XZA120-50
6MBI100XAE120-50
6MBI100XBA120-50
6MBI100XXA120-50
2MBI100XAA120-50
52 75 1200V/150A
or
1200V/180A
7MBR150VR120-50
7MBR150VN120-50
7MBR150VX120-50
7MBR150VZ120-50
6MBI150VB-120-50
6MBI150VX-120-50
6MBI180VB-120-50
6MBI180VX-120-50
6MBI180VX-120-55
2MBI150VA-120-50
2MBI150VB-120-50
7MBR150XRE120-50
7MBR150XNE120-50
7MBR150XXE120-50
7MBR150XZE120-50
6MBI150XBA120-50
6MBI150XXA120-50
2MBI150XAA120-50
61 88 1200V/200A 2MBI200VB-120-50
2MBI200VH-120-50
6MBI200XBA120-50
6MBI200XBE120-50
6MBI200XXA120-50
6MBI200XXE120-50
2MBI200XAA120-50
73 106 1200V/300A 2MBI300VD-120-50
2MBI300VH-120-50
2MBI300VE-120-50
2MBI300XBE120-50
2MBI300XHA120-50
100 145 1200V/400A
or
1200V/450A
2MBI450VH-120-50
2MBI450VE-120-50
2MBI450VN-120-50
2MBI450VX-120-50
2MBI400XDE120-50
2MBI450XEE120-50
2MBI450XHA120-50
2MBI450XNA120-50
2MBI450XNB120-50
215 310 1200V/600A 2MBI600VE-120-50 2MBI600XDE120-50
2MBI600XHA120-50
2MBI600XEE120-50

IGBT Module 1700V Device Suitable for General-Purpose Inverters

Inverters Inverters IGBT Modules IGBT Model type
Rated capacity Output current Device rating V Series X Series
kVA Arms PIM 2-pack x 3 2-pack x 3p
41 34 1700V/75A 2MBI75VA-170-50 2MBI75XAA170-50
51 43 1700V/100A 6MBI100VX-170-50 2MBI100VA-170-50 2MBI100XAA170-50
63 53 1700V/150A 2MBI150VH-170-50 2MBI150XHA170-50
2MBI150XAA170-50
79 66 1700V/200A 2MBI200VH-170-50 2MBI200XHA170-50
88 74 1700V/225A 2MBI225VX-170-50
125 105 1700V/300A 2MBI300VH-170-50
2MBI300VX-170-50
2MBI300XHA170-50
221 185 1700V/300A 2MBI300VE-170-50 2MBI300XEE170-50
269 225 1700V/400A 2MBI400VE-170-50 2MBI400XEE170-50
2MBI400XHA170-50
