Welding Machines

Welding machines melt and integrate two or more metallic members by applying heat or pressure.Welding machines are used in applications such as automobile body welding and spot welding, where a bond is created by crimping metal and feeding an electric current through it so that the metal melts and joins due to the resistance heat.

Circuit Example

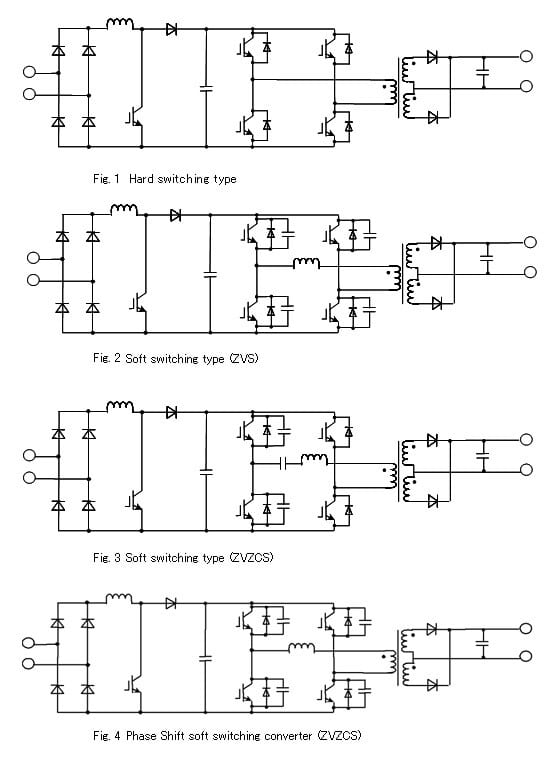

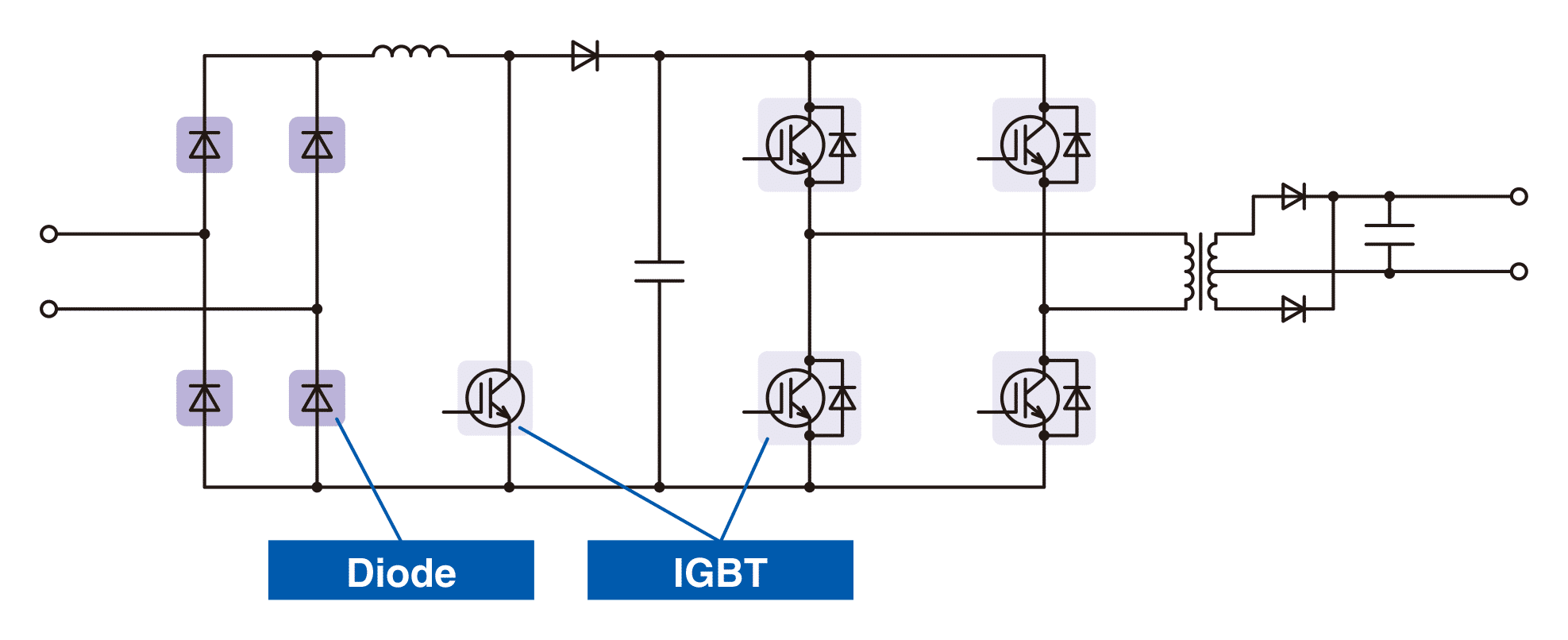

Hard switching type

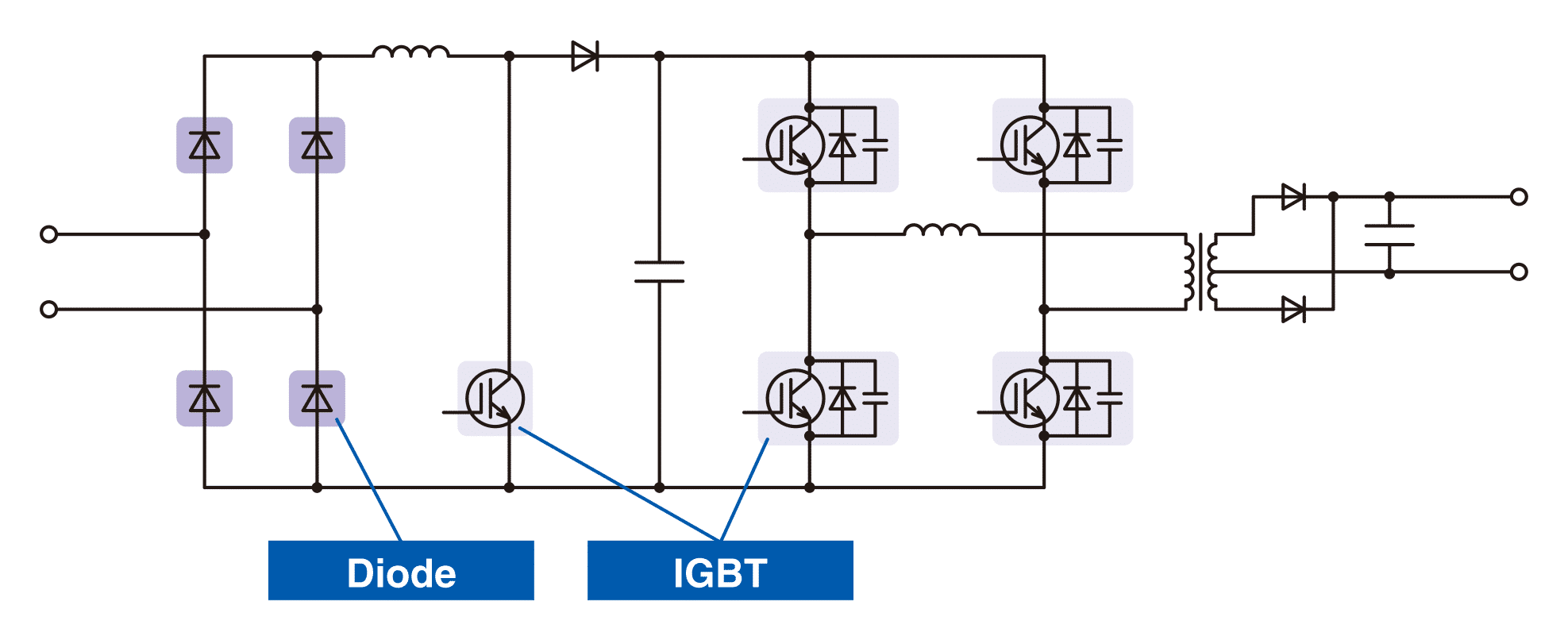

Soft switching type (ZVS)

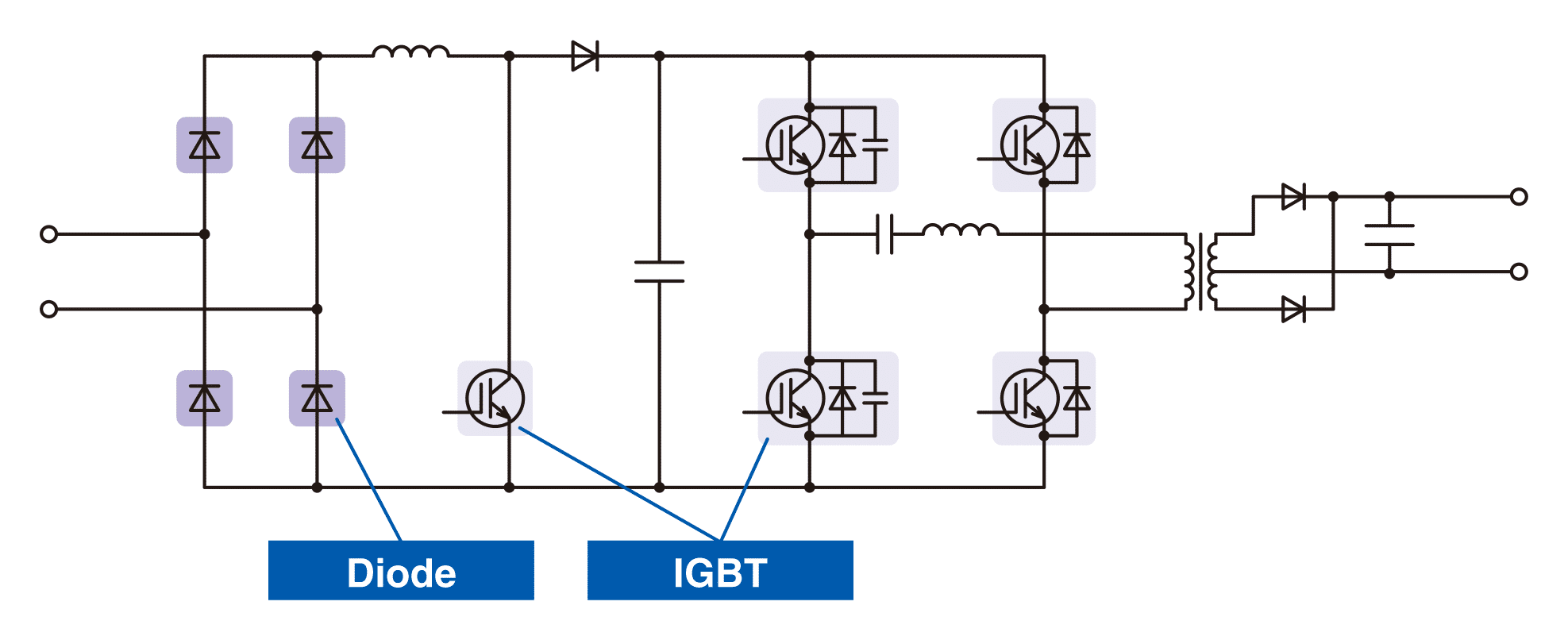

Soft switching type (ZVZCS)

Phase Shift soft switching converter (ZVZCS)

Boost Chopper Circuit

Ic [A] IGBT Modules
200 1MBI200HH-120L-50
300 1MBI300HH-120L-50
400 1MBI400HH-120L-50

Half-Bridge Circuit

Ic [A] IGBT Modules Application Example
100 2MBI100HB-120-50 Fig. 1 – Fig. 3
100 2MBI100HJ-120-50 Fig. 4
150 2MBI150HH-120-50 Fig. 1 – Fig. 3
150 2MBI150HJ-120-50 Fig. 4
200 2MBI200HH-120-50 Fig. 1 – Fig. 3
200 2MBI200HJ-120-50 Fig. 4
300 2MBI300HJ-120-50 Fig. 4

Discrete IGBT
