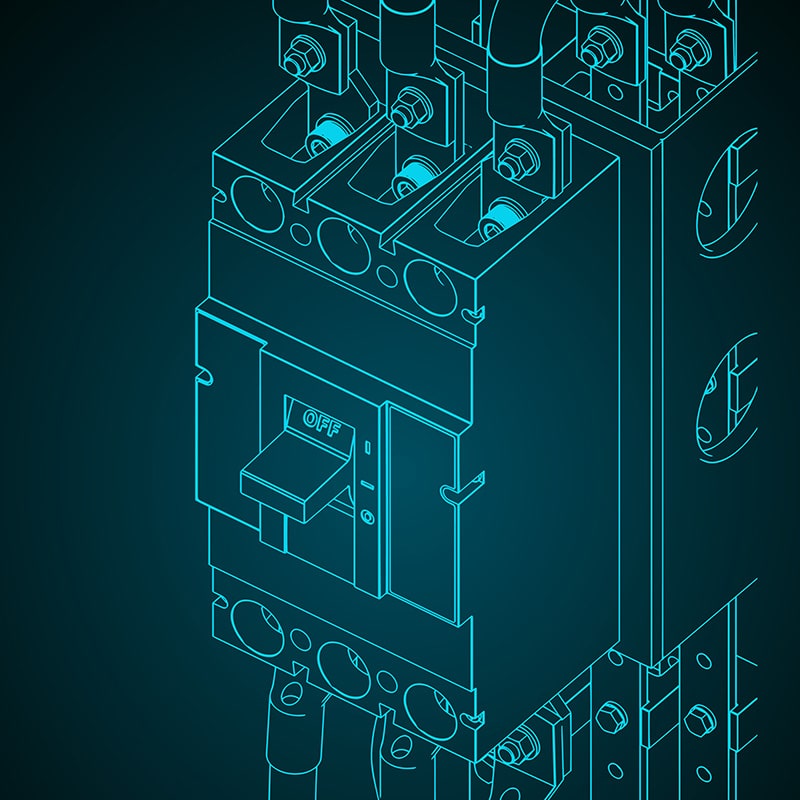

Molded Case Circuit Breakers (MCCBs) are a type of electrical protection device that is used to safeguard electrical circuits from damage caused by overcurrents or short circuits.
Their main characteristics include:
- Molded Case: As the name implies, MCCBs have a robust and insulated casing made from a mold. This case encloses and supports the breaker’s components and provides insulation to contain any electrical arcing.
- Trip Mechanism: MCCBs are equipped with a trip mechanism to automatically interrupt current flow in the case of an overcurrent or short circuit. This mechanism can be thermal, magnetic, or a combination of both (thermal-magnetic). The thermal part protects against long-term overcurrents, while the magnetic part responds to short-circuit or instantaneous high current conditions.
- Adjustable Trip Settings: Many MCCBs allow for the adjustment of their trip settings, enabling them to be customized according to the needs of the protected circuit.
- Rated Currents: MCCBs are available in a wide range of sizes and can handle higher current ratings compared to smaller devices like miniature circuit breakers (MCBs). This makes them suitable for larger commercial and industrial applications.
- Manual Control: They also provide a means for manual disconnection of the circuit, allowing for maintenance and testing.
- Reset Capability: Unlike fuses, which must be replaced after a fault, MCCBs can be reset after tripping, either manually or automatically.
MCCBs are widely used in various applications, from residential to commercial and industrial settings, to protect electrical circuits and prevent potential hazards like electrical fires or equipment damage.
