When selecting a manual motor starter for an industrial or commercial application, it’s important to consider several key characteristics to ensure the starter is well-suited for the specific motor and application.
Here are the primary factors to look at:
- Current Rating: The starter must be able to handle the motor’s full-load current. This is the primary factor in selecting a starter, as it must be capable of carrying the motor’s operational current without overheating.
- Overload Protection: Check that the starter includes overload protection features. Overload protection safeguards the motor against damage due to excessive current draw, typically caused by overloading or a stalled motor.
- Voltage Rating: Ensure the starter’s voltage rating matches the motor’s operating voltage. This includes considering both the control circuit voltage and the motor voltage.
- Short-Circuit Protection: Some manual motor starters come with integrated short-circuit protection, while others require external fuses or circuit breakers. Ensure the starter has adequate protection against short circuits.
- Phase Protection: In three-phase applications, protection against phase loss (single phasing) is important. Phase loss can cause motors to overheat and fail.
- Horsepower Rating: The starter should have a horsepower rating suitable for the motor. This is particularly important for larger motors.
- Enclosure Type: Consider the environment where the starter will be installed. Different types of enclosures are available for different conditions, such as waterproof or dustproof enclosures for harsh environments.

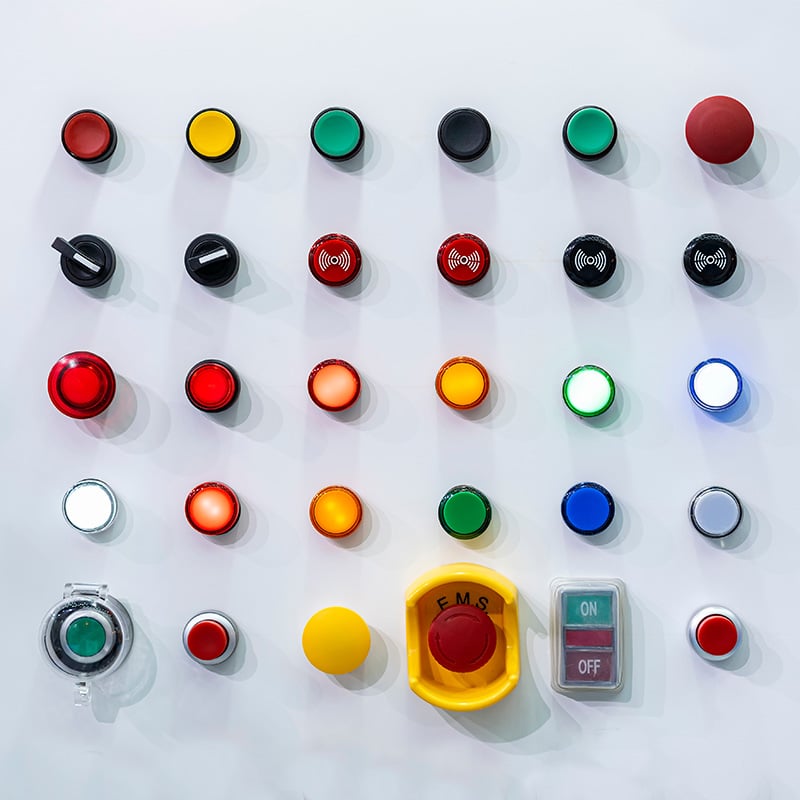

- Manual Control Features: The starter should have easy-to-use manual controls for starting and stopping the motor. This might include push buttons, toggle switches, or rotary switches.
- Reset Mechanism: Determine whether the starter has a manual or automatic reset feature for the overload protection. Manual reset mechanisms require someone to physically reset the starter, which can be safer in certain situations.
- Size and Mounting: Consider the physical size of the starter and the mounting options to ensure it fits in the designated space in your electrical panel or machinery.
- Auxiliary Contacts: Some applications may require auxiliary contacts for control or signaling purposes. Check if the starter provides this option.
- Thermal or Magnetic Operation: Understand whether the overload protection is thermal (based on heat generated by excess current) or magnetic (responding to sudden increases in current), as this can affect the response characteristics.
- Environmental Conditions: Consider the operating conditions, including temperature, humidity, vibration, and the presence of corrosive or explosive atmospheres.
- Ease of Maintenance: The starter should be easy to maintain, with readily accessible components for testing, adjustment, and replacement.
- Certifications and Compliance: Ensure the starter complies with relevant industry standards and certifications, especially those concerning safety and reliability.
Achieving reliable and safe operation, suitable for the specific requirements of your motor and application can be achieved by carefully considering these factors when selecting your manual motor starter.
