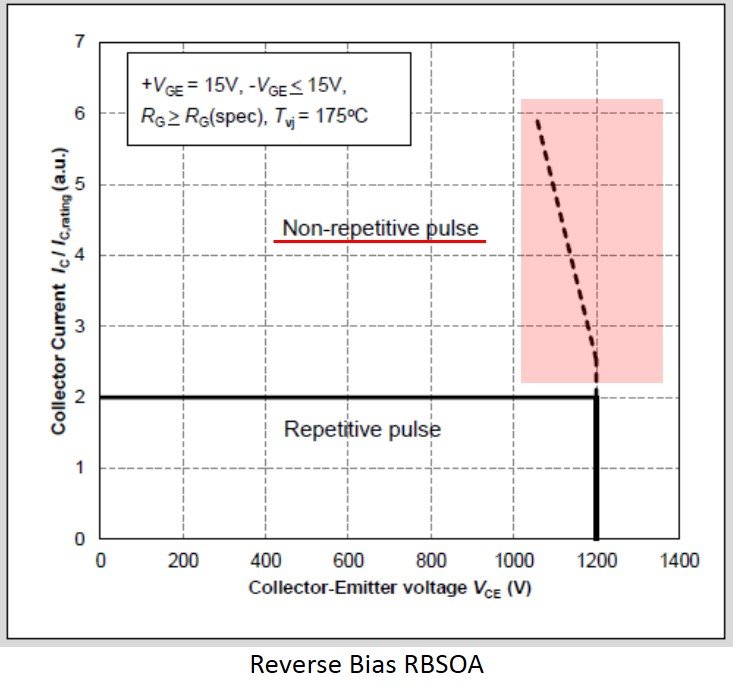

02-13-2019Comments Off on Why does the maximum voltage in the RBSOA (non-repetitive) graph drop when the current is increased?
If the turn-off breaking current increases, di/dt increases as well and is causing an induced electromotive force L·di/dt due to the internal inductance in the module L. Hence, high voltage will be applied to the IGBT chip and might cause some avalanche breakdown. Therefore maximum voltage needs to be reduced when the current increases.
Comments Off on If a pull-down resistor is attached to the temperature output terminal TEMP of small IPM, will the accuracy of the TEMP terminal output voltage change?
The accuracy does not change. The TEMP output voltage shows clamping characteristics at room temperature or below. Please attach a pull-down resistor, if linearity of the output voltage is required for temperatures below room temperature.
Comments Off on Once the protection function in Small IPM is triggered and the system stops, how can it be reseted: automatic reset or latch?
It will be reset automatically. After the alarm output period tFO elapsed and the cause of failure has been removed, the protection will reset automatically.
Comments Off on Does an alarm occur, if the PWM signal is not transmitted to the control input terminal (Vin: High Level) of the V series IPM?
Since the TjOH protection and the UVLO protection are independent from input signals, an alarm signal will be issued when overheat or power supply voltage drop occurs. For Short Circuit (SC) and Over Current (OC) protection will be activated when the input signal is IGBT ON (Vin: Low Level).
Comments Off on Which snubber capacitors are recommended for modules (M403, M404) used in a 3-level inverter?
There are several snubber capacitors with different withstand voltages and capacitances which meet the main terminal pitch. Please contact RUBYCON CORPORATION.
Comments Off on The alarm output terminal VFO of the small IPM goes to low level when an anomaly occurs within the IPM. What is the alarm output pulse width tFO?
The alarm output period tFO is minimum 20μs, but typical value is about 50μs. The typical value, however, is not guaranteed.
Comments Off on What do I have to take care of when using an IGBT module in a converter circuit?
If diode loss increases, check that the diode temperature does not exceed the absolute maximum ratings, and that ΔTvj power cycle capacity is satisfied. Also check that the system will not be broken due to inrush current at power-on or temporary interruption of power.
