Is there any way to simplify the design of the gate drive circuit for the IGBT module and furthermore, include the protection circuit?

-
| Booth:

Share

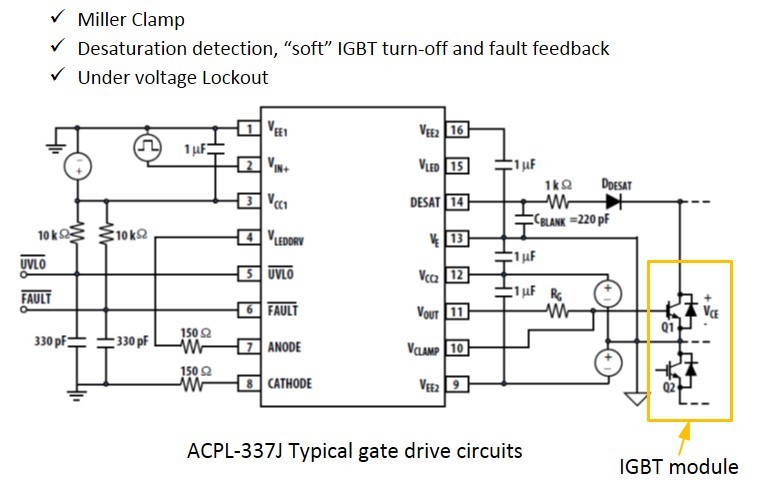

IGBT gate drive ICs are supplied from many companies including BROADCOM, Renesas Electronics, Texas Instruments, ISAHAYA ELECTRONICS and TOSHIBA. As the ICs contain short-circuit protection and voltage drop protection circuits within the chip, design of the drive circuit will be simplified. An IGBT module evaluation board with mounted drive IC is available. Please download the information and use it for your reference. However, Fuji Electric does not guarantee its characteristics when combined with an IGBT module.
